Blank flange
Features:
Size: From DN100 - DN1400
Material: Ductile iron
Pressure: From PN10 - PN40
We're here to help:
Easy ways to get the answers you need.
Parameter:

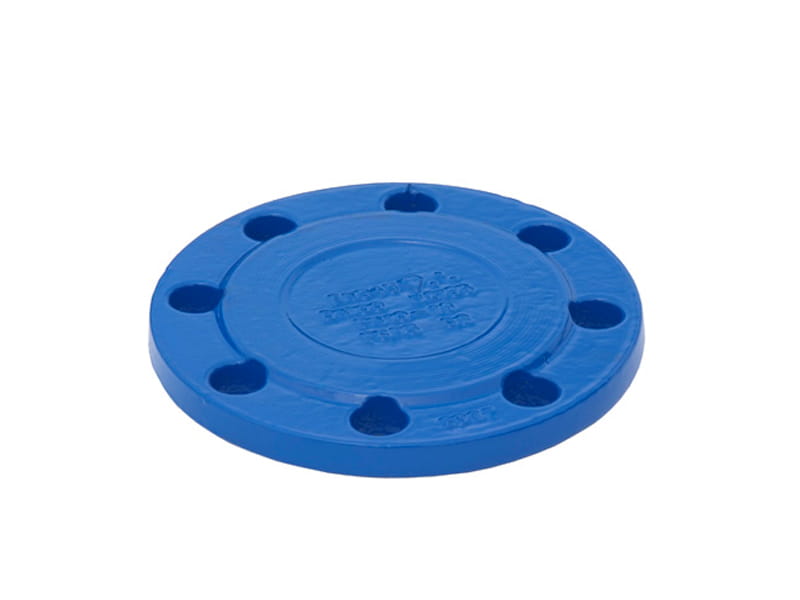

Ductile Iron blank flange for potable water (blue), also called a blind flange, to nominal bore of DN300. Our Ductile Iron blank flanges are suitable for potable water and are supplied with a blue epoxy coating in accordance with BS EN 545.
|
Material: |
Ductile Cast Iron GGG500-7 OR GGG450-12 |
|
Standard: |
ISO2531, BS EN545, EN598,EN12842 |
|
Pressure: |
PN10, PN16, PN25 |
|
Specification: |
DN50 to DN2000, K12/14 |
|
Joints type: |
Flange, Typon joint(push on joint); Bolted Gland K type Joint |
|
Application: |
Water supply project, drainage, sewerage, Irrigation ,water pipeline |
|
Surface Inside: |
Portland Cement mortar lining, bitumen paint, epoxy paint, powder |
|
Surface Outside: |
Epoxy paint, bitumen paint, epoxy powder coating |
|
Accessories: |
Gaskets, bolts and nuts available upon request |
|
Inspection: |
SGS, BV, or other third party inspection |
|
Sample: |
Sample for free, but buyer meed pay for the freight charge |
|
Payment: |
30% TT upon placing order and 70% TT when see copy of B/L |
|
Packing methods: |
Wooden case/pallet with plastic layer, or as per customer's requirements |
Standards&Features:
BSEN545
Case:
Material: Ductile iron
Pressure: From PN10 - PN40
Application:
