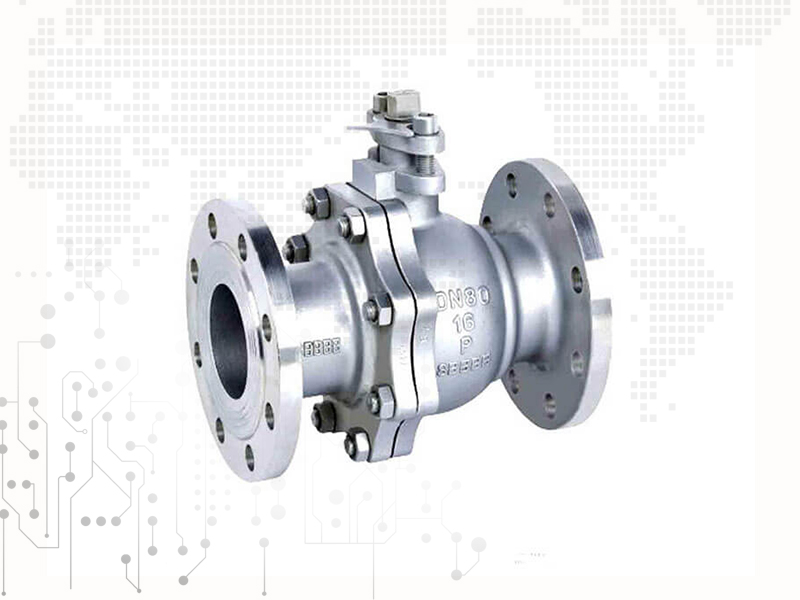

ANSI API Cast Steel And Stainless Steel Flange Ball valve
Features:
Type of products: Q41F-1150LB
DN: 15-250mm
PN: 1.0/1.6/2.5Mpa
Suitable temperature: -10℃-150℃
Suitable medium: water,oil,air
Material of body: cast steel/stainless steel
Connecting function: flange
We're here to help:
Easy ways to get the answers you need.
Parameter:

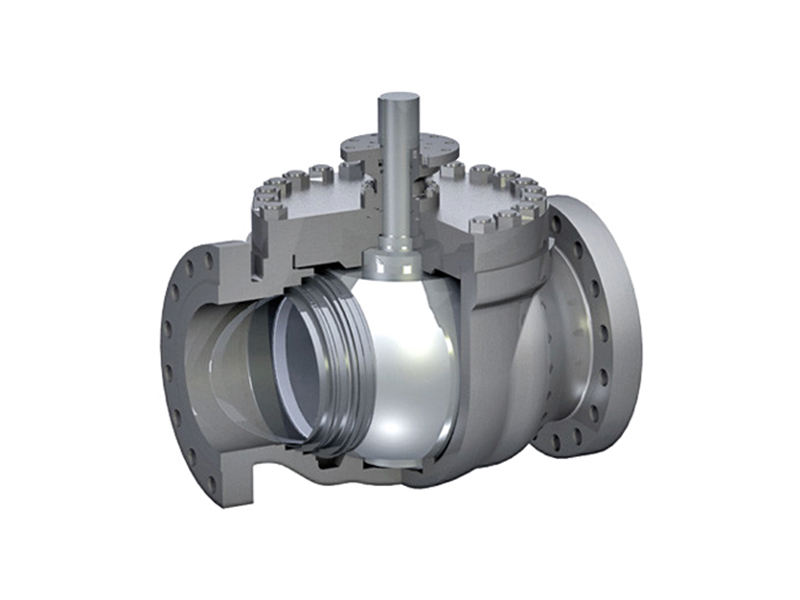

WESDOM BALL VALVES are reliable, offering floating type, trunnion mounted type, segment ball type, three-way and four-way type which can be applied in wide range of fields. There are also many kind of sealing material for client’s selection, like PTFE seat, metal seat and ceramics seat, etc.
| DN | 150Lb(PR)Convex flange ;RF | ||||||||
| mm | in | L | D | D1 | D2 | b | n-Φd | H | D0 |
| 15 | 1--2 | 108 | 89 | 60.5 | 35 | 10 | 4-Φ16 | 59 | 130 |
| 20 | 3--4 | 117 | 98 | 69.9 | 43 | 10.5 | 4-Φ16 | 63 | 130 |
| 25 | 1 | 127 | 108 | 79.2 | 51 | 11.5 | 4-Φ16 | 75 | 160 |
| 32 | 1 1/4 | 140 | 117 | 89 | 63 | 13 | 4-Φ16 | 95 | 160 |
| 40 | 1 1/2 | 165 | 127 | 98.6 | 73 | 14.5 | 4-Φ16 | 107 | 160 |
| 50 | 2 | 178 | 152 | 120.7 | 92 | 16 | 4-Φ19 | 155 | 200 |
| 65 | 2 1/2 | 190 | 178 | 139.7 | 105 | 18 | 4-Φ19 | 164 | 200 |
| 80 | 3 | 203 | 190 | 152.4 | 127 | 19.5 | 4-Φ19 | 182 | 200 |
| 100 | 4 | 229 | 229 | 190.5 | 157 | 24 | 8-Φ19 | 226 | 300 |
| 125 | 5 | 356 | 254 | 216 | 186 | 24 | 8-Φ22.5 | 230 | 300 |
| 150 | 6 | 394 | 279 | 241.3 | 216 | 25.4 | 8-Φ22.5 | 250 | 500 |
| 200 | 8 | 457 | 343 | 298.5 | 270 | 28.4 | 8-Φ22.5 | 280 | 500 |
| 250 | 10 | 533 | 406 | 362 | 324 | 30.2 | 12-Φ25.4 | 320 | 600 |
Standards&Features:
Body: A216WCB
Nuts: A194 2H
Bolts: A193 2B
Stem: A182-F304
Ball: A182-F304
Cover: A216WCB
Seat: PTFE
|
Type of ball valve |
Design and manufacture |
Face-to-face |
Size of flange |
Pressure-temperature |
Test |
|
Split flange ball valve |
API 608 |
ANSI B16.10 |
ANSI B16.5 |
ANSI B16.34 |
API 598 |
|
Fixed flange ball valve |
API 6D |
API 6D |
API 6D |
|
|
|
PN |
Sheell test |
Water seal test |
Air seal test |
|
|
|
Mpa |
LBf/in2 |
Mpa |
LBf/in2 |
Mpa |
LBf/in2 |
|
150 |
3 |
430 |
2.2 |
315 |
0.4-0.7 |
|
300 |
7.7 |
1110 |
5.7 |
815 |
|
|
600 |
15.3 |
2220 |
11.3 |
1630 |
|
Case:
1.Small fluid resistance.Ball valve has the smallest fluid resistance among all of the valves,even if the reduced ball valve.
2.Easier and convenient to be open and closed.Ball valve will be full open and full closed only if we turn the stem into 90°.
3.Good sealing.The o-ring of the ball valve’s seat is usually make up with PTFE.And the sealing force increases with the pressure increase.
4.Stem has good sealing.The stem only rotates around the stem when the ball valve is open or close,so the packing seal of the stem is hard to be destroyed.
5.Ball valve only turn 90°when it’s open or closed,so it’s easy to be achieved automation control and remote control.
6.Ball valves are usually glossy and smooth.It’s hard to deposit medium .
Application:
1.Medium’s piping such as SO2,vapour,air,coal gas,ammonia,CO2,oil,water,brine,lye,seawater,nitricacid,hydrochloric acid,sulphuric acid,phosphoric acid etc.
2.In industry of food,chemical industry, medicine,petrifaction and smelt etc.
