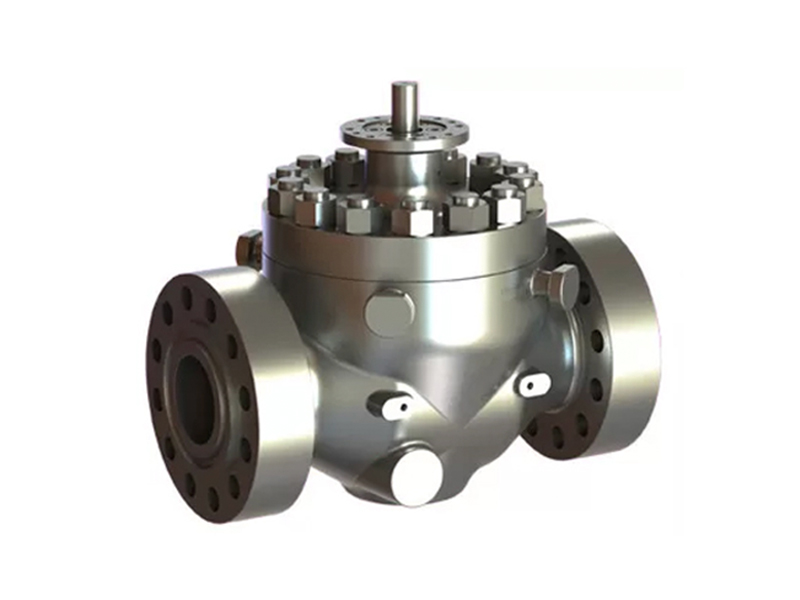

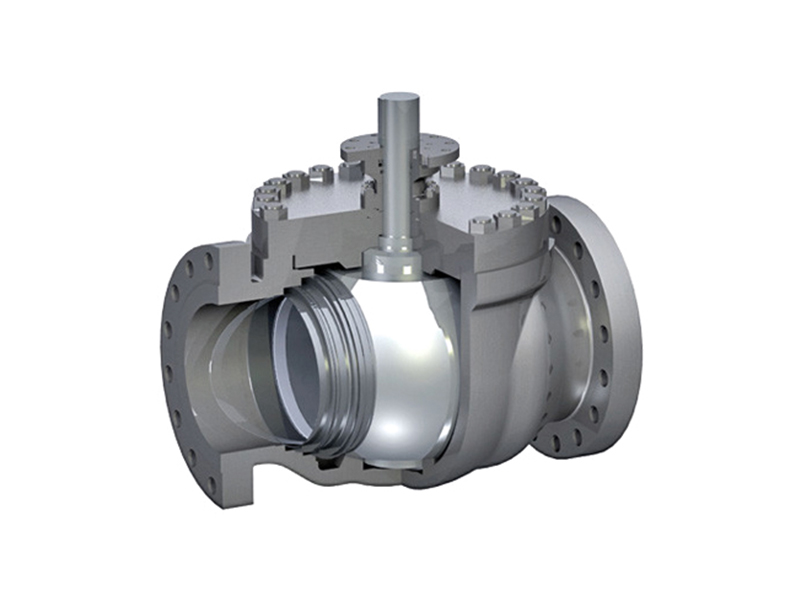

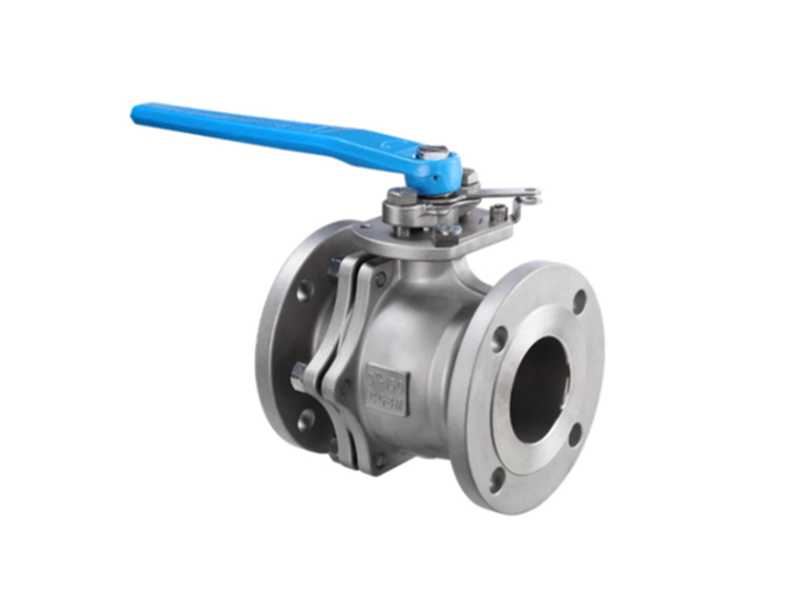

API Ball Valve
Features:
Size: 1/2”-24”
Pressure Rating: 150LB-600LB
Material: SS304, SS316
Design Standard: API6D,API608
Inspection Standard: API598
Application medium: water, oil, powder
Application Temperature: 0-300℃
We're here to help:
Easy ways to get the answers you need.
Parameter:
|
I Type |
NPS(in) |
1/2 |
3/4 |
1 |
11/2 | 2 丨 3 | 4 | 6 | 8 |
|||||
|
全通径 Full bore |
D(mm) |
13 |
19 |
25 |
38 |
51 |
64 |
76 |
102 |
203 |
|
|
L(mm) |
108 |
117 |
127 |
165 |
178 |
203 |
229 |
394 |
457 |
|
|
H(mm) |
61 |
66 |
76 |
95 |
142 |
156 |
181 |
270 |
345 |
|
|
Do(mm) |
130 |
130 |
160 |
230 |
400 |
400 |
700 |
300, |
300* |
|
缩径 Reduced bore |
NPS(in) |
3/4, 1/2 |
1*3/4 |
1«/2*1 |
2*H/2 |
3*2 |
4*3 |
6*4 |
8*6 |
10*8 |
|
|
L(mm) |
117 |
127 |
165 |
178 |
203 |
229 |
267 |
292 |
330 |
|
|
D(mm) |
19 |
25 |
38 |
63 |
76 |
102 |
152 |
203 |
254 |
|
|
H(mm) |
82 |
85 |
100 |
120 |
153 |
162 |
119 |
290 |
340 |
|
|
Do(mm) |
130 |
130 |
160 |
230 |
400 |
400 |
460 |
300* |
300* |
|
|
d(mm) |
13 |
19 |
25 |
51 |
63 |
76 |
105 |
152 |
203 |
Material
|
Material List |
||
|
No. I |
Parts |
Material |
|
1 |
Body |
ASTM A216Gr.WCB |
|
2 |
Seat Seal |
PTFE |
|
3 |
Ball |
304S.S. |
|
4 |
Stem |
ASTMA182F6a |
|
5 |
Gasket |
PTFE |
|
8 |
Packing |
PTFE |
|
12 |
Lever |
ASTMA216Gr.WCB |
|
16 |
Bonnet |
ASTMA216Gr.WCB |
|
17 |
Stud |
ASTMA193Gr.B7 |
Standards&Features:
Product details
WESDOM BALL VALVES are reliable, offering floating type, trunnion mounted type, segment ball type, three-way and four-way type which can be applied in wide range of fields.
There are also many kind of sealing material for client’s selection, like PTFE seat, metal seat and ceramics seat, etc.
Case:
Project Name: Pakistan Petroleum Project
Customer name: a customer of Pakistan Petroleum
Main products: API valves and fittings
Customer demand: oil project use
Project description:
All valves and fittings were through SGS Inspection.
client feedback:
WESDOM is a very trustworthy team, not only professional, but also caring and enthusiastic in service. If there is a demand in the future, we will choose WESDOM without hesitation.
Project pictures:
Application:
Petrochemical
Power plant
Refining
Oil & Gas
Metallurgy
