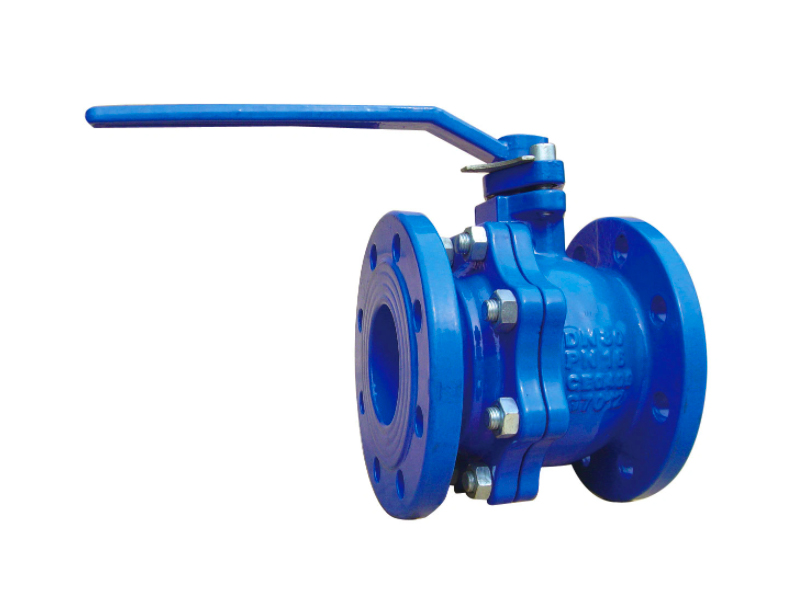

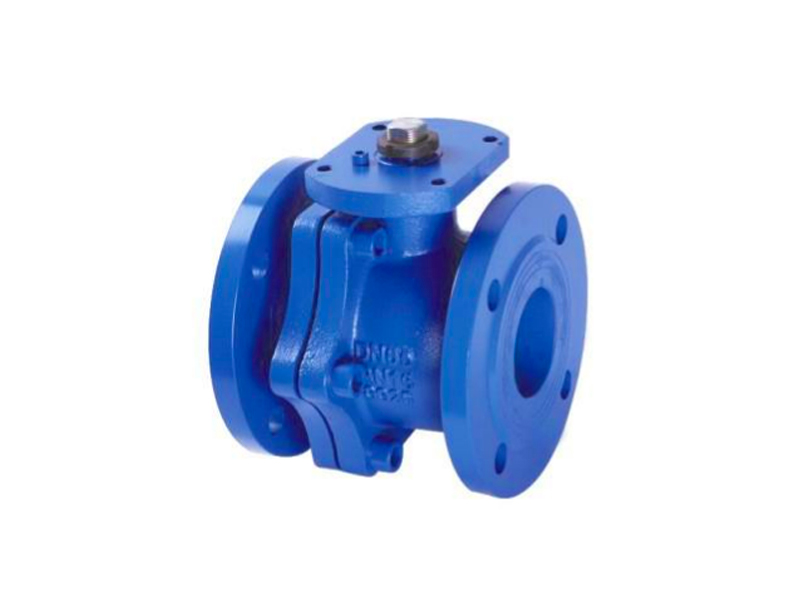

Cast Iron Ball Valve
Features:
Size: DN40-DN200
Pressure Rating: PN16/150LB/10K
Material: HT200
Design Standard: DIN 3357,ASME B16.34
Inspection Standard: DIN 3230,API 598,JIS B2003
Application medium: Water, steam, oil, etc
Application Temperature: -10℃～150℃
We're here to help:
Easy ways to get the answers you need.

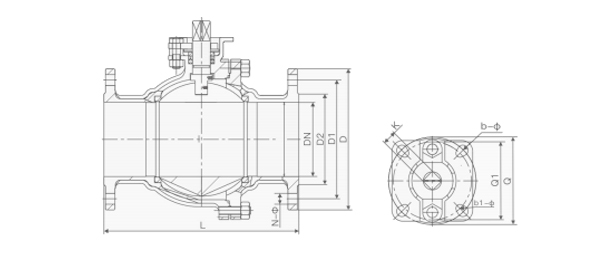

Parameter:
|
Nominal diameter |
L |
D |
D1 |
D2 |
C |
F |
N-Φ |
K |
Q |
N–Φ |
Q1 |
b1-Φ |
|
|
|
Series 1 |
Series 2 |
|
|
|
|
|
|
|
|
|
|
|
|
15 |
130 |
130 |
95 |
65 |
45 |
14 |
2 |
4-Φ14 |
9 |
50 |
4-Φ7 |
42 |
4-Φ6 |
|
20 |
140 |
130 |
105 |
75 |
54 |
14 |
2 |
4-Φ14 |
9 |
50 |
4-Φ7 |
42 |
4-Φ6 |
|
25 |
150 |
140 |
115 |
85 |
65 |
14 |
2 |
4-Φ14 |
11 |
50 |
4-Φ7 |
/ |
/ |
|
32 |
165 |
165 |
135 |
100 |
75 |
16 |
3 |
4-Φ18 |
14 |
70 |
4-Φ9 |
/ |
/ |
|
40 |
180 |
165 |
145 |
110 |
83 |
18 |
3 |
4-Φ18 |
14 |
70 |
4-Φ9 |
/ |
/ |
|
50 |
200 |
203 |
160 |
125 |
100 |
18 |
3 |
4-Φ18 |
14 |
70 |
4-Φ9 |
/ |
/ |
|
65 |
220 |
222 |
180 |
145 |
118 |
20 |
3 |
4-Φ18 |
17 |
102 |
4-Φ12 |
70 |
4-Φ9 |
|
80 |
250 |
241 |
195 |
160 |
132 |
20 |
3 |
8-Φ18 |
17 |
102 |
4-Φ12 |
70 |
4-Φ9 |
|
100 |
280 |
305 |
215 |
180 |
153 |
20 |
3 |
8-Φ18 |
17 |
102 |
4-Φ12 |
70 |
4-Φ9 |
|
125 |
320 |
394 |
245 |
210 |
185 |
22 |
3 |
8-Φ18 |
22 |
125 |
4-Φ14 |
102 |
4-Φ12 |
|
150 |
360 |
394 |
280 |
240 |
210 |
24 |
32 |
8-Φ22 |
27 |
140 |
4-18Φ |
102 |
4-Φ12 |
|
200 |
400 |
457 |
335 |
295 |
265 |
26 |
3 |
12-Φ22 |
36 |
165 |
4-Φ22 |
140 |
4-Φ18 |
Material of main parts
|
Serial number |
Part name |
texture of material |
Serial number |
Part name |
texture of material |
|||
|
1 |
valve body |
CF8M |
CF8 |
WOB |
titanium |
12 |
Spring |
301 |
|
2 |
Valve cover |
CF8M |
CF8 |
WOB |
titanium |
13 |
Nut |
304 |
|
3 |
sphere |
316 |
304 |
titanium |
14 |
Locking cover |
304 |
|
|
4 |
valve seat |
PTFE、Para polyphenylene |
15 |
Nut |
304 |
|||
|
5 |
Nut |
A193-B8 A193-B7 |
16 |
Handle |
304 |
|||
|
6 |
Stem |
316 |
304 |
titanium |
17 |
Handle sleeve |
Plastic |
|
|
7 |
Anti static device |
304 |
18 |
Limiting plate |
304 |
|||
|
8 |
Thrust washer |
PTFE、Flexible graphite |
19 |
Sealing gasket |
PTFE、Flexible graphite+Stainless steel wire |
|||
|
9 |
filler |
PTFE、Flexible graphite |
20 |
Steel pipe |
Galvanized steel pipe |
|||
|
10 |
Transition gasket |
Reinforced polytetrafluoroethylene、Flexible graphite |
21 |
Trigger |
CF8 |
|||
|
11 |
Packing pressure ring |
304 |
22 |
Set nut |
304 |
|||
Standards&Features:
|
Product specification |
design code |
Structural length |
Connecting flange |
Test and inspection |
Pressure temperature |
|
|
GB/T12237 |
GB/T12221 JB/T1686 |
GB/T9113、JB/T79、HG/T20592、EN1092 |
JB/T9092、GB/T20591、API598 |
GB/T12224 |
Product features
1. Friction free opening and closing: this function completely solves the problem that the sealing essence of traditional valves is affected by the friction between sealing surfaces.
2 top mounted structure: the valve installed on the pipeline can be inspected and maintained directly online, which can effectively reduce the device and cost.
3. Single seat design: eliminates the problem that the medium in the valve cavity will affect the use safety due to abnormal pressure rise
4. Low torque design: the valve stem with special structure design can be opened and closed easily with a small handle
5 wedge seal structure: the valve is sealed by the mechanical force provided by the valve stem, so that the sealing performance of the valve is not affected by the change of pipeline pressure difference, and the sealing performance is reliably guaranteed under various working conditions.
6: Cleaning structure of sealing surface: when the ball leans away from the valve seat, the fluid in the pipeline passes through the sealing surface of the ball at 360 ° evenly, which not only eliminates the local scouring of the fluid on the valve seat, but also washes away the accumulation on the sealing surface, so as to achieve the purpose of self-cleaning.
Case:
Application:
Electricity
Water supply
Drainage
Water treatment
Oil.
