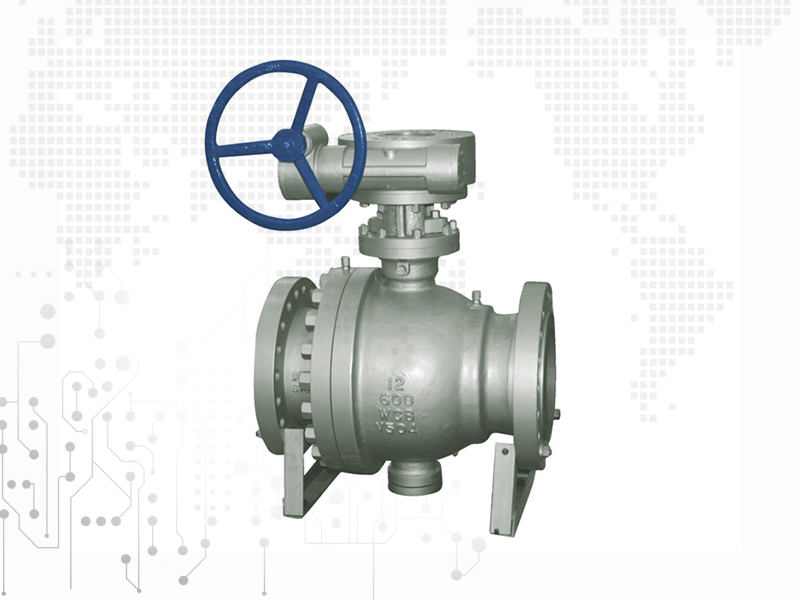

fixed ball valve
Features:
Applicable Temperature： -196~350℃
Driving Means: Manual,pneumatic,motor,hydro-dynamic,rtc.
Lnside Nominal Diameter: DN15~800mm 1/2"~32"
Applicable medium: Water,gas,oil product,natural gas and corrosive mediums as acids,alkalis,etc.
We're here to help:
Easy ways to get the answers you need.
Parameter:
1 |
2 |
3 |
4 |
5 |
6 |
7 |
| the valve body | the stud | the nut | the O ring | the axle sleeve | Washers | the valve stem |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
| the key | the key | the O ring | Gasket | the gland | the bolt | the O ring |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
| the worm gear worm drive device |
the spheroid | the seal circle | the vlave seat | the spheoid | the gasket | the stud |
22 |
23 |
24 |
25 |
26 |
27 |
28 |
| the nut | the valve cover | the lower shaft | the O ring | adjusts pad | under the end cover | the bolt |
Standards&Features:
| Material name | Q11F-(16-64)C | Q11F-(16-64)P | Q11F-(16-64)R | |||||
| Body | WCB | ZG1Cr18Ni9TiCF8 | ZG1Cr18Ni12Mo2TiCF8M | |||||
| Bonnet | WCB | ZG1Cr18Ni9TiCF8 | ZG1Cr18Ni12Mo2TiCF8M | |||||
| Ball | 1Cr18Ni9Ti304 | 1Cr18Ni9Ti304 | 1Cr18Ni12Mo2Ti316 | |||||
| Stem | 1Cr18Ni9Ti304 | 1Cr18Ni9Ti304 | 1Cr18Ni12Mo2Ti316 | |||||
| Sealing | Polytetrafluorethylene(PTFE) | |||||||
| Gland ;Packing | Polytetrafluorethylene(PTFE) | |||||||
Case:
1.Fluid resistance is small, and the coefficient of resistance is equal to that of the same length.
2.Simple structure, small size and light weight.
3.Close and reliable, ball valve sealing surface material widely used plastic, sealing well, in the vacuum system has also been widely used.
4.Easy operation, open and close rapidly, from fully open to fully closed as long as 90 degree rotation, facilitate remote control.
5.Easy maintenance, valve structure is simple, the sealing ring is generally active, demolition and replacement are more convenient.
6.In the fully open or fully closed, the ball and valve seat sealing surface and the dielectric isolation, the media through, will not cause the valve sealing surface erosion.
7.Suitable for a wide range of sizes from small to a few millimeters, large to a few meters, from high vacuum to high pressure can be applied
2.Simple structure, small size and light weight.
3.Close and reliable, ball valve sealing surface material widely used plastic, sealing well, in the vacuum system has also been widely used.
4.Easy operation, open and close rapidly, from fully open to fully closed as long as 90 degree rotation, facilitate remote control.
5.Easy maintenance, valve structure is simple, the sealing ring is generally active, demolition and replacement are more convenient.
6.In the fully open or fully closed, the ball and valve seat sealing surface and the dielectric isolation, the media through, will not cause the valve sealing surface erosion.
7.Suitable for a wide range of sizes from small to a few millimeters, large to a few meters, from high vacuum to high pressure can be applied
Application:
Water,gas,oil product,natural gas and corrosive mediums as acids,alkalis,etc.
