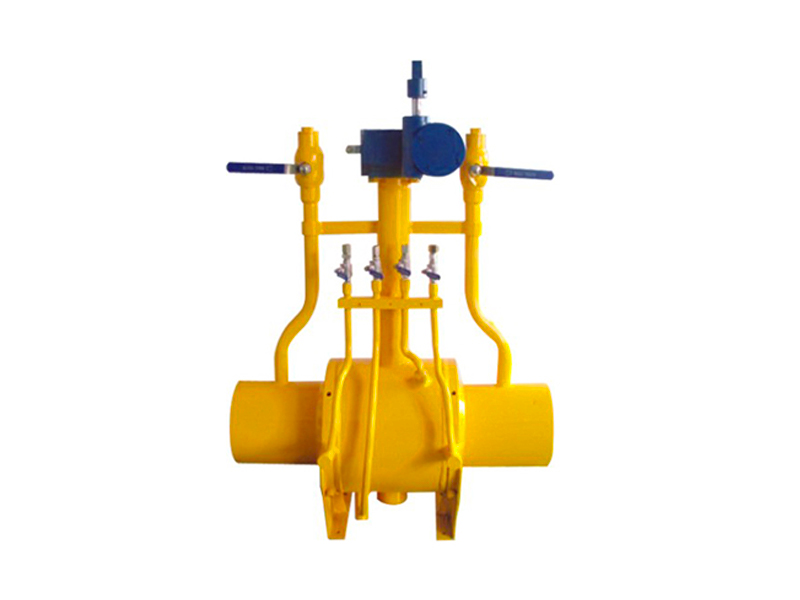

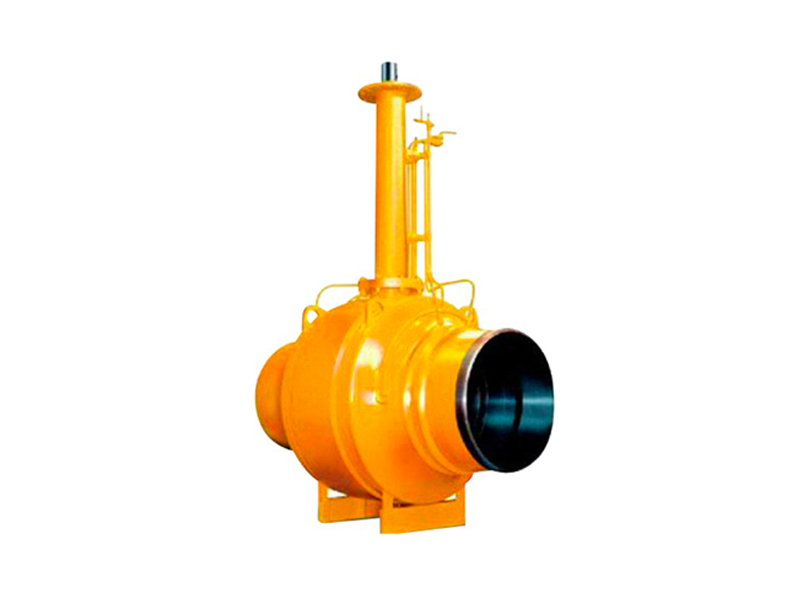

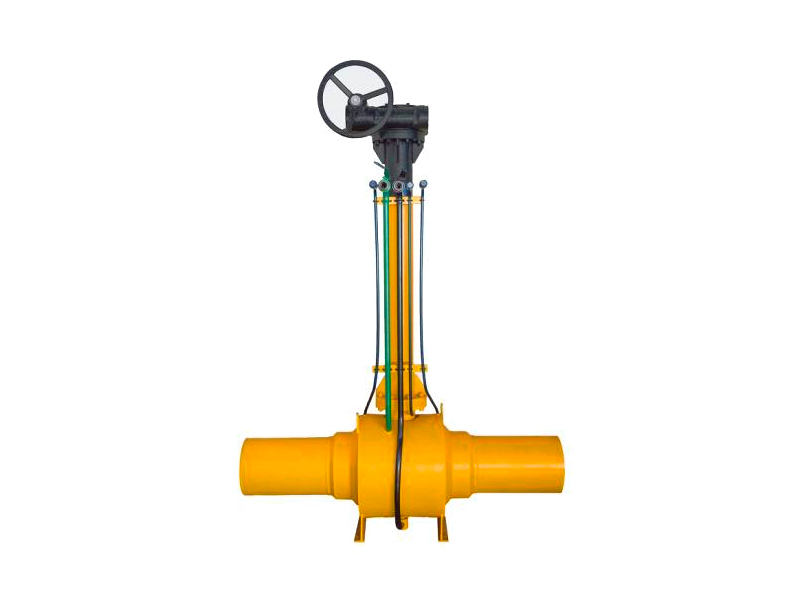

Forge Steel Fully Welded Ball Valve
Features:
Size: 2”-48”
Pressure Rating: 150LB-900LB
Material: A216 GR.WCB
Design Standard: API6D,ASME B16.34
Inspection Standard: API598
Application medium: Petroleum, Natural Gas
Application Temperature: -46℃ to 250℃
We're here to help:
Easy ways to get the answers you need.
Parameter:
WESDOM BALL VALVES are reliable, offering floating type, trunnion mounted type, segment ball type, three-way and four-way type which can be applied in wide range of fields. There are also many kind of sealing material for client’s selection, like PTFE seat, metal seat and ceramics seat, etc.
Standards&Features:
Forged steel fully welded ball valve is designed according to API 6D. It has one piece welded body and can be welded with transition pipe on connection ends.
|
Design |
API 6D |
|
End Connection |
BW |
|
Operation |
Manual/Pneumatic/Electric |
|
Size Range |
NPS 2"-36"(DN50-DN900) |
|
Pressure Rating |
ASME Class 150~2500(PN16~PN420) |
|
Body Material |
Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel |
|
Seat Material |
PTFE, RPTFE, PEEK, NYLON, DEVLON |
|
Temperature |
-46℃ to 250℃ |
Case:
Application:
Petroleum
Natural gas
