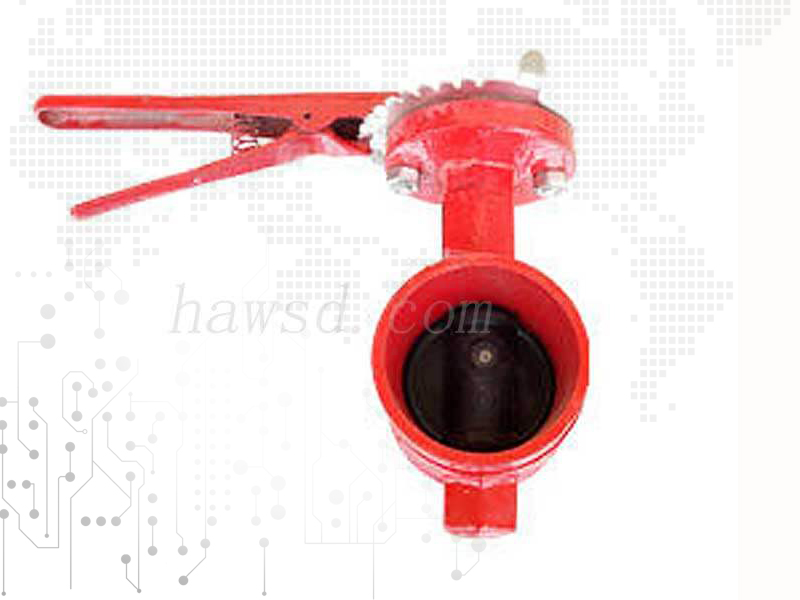

Grooved Butterfly Valve

Features: DN: 2~32"(DN50~DN800)
Pressure: PN10, PN16, Class125
Body Materials: Cast Iron, Ductile Iron
Seat Materials: NBR, EPDM
Disc Materials: Ductile Iron + EPDM/NBR lined
Stem Materials: SS416,304
End Connection: Grooved

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Adoptive standards
  • Features
  • Application
  • Inquiry

Product parameter:

DN ;Nominal ;diameter  Size ;(mm)
L L1 D D1 D2 D3 D4 Φ H1 H2 H3 Z-Φd
1 1.6 1 1.6
50 42 167 52.9 125 125 92 77 57 12.6 70 147 250 4-Φ23 4-Φ23
65 44.7 167 64.5 145 145 110 77 57 12.6 76 155 250 4-Φ23 4-Φ23
80 45.2 167 78.8 160 160 121 77 57 12.6 92 164 250 8-Φ23 8-Φ20
100 52.1 167 104 180 180 153 92 70 15.78 106 175 250 4-Φ23 4-Φ23
125 54.4 167 123.3 210 210 176 92 70 18.92 119 194 250 4-Φ23 4-Φ23
150 55.8 167 155.6 240 240 207 92 70 18.92 132 206 250 4-Φ25 4-Φ25
200 60.6 225 202.6 295 295 259 115 89 22.1 162 237 287 4-Φ25 4-Φ25
250 65.6 225 250.5 350 355 316 115 89 28.45 200 282 287 4-Φ28 4-Φ28
300 77 260 301.6 400 410 370 140 108 31.6 225 311 330 4-Φ28 4-Φ28
350 76.5 260 333.3 460 470 405 140 108 31.6 263 335 331 4-Φ30 4-Φ30
400 86.5 260 389.6 515 525 470 197 159 33.15 309 400 332 4-Φ30 4-Φ30
450 105.6 260 440.5 565 585 522 197 159 38 328 420 333 4-Φ30 4-Φ30
500 132 260 491.6 620 650 566 197 159 41.15 361 480 334 4-Φ30 4-Φ33
600 152 260 592.5 725 770 693 276 216 50.65 459 560 335 4-Φ30 4-Φ36
700 163 466 695 840 840 801 300 254 63.5 520 624 650 24-Φ30 24-Φ36
800 188 466 794.7 950 950 907 300 254 63.5 590 680 650 24-Φ33 24-Φ39



Adoptive standards:

Size Range: 2~12"(DN50~DN300)
Pressure: PN10, PN16, Class125
Body Materials: Cast Iron, Ductile Iron ;
Seat Materials: NBR, EPDM ;
Disc Materials: Ductile Iron + EPDM/NBR lined ;
Stem Materials: SS416,304
End Connection: Grooved
Operate: Manual, Worm gear, Pneumatic, Electric-Motorized
Both AS and BS standard are available.

Standard Test :
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.





Power

 380VAC/3 phase/50Hz,220VAC/single phase/50Hz

Output torque ;

50-800Nm

Output speed ;

7.5-30s/90degree

Stroke adjustment ;

90°±10°

Degree of protection ;

IP54

Ambient temperature ;

-20-40℃



Features:

1.Single Eccentric Disc-Shaft
2.Anti-Blow Out Stem
3.Bi-Directional
4.Fire safe Design
5.Low Friction Body Seat
6.Zero Leakage

Why Choose Us:
1.We promise no leakage and breakage for valves. Every butterfly valve will test for 2 times test pressure before leave factory. We will replace the valve if there is quality problem within 24 months guarantee period.
2.We obtained ISO9001 quality system certification.We inspect the parts of valve carefully, 48 produce steps, try to supply you ideal valve.
3.We can supply different kinds of materials according to customers' requests,such as DI,cast steel,SS304,SS316 body and disc. EPDM,NBR,PTFE,Viton etc. Enough stock ensure fast delivery.
4.We have more than 150 types body moulds, which include ISO,DIN,ANSI,BS standard.
5.We own full-automatic machine paint line, match high-temperature baking house,which makes smooth paint and good appearance of valve.

Standard Test :
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature.
Special Test: On request, any other test can be carried out according to special instruction by client.

Application:

1.Water Treatment Plant ;
2.Drilling Rigs;
3.Paper Industry;
4.Gas Plant;
5.Sugar Industry;
6.Cooling Water Circulation;
7.Breweries;
8.Heating & Air Conditioning;
9.Chemical Industry;
10.Pneumatic Conveyors;
11.Waste Effluent Treatment Plant ;
12.Compressed Air.
