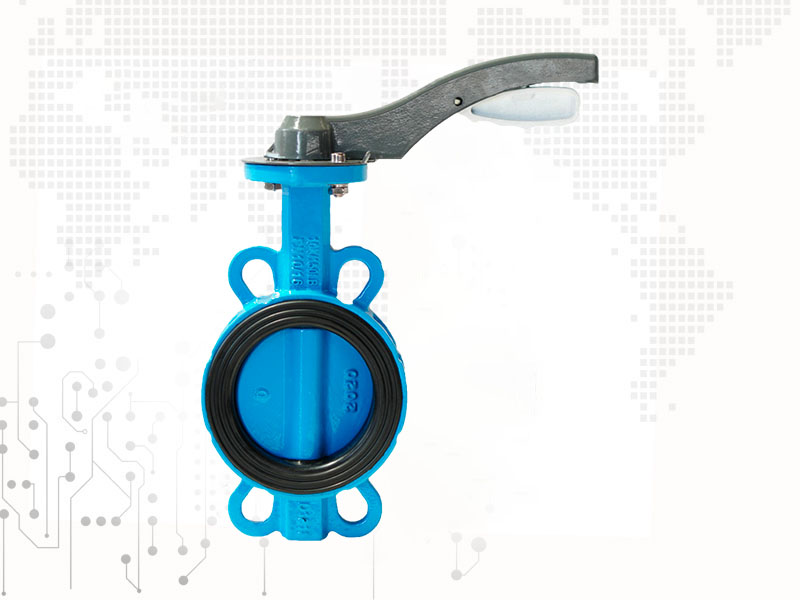

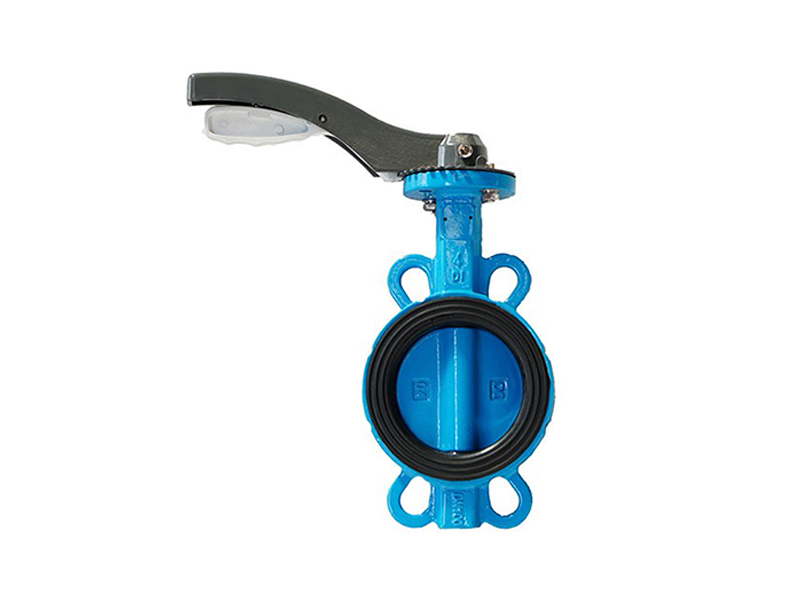

Multi standard soft seat aluminum lever coated discwafer type butterfly valve
Features:
Size Range 2~10"(DN50~DN250)
Pressure PN6, PN10, PN16, Class150,10K
Body Materials Cast Iron, Ductile Iron, WCB , Stainless Steel
Seat Materials NBR, EPDM, VITON, PTFE
Disc Materials Ductile Iron, WCB, CF8,CF8M
Stem Materials SS416, SS304, SS316
Operate Manual, Worm gear, Pneumatic, Electric-Motorized
We're here to help:
Easy ways to get the answers you need.

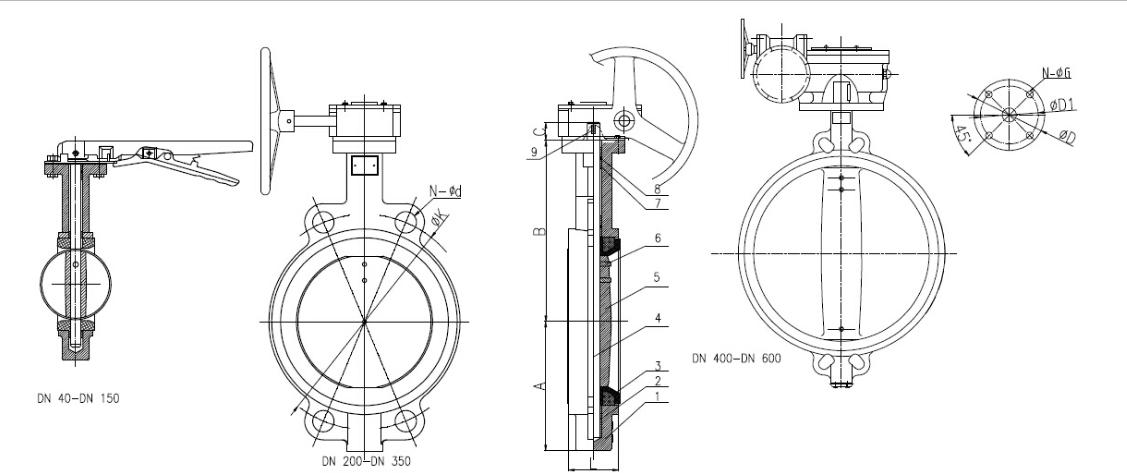

Parameter:
A | B | C | L | DIN PN10 | DIN PN16 | ANSI 150B | JIS 10K | ISO5211 | Top Flange | ||||||
ΦK | N-Φd | ΦK | N-Φd | ΦK | N-Φd | ΦK | N-Φd | ΦD | ΦD1 | N-ΦG | |||||
67 | 141 | 32 | 33 | 110 | 4-Φ18 | 110 | 4-Φ18 | 98.5 | 4-Φ16 | 105 | 4-Φ19 | 65 | 50 | 4-Φ8 | F05 |
67 | 141 | 32 | 43 | 125 | 4-Φ18 | 125 | 4-Φ18 | 120.6 | 4-Φ19 | 120 | 4-Φ19 | 65 | 50 | 4-Φ8 | F05 |
75 | 151 | 32 | 46 | 145 | 4-Φ18 | 145 | 4-Φ18 | 139.7 | 4-Φ19 | 140 | 4-Φ19 | 65 | 50 | 4-Φ8 | F05 |
95 | 160 | 32 | 46 | 160 | 8-Φ18 | 160 | 8-Φ18 | 152.4 | 4-Φ19 | 150 | 8-Φ19 | 65 | 50 | 4-Φ8 | F05 |
111 | 180 | 32 | 52 | 180 | 8-Φ18 | 180 | 8-Φ18 | 190.5 | 8-Φ19 | 175 | 8-Φ19 | 90 | 70 | 4-Φ10 | F07 |
129 | 193 | 32 | 56 | 210 | 8-Φ18 | 210 | 8-Φ18 | 215.9 | 8-Φ22.4 | 210 | 8-Φ23 | 90 | 70 | 4-Φ10 | F07 |
142 | 207 | 32 | 56 | 240 | 8-Φ22 | 240 | 8-Φ22 | 241.3 | 8-Φ22.4 | 240 | 8-Φ23 | 90 | 70 | 4-Φ10 | F07 |
170 | 240 | 45 | 60 | 295 | 8-Φ22 | 295 | 12-Φ22 | 298.4 | 8-Φ22.4 | 290 | 12-Φ23 | 125 | 102 | 4-Φ12 | F10 |
206 | 270 | 45 | 68 | 350 | 12-Φ22 | 355 | 12-Φ22 | 361.9 | 12-Φ25.4 | 355 | 12-Φ25 | 125 | 102 | 4-Φ12 | F10 |
238 | 316 | 45 | 78 | 400 | 12-Φ22 | 410 | 12-Φ26 | 431.8 | 12-Φ25.4 | 400 | 16-Φ25 | 125 | 102 | 4-Φ12 | F10 |
267 | 368 | 45 | 78 | 460 | 16-Φ22 | 470 | 16-Φ26 | 476.2 | 12-Φ28.4 | 445 | 16-Φ25 | 125 | 102 | 4-Φ12 | F10 |
298 | 400 | 51 | 86 | 515 | 12-Φ26 | 525 | 16-Φ30 | 539.7 | 16-Φ28.4 | 510 | 16-Φ27 | 175 | 140 | 4-Φ18 | F14 |
318 | 422 | 51 | 105 | 565 | 20-Φ26 | 585 | 20-Φ30 | 577.8 | 16-Φ31.8 | 565 | 20-Φ27 | 175 | 140 | 4-Φ18 | F14 |
349 | 479 | 57 | 130 | 620 | 20-Φ26 | 650 | 20-Φ33 | 635 | 20-Φ31.8 | 620 | 20-Φ27 | 175 | 140 | 4-Φ18 | F14 |
410 | 562 | 70 | 152 | 725 | 20-Φ30 | 770 | 20-Φ36 | 749.3 | 20-Φ35.1 | 730 | 24-Φ33 | 210 | 165 | 4-Φ22 | F16 |
Standards&Features:
Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1
Pressure Test: API 598
Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16
Top Flange: ISO5211
Features:
Applicable medium:Clear water and neutral liquid
Suitable temperature:- 20 ~ 120 ℃
Application field:Municipal construction, water conservancy projects, water supply and drainage, water treatment, etc
Product advantages:
1. The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.
2. The thickness of valve body meets the requirement of GB 26640, and the thickness and pressure strength are guaranteed.
3. The valve body is made of qt450-10 material and has 3 grades of spheroidization rate, with stronger mechanical properties, tensile strength of 450Mpa and extension rate of more than 10%. Compared with cast iron body, the tensile strength of the same thickness is twice that of cast iron body, and the applicable working pressure is higher.
4. The seat is made of imported rubber material with 50% adhesive content.The valve sealing is reliable, the opening and closing moment is stable, the valve seat has a long service life, and the opening and closing times can reach more than 10000.
5. The seat is a wide-edge seat, which is favorable for valve installation, wide contact surface with flange boss on pipeline, reliable sealing performance, and the installation precision is lower than the narrow-edge seat. Seat axial with concave table, with o-ring, can realize seat axial secondary seal.
6. The valve shaft and valve body are equipped with 4 oil-free bearings and 3 o-type seals. The valve shaft supports more vigorously and the axial seal is more reliable.
7. Ultrasonic cleaning shall be carried out before packing of each valve, so as to prevent contamination and particulate impurities from remaining in the valve body, ensure cleanliness of the valve and prevent contamination of the water body of the pipeline by the valve itself.
8. The body is sprayed with epoxy resin plastic powder from Aksu, a world-famous brand, which can be deposited thicker and have stronger adhesion after melt curing.
Case:
Single Eccentric Disc-Shaft
Anti-Blow Out Stem
Bi-Directional
Fire safe Design
Low Friction Body Seat
Zero Leakage
Application:
2.Drilling Rigs;
3.Paper Industry;
4.Gas Plant;
5.Sugar Industry;
6.Cooling Water Circulation;
7.Breweries;
8.Heating & Air Conditioning;
9.Chemical Industry;
10.Pneumatic Conveyors;
11.Waste Effluent Treatment Plant ;
12.Compressed Air.
