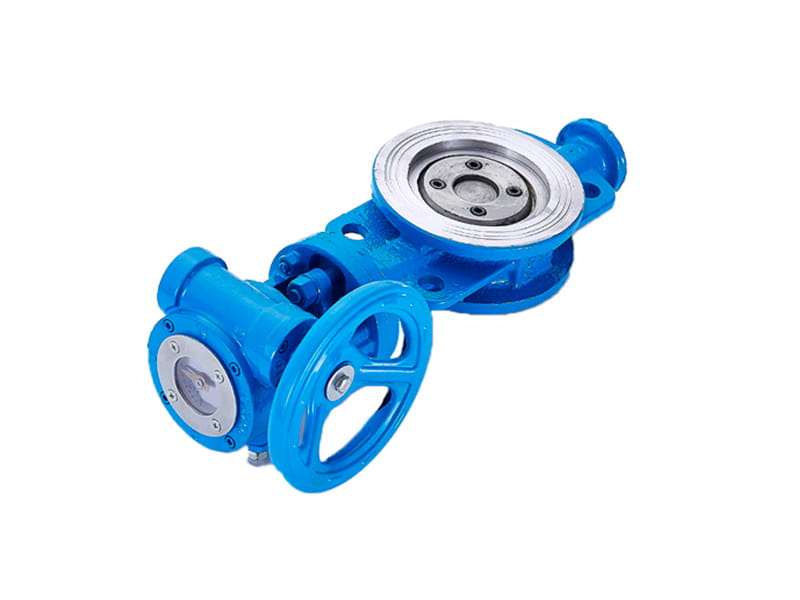

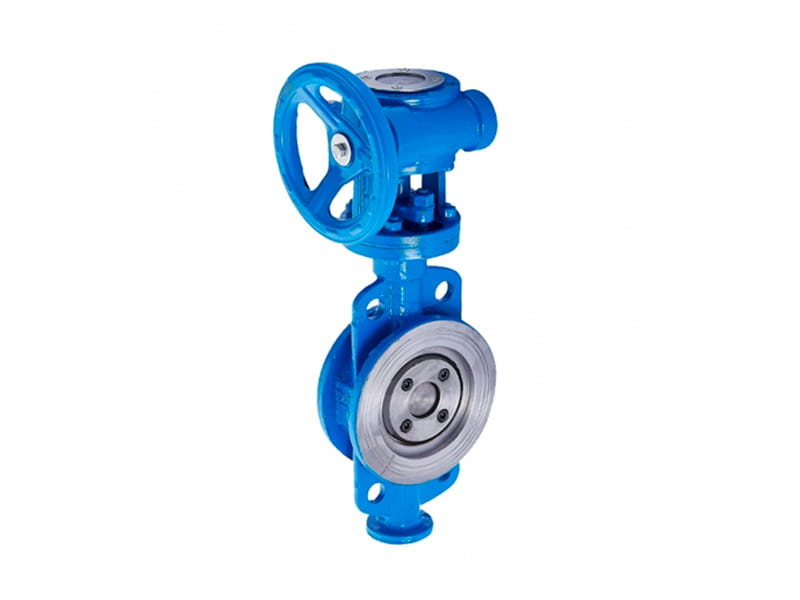

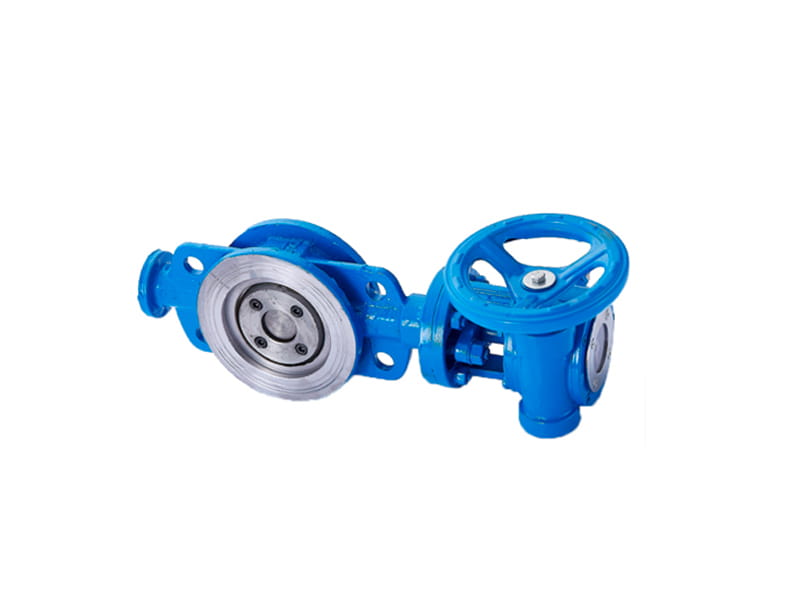

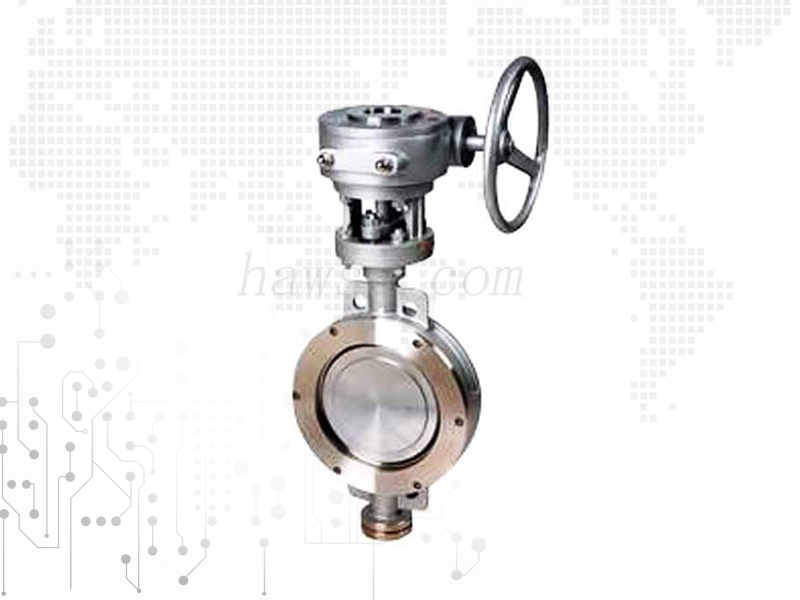

Wafer Type Metal Seat Butterfly Valve
Features:
DN: 2~48"(DN50~DN1200）
Nominal pressure: PN10, PN16, Class150
Body Materials: WCB, Stainless Steel
Seat Materials: Stainless steel
Disc Materials: WCB, CF8,CF8M
Stem Materials: SS416, SS304, SS316
End Connection: Wafer,Flange,Lug
We're here to help:
Easy ways to get the answers you need.

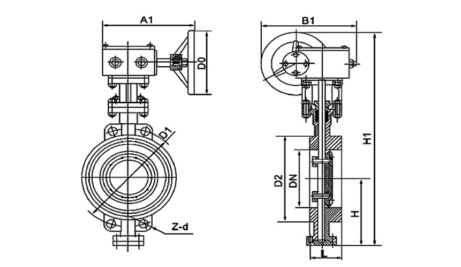

Parameter:
|
65 |
2 1/2'' |
185 |
145 |
118 |
112 |
185 |
145 |
118 |
|
80 |
3'' |
200 |
160 |
132 |
114 |
200 |
160 |
132 |
|
100 |
4'' |
220 |
180 |
156 |
127 |
220 |
180 |
156 |
|
125 |
5'' |
250 |
210 |
184 |
140 |
250 |
210 |
184 |
|
150 |
6'' |
285 |
240 |
211 |
140 |
285 |
240 |
211 |
|
200 |
8'' |
340 |
295 |
266 |
152 |
340 |
295 |
266 |
|
250 |
10'' |
395 |
350 |
319 |
165 |
405 |
355 |
319 |
|
300 |
12'' |
445 |
400 |
370 |
178 |
460 |
410 |
370 |
|
350 |
14'' |
505 |
460 |
429 |
190 |
520 |
470 |
429 |
|
400 |
16'' |
565 |
515 |
480 |
216 |
580 |
525 |
480 |
|
450 |
18'' |
615 |
565 |
530 |
222 |
640 |
585 |
548 |
|
500 |
20'' |
670 |
620 |
582 |
229 |
715 |
650 |
609 |
|
600 |
24'' |
780 |
725 |
682 |
267 |
840 |
770 |
720 |
|
700 |
28'' |
895 |
840 |
794 |
292 |
910 |
840 |
794 |
|
800 |
32'' |
1015 |
950 |
901 |
318 |
1025 |
950 |
901 |
|
900 |
36'' |
1115 |
1050 |
1001 |
330 |
1125 |
1050 |
1001 |
|
1000 |
40'' |
1230 |
1160 |
1112 |
410 |
1255 |
1170 |
1112 |
|
1200 |
48'' |
1455 |
1380 |
1328 |
470 |
1485 |
1390 |
1328 |
Standards&Features:
Standards & Features
Pneumatic Stainless Steel butterfly valve Standard:
Design and Manufacture Conform to EN 593, API609, JIS
Flange dimensions Conform to EN 1092-2 PN10, PN16, JIS5K, JIS10K,ANSI B16.1,DIN2501,BS4504
Face to Face dimensions Conform to EN558 series
Top Flange dimensions Conform to ISO5211
Testing Conform to API598、EN12266-1
Pneumatic Stainless Steel butterfly valve features:
Protection of gearbox IP 68-8 (submersion up to 8 m of water) and actuator IP 68 (submersion up to 8 m of water, during 96 hours and 10operations)
With position indicator.
Clockwise Close (CC).
For installation above ground and in non-flooded chambers.
Designed and tested to an endurance level of 2500 cycles minimum, inaccordance with EN 1074-1 and 2.
Standard Test
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Case:
Project Name: Pakistan AL-MORIZE Sugar Factory
Client Name: Pakistan AL-MORIZE Sugar Factory
Buy products: Control/On-off butterfly valves, Control globe valves, Control ball valves, Angle seat valves.
Customer needs: applied to sugar factory
Engineering Content:
The customer found WESDOM through Google advertisements, because he himself is relatively familiar with valves, so he sent the required products, product materials and required medium to our salesman in the international trade department, and the WESDOM salesman also promptly contacted with our factory's sales department and the engineering department, and then gave the customer the best price;
client feedback:
WESDOM's valves are not only of high quality, but also of very good service and price. At the same time, you can also customize your own logo and color. The delivery time is very punctual. They are very satisfied with the cooperation with WESDOM, and they will choose WESDOM if you need it;
Project pictures:
Application:
1.Water Treatment Plant ;
2.Drilling Rigs;
3.Paper Industry;
4.Gas Plant;
5.Sugar Industry;
6.Cooling Water Circulation;
7.Breweries;
8.Heating & Air Conditioning;
9.Chemical Industry;
10.Pneumatic Conveyors;
11.Waste Effluent Treatment Plant;
12.Compressed Air.
