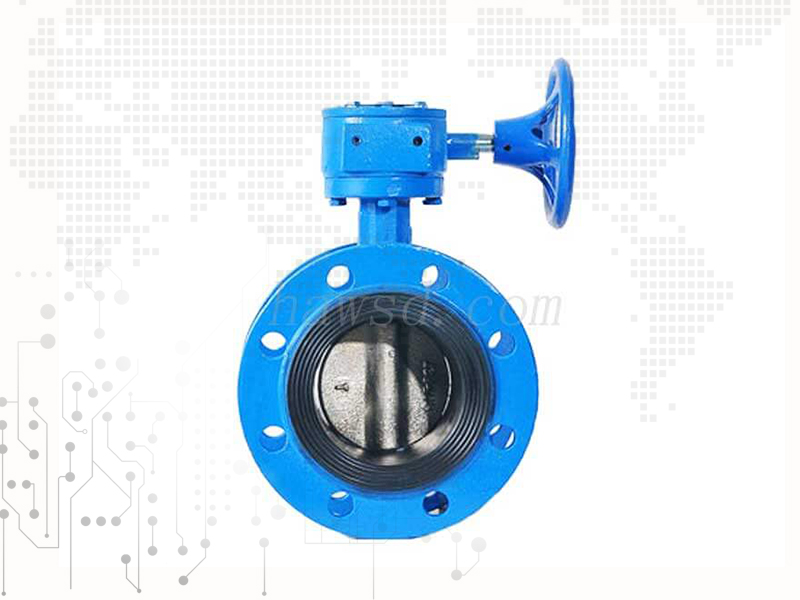

Worm Gear Operated Flange Butterfly Valve

Features: DN: 2~48"(DN50~DN1200)
Nominal pressure: PN10, PN16, Class125
Body Materials: Cast Iron, Ductile Iron, WCB , Stainless Steel
Seat Materials: NBR, EPDM, VITON
Disc Materials: Ductile Iron, WCB, CF8, CF8M, Al-bronze C958
Stem Materials: SS416, SS304, SS316
End Connection: Flange

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Adoptive standards
  • Features
  • Application
  • Inquiry

Product parameter:

DN ΦD1 ΦD2 ΦD3 ΦD4 ΦD5 N*Φd A B C D L b d f Φd1 Weight
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm kg
50 52.6 125 165 50 65 4*19 83 120 32 108 111 20 99 3 7 7.6
65 64.3 145 185 50 65 4*19 93 130 32 112 115 20 118 3 7 9.7
80 78.8 160 200 50 65 8*19 100 145 32 114 117 22 132 3 7 10.6
100 104 180 220 70 90 8*19 114 155 32 127 130 24 156 3 10 13.8
125 123.3 210 250 70 90 8*19 125 170 32 140 143 26 184 3 10 18.2
150 155.7 240 285 70 90 8*23 143 190 32 140 143 26 211 3 10 21.7
200 202.4 295 340 102 125 8*23 170 205 45 152 155 26 266 3 12 31.8
250 250.4 350 395 102 125 12*23 198 235 45 165 168 28 319 3 12 44.7
300 301.5 400 445 102 125 12*23 223 280 45 178 182 28 370 4 12 57.9
350 333.3 460 505 102 125 16*23 270 310 45 190 194 30 429 4 12 81.6
400 389.6 515 565 140 175 16*28 300 340 51 216 221 32 480 4 18 106
450 440.5 565 615 140 175 20*28 340 375 51 222 227 32 530 4 18 147
500 491.6 620 670 140 175 20*28 355 430 57 229 234 34 582 4 18 165
600 592.5 725 780 165 210 20*31 410 500 70 267 272 36 682 5 22 235
700 695 840 895 254 300 24*31 478 560 66 292 299 40 794 5 18 238
800 794.7 950 1015 254 300 24*34 529 620 66 318 325 44 901 5 18 475
900 864.7 1050 1115 254 300 28*34 584 665 118 330 337 46 1001 5 18 595
1000 965 1160 1230 254 300 28*37 657 735 142 410 417 50 1112 5 18 794
1200 1160.6 1380 1455 298 350 32*40 799 917 150 470 478 56 1328 5 22 1290



Adoptive standards:

Valve Design: API 609, MSS SP-67
Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1
Pressure Test: API 598
Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16
Top Flange: ISO5211

Item

Name

Material

1

body

CI/DI

2

seat

EPDN/NBR/VITON

3

disc

DI/CF8/CF8M/Al-bronze

4

pin

SS316/SS416

5

stem

SS416/SS304/SS316

Features:

1. Small in size and light in weight. Easy to install and maintain.Can be installed wherever needed.
2. Simple and compact construction, 90 ° rotating ,open and shut rapidly
3. Small operating torque, energy saving.
4. Discharge characteristic tend to straight line,good regulation performance.
5. Completely sealed, zero gas leakage test
6. The number of open and close test reaches as many as tens of thousands of times, long service life.
7. Applicable to a variety of medias when using different materials.

Standard Test :
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.

Application:

1.Water Treatment Plant ;
2.Drilling Rigs;
3.Paper Industry;
4.Gas Plant;
5.Sugar Industry;
6.Cooling Water Circulation;
7.Breweries;
8.Heating & Air Conditioning;
9.Chemical Industry;
10.Pneumatic Conveyors;
11.Waste Effluent Treatment Plant;
12.Compressed Air.
