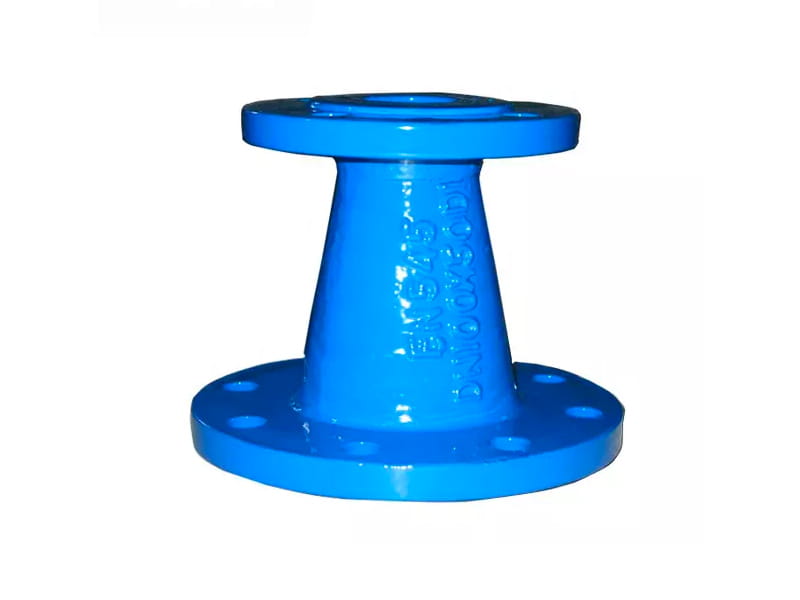

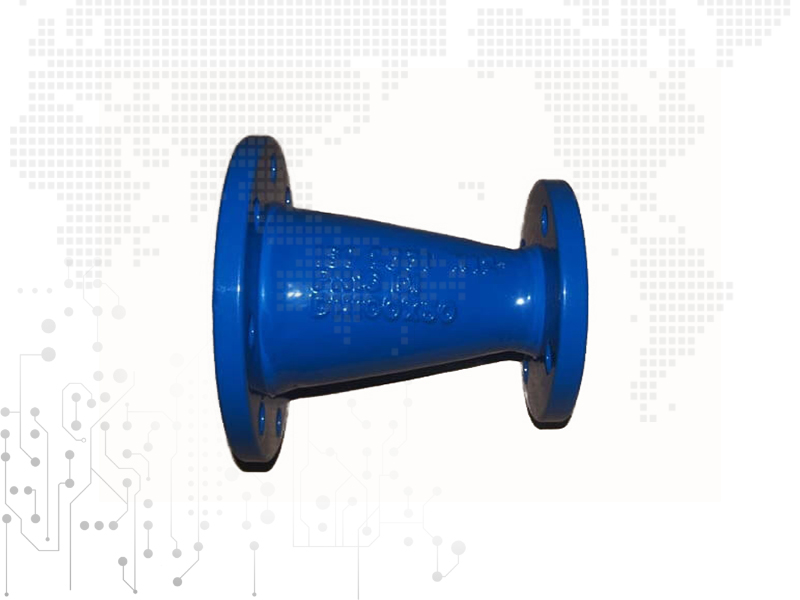

Double flanged reducer

Features: Size:From DN 100-DN1400
Material:Ductile iron
If you need more information,please download.

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Adoptive standards
  • Features
  • Application
  • Inquiry

Product parameter:


1

Material:

Ductile Cast Iron GGG50

2

Standard:

ISO2531, BS EN545, EN598, BS4772

3

Pressure:

PN10, PN16, PN25

4

Flange drilled:

ISO7005-2,BS4504, EN1092-2, DIN2501

5

Specification:

DN50 to DN2000, K12/14

6

Joints type:

Flange, Typon joint(push on joint); Bolted Gland K type Joint

7

Application:

Water supply project, drainage, sewerage, Irrigation ,water pipeline

8

Surface Inside:

Portland Cement mortar lining, bitumen paint, epoxy paint, powder

9

Surface Outside:

Epoxy paint, bitumen paint, epoxy powder coating

10

Accessories:

Gaskets, bolts and nuts available upon request

Adoptive standards:

Name

Main Type

Detail Types

Ductile Iron Pipe Fitting

Flanged Pipe Fitting

Flanged Bend, Elbow, Flanged Tee, Double Flange Reducer, Flanged Invert Tee, Flanged Cross,  Flanged Taper, Flanged Bell mouth, Ductile Iron Duckfoot Bend, Loosing Flanged Fitting, etc

Tyton Socket Pipe Fitting

Double Socket Bend, Socket Elbow, Flange Socket, Double Socket Tee, Socket Spigot tee, T Socket Fitting, Double Socket Reducer, Double Socket Duckfoot Bend, S Type Socket Bend, All -Socket Tee with 45 ° Angle Branch, Double Socket Tee with Flange Tee, etc

Mechanical Joint Pipe Fitting(  K type Bolt Gland Fitting)

Bolted Gland Bend, Bolted Gland Concentric Tapers, Flanged and Bolted Gland Socket Pieces, Bolted Gland Collar, Bolted Gland Tee, Bolted Gland Socket Spigot Bend, Bolted Gland Socket Spigot Tee with Flanged Branch, etc

Ductile Iron/PVC pipe fitting

DI/PVC Double Socket Bend,  DI/PVC Double Socket Tee Flanged Branch,  DI/PVC All Socket Tee, DI/PVC All Socket Cross, DI/PVC Double Socket Thread Branch Tee, DI/PVC Flanged Socket, DI/PVC Flanged Spigot, DI/PVC Double Socket Reducer, DI/PVC All Socket Tee, DI /PVC Gibault Joint, DI/PVC Flange Socket Duckfoot Bend,  DI/PVC End Caps with Thread, DI/PVC End Caps, DI/PVC Saddles, DI/PVC Quick Adaptors, etc

Features:

 Size:From DN 100-DN1400
 Material:Ductile iron

Application:
