ANSI Wafer Knife Gate Valve
Features:
Size 2"-24"
Pressure 150LB
Temp ≤150 ℃
Media Slurry、Powder、Fiber
Material WCB/Cast Iron
Connection Type Wafer
We're here to help:
Easy ways to get the answers you need.

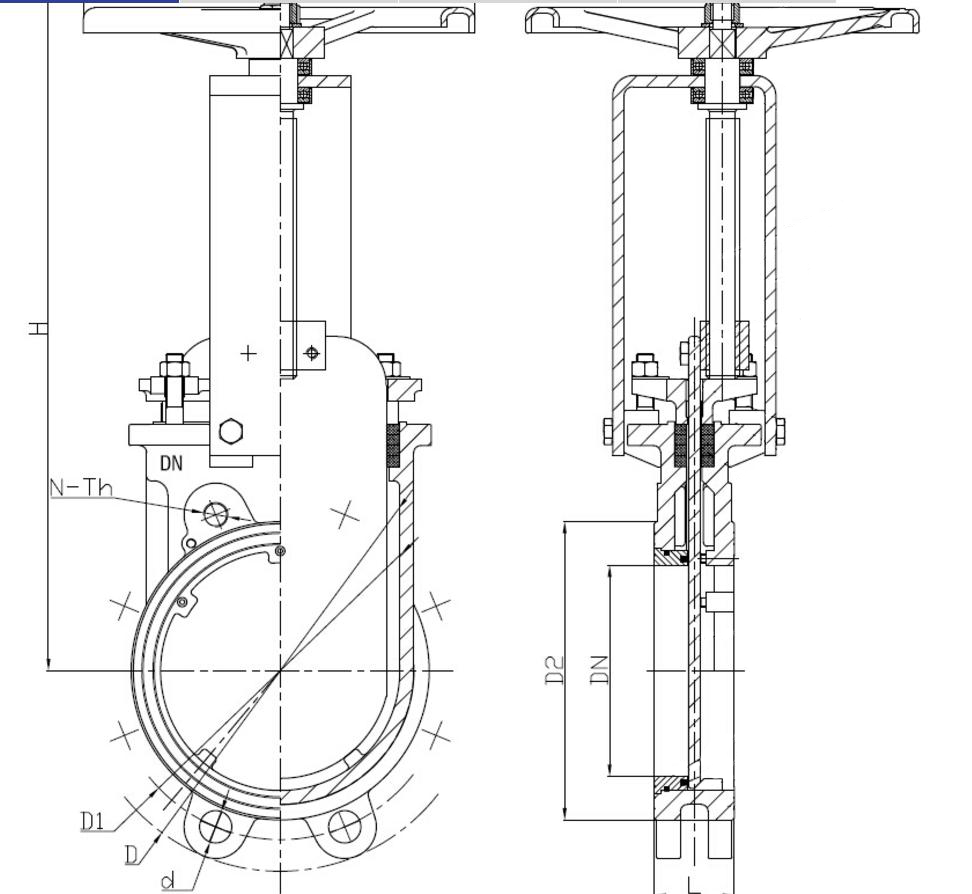

Product parameter:
|
DN |
L |
D |
D1 |
D2 |
D0 |
N-Th |
d |
H |
|
50 |
48 |
152 |
120 |
92 |
180 |
4-11 |
19 |
290 |
|
65 |
48 |
178 |
139 |
105 |
200 |
4-11 |
19 |
310 |
|
80 |
51 |
190 |
152 |
127 |
220 |
4-11 |
19 |
350 |
|
100 |
51 |
220 |
190 |
157 |
240 |
8-11 |
19 |
405 |
|
125 |
57 |
254 |
216 |
186 |
260 |
8-10 |
22 |
450 |
|
150 |
57 |
279 |
241 |
216 |
280 |
8-10 |
22 |
510 |
|
200 |
70 |
363 |
298 |
270 |
300 |
8-10 |
22 |
610 |
|
250 |
70 |
406 |
362 |
324 |
340 |
12-9 |
25 |
765 |
|
300 |
76 |
483 |
432 |
381 |
380 |
12-8 |
25 |
820 |
|
350 |
76 |
533 |
476 |
413 |
400 |
16-8 |
29 |
970 |
|
400 |
89 |
597 |
539 |
470 |
450 |
16-8 |
29 |
1024 |
|
450 |
89 |
635 |
578 |
533 |
530 |
16-8 |
32 |
1235 |
Adoptive standards:
Size：2"-24"
Pressure：150LB
Temp：≤150 ℃
Media：Slurry、Powder、Fiber
Material：WCB/Cast Iron
Connection Type：Wafer
Pressure：150LB
Temp：≤150 ℃
Media：Slurry、Powder、Fiber
Material：WCB/Cast Iron
Connection Type：Wafer
Features:
1. Knife gate valve opening and closing part is the valve plate, the plate movement direction is perpendicular to the direction of the fluid. Knife gate valve can only be fully open and fully closed, can’t be used for adjusted and the throttle.
2.The valve plate has two sealing surfaces. The two sealing surfaces of the most common gate valve forming the wedge, the wedge angle various according to the valve parameters, usually is 50. Wedge knife gate valve plate can be made into a whole part , called the rigid gate plate; also be made to that can produce small quantities of deformation in order to improve its production process, to make up the sealing surface angle deviations arising during processing, this plate called resilient plate. The seal can only rely on media pressure to seal, which rely on media pressure to ram pressure to the sealing surface of the other side of the seat to ensure the seal, which is self-sealing.
2.The valve plate has two sealing surfaces. The two sealing surfaces of the most common gate valve forming the wedge, the wedge angle various according to the valve parameters, usually is 50. Wedge knife gate valve plate can be made into a whole part , called the rigid gate plate; also be made to that can produce small quantities of deformation in order to improve its production process, to make up the sealing surface angle deviations arising during processing, this plate called resilient plate. The seal can only rely on media pressure to seal, which rely on media pressure to ram pressure to the sealing surface of the other side of the seat to ensure the seal, which is self-sealing.
Application:
Paper,
petrochemical,
mining, drainage,
food and other industries
petrochemical,
mining, drainage,
food and other industries
