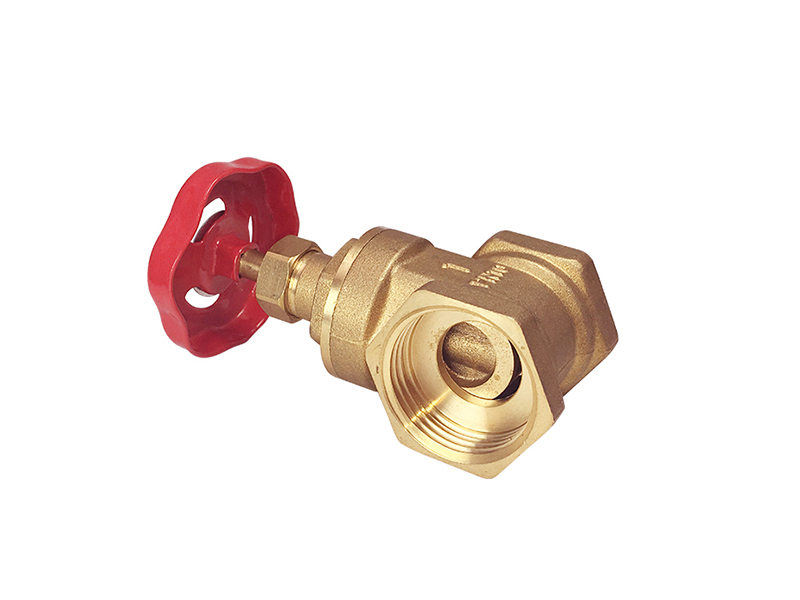

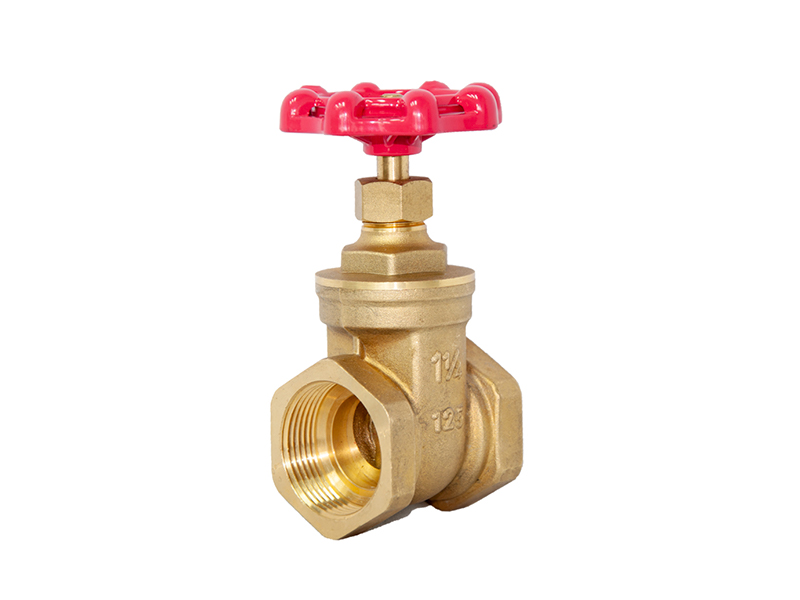

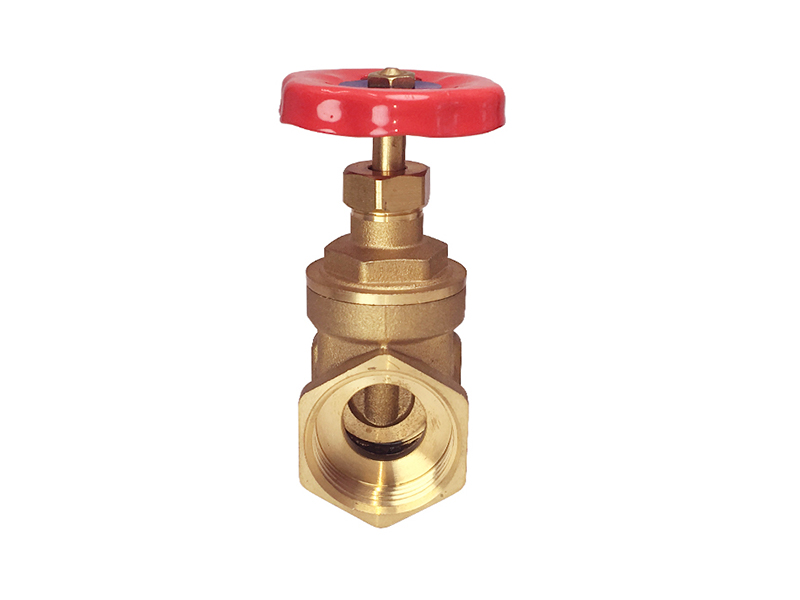

Brass Threaded Gate Valve
Features:
Size: 1/2"~4
Pressure Rating: 0-16 BAR
Material: Brass
Design Standard:
Inspection Standard:
Application medium: gases and liquids
Application Temperature: -20°C to 120°C
We're here to help:
Easy ways to get the answers you need.
Parameter:
|
Size |
DN |
A |
B |
H |
T |
W (kg) |
|
1/2" |
14.5 |
13 |
44 |
78 |
53 |
0.3 |
|
3/4" |
19 |
13 |
49 |
82 |
53 |
0.4 |
|
1" |
25 |
15.5 |
54.5 |
95 |
60 |
0.5 |
|
1-1/4" |
30 |
16.5 |
60 |
116 |
72 |
0.8 |
|
1-1/2" |
37 |
17 |
61 |
121 |
72 |
1.0 |
|
2" |
47 |
20 |
70.5 |
150 |
87 |
1.6 |
|
2 ½” |
62 |
22 |
87 |
192 |
96 |
2.7 |
|
3” |
76 |
26 |
97 |
205 |
107 |
3.6 |
|
4” |
97 |
30 |
110 |
260 |
126 |
5.9 |
|
Item |
Part |
Material |
|
1 |
Body |
Brass |
|
2 |
Disc |
Brass |
|
3 |
Seal |
PTFE |
|
4 |
Cap |
Brass |
|
5 |
Lock Nut |
Brass |
|
6 |
Cap |
Brass |
|
7 |
Seat |
PTFE |
|
8 |
Stem |
Brass |
|
9 |
Handle |
Steel |
|
10 |
Screw |
Steel |
Standards&Features:
BSP Threaded Brass Gate Valve.
Brass body with a metal seat and PTFE gland.
0-16 BAR pressure range with media temperatures from -20°C to 120°C.
Great for a wide range of gases and liquids.
Case:
Project Name: Canadian Architecture Project
Customer Name: A project leader in Canada
Main products: Gate valves, globe valves, Y strainers
Customer requirements: use in construction projects
client feedback:
Customer feedback said: "Every time I received the products from WESDOM, I am always deeply shocked and moved. WESDOM is a very valuable and trusted partner";
Application:
Textile
