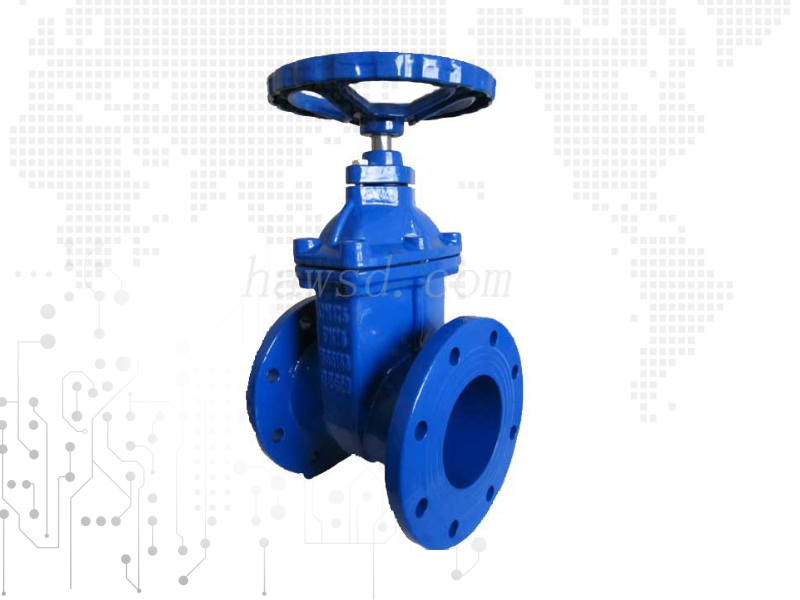

BS5163 Gate Valve

Features: Flange Connection: BS4504 PN10/16, EN1092
Face to Face dimension: BS5163
Body: Ductile iron
Bonnet: Ductile iron
Gland: Ductile iron
Wedge: Ductile iron+EPDM

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Adoptive standards
  • Features
  • Application
  • Inquiry

Product parameter:


DN L H D D1
50 178 350 165 125
65 190 369 185 145
80 203 409 200 160
100 229 458 220 180
125 254 516 250 210
150 267 570 285 240
200 292 753 340 290
250 330 807 405 355
300 356 940 460 410
350 381 1002 520 470
400 406 1100 580 525
450 432 1210 640 585
500 457 1380 715 650
600 508 1455 840 770



Adoptive standards:

Technical Data
DN50-DN800
PN1.0-1.6MPa
Flange Connection:BS4504 PN10/16, EN1092
Face to Face dimension:BS5163
1.Body: ductile iron
2.Bonnet:ductile iron
3.Gland:ductile iron
4.Wedge:ductile iron+EPDM
5.Lifting nut:brass
6.Adjustable stem:SS420
7.Clamp ring:brass
8.O ring:silicone
9.Handwheel:ductile iron
10.Bolt:carbon steel
11.Ring:EPDM
12.Bolt:SS304
13.Gate valve design BS5163
14.Rising/Non-rising stem
15.Rubber encapsulated wedge
16.Clockwise closing direction

Features:

1.Low torque operation
2.Rubber encapsulated wedge
3.Clockwise closing direction
4.Fusion bonded epoxy coated inside and outside

Application:

1.Shipping construction;
2.Tap water industry;
3.Sewage treatment;
4.Petroleum;
5.Chemicals;
6.Food;
7.Pharmacy,;
8.Textile;
9.Electric power;
