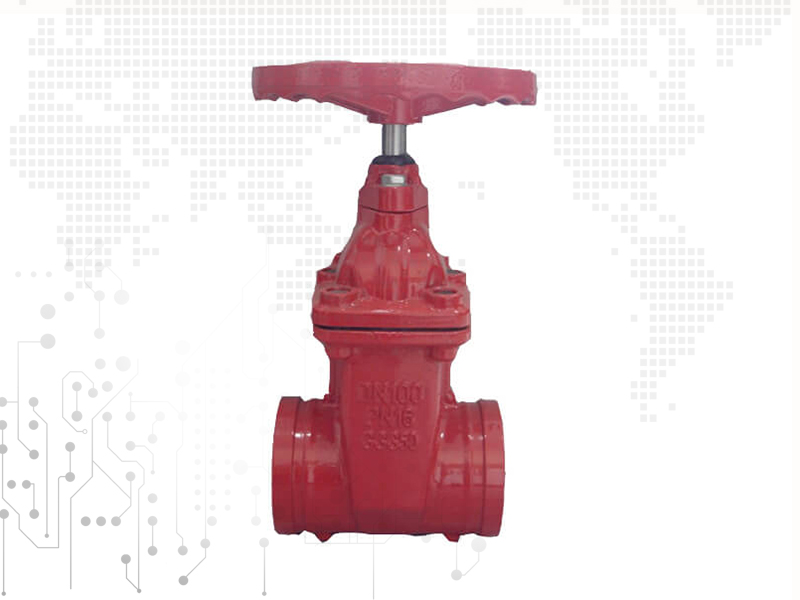

Groove Soft Sealing Gate Valve

Features: Nominal pressure: 50-600mm
PN: 1.0Mpa
Material of body: Gray iron, Ductile iron
Suitable medium: water

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Adoptive standards
  • Features
  • Application
  • Inquiry

Product parameter:



Nominal demeter  L D A B C H D0
DN50 120 57 14.5 9.5 2.2 230 180
60
65 145 76 14.5 9.5 2.2 245 180
80 155 89 14.5 9.5 2.2 310 200
100 175 108 16 9.5 2.2 345 200
114
150 225 159 16 9.5 2.2 450 240
168
200 275 219 19 13 2.5 550 320
250 325 273 19 13 2.5 620 320
300 355 325 19 13 2.5 750 400
350 380 377 25 13 2.5 880 500
400 405 426 25 13 2.5 1000 500
450 430 480 25 13 2.5 1130 640
500 455 530 25 13 2.5 1250 640
600 505 630 25 13 2.5 1500 720

Adoptive standards:

DN:50-600 PN:1.0Mpa
Material of body:Gray iron, Ductile iron
Suitable medium:water
Main application areas:Products are mainly used in industry pipeline such as tap water,sewage,seawater,water treatment,environment protection,construction,fire control,oil,chemical industry,power,food,medicine,textile,shipping,energy etc.It can adjust and cut off the fluid.

Features:

1.Grooved gate valve’s production has brought in high tech rubber and valve manufacturing technology from Europe.

2.It has overcome the defects of rubber aging and rust.To achieve the purpose of good sealing,this valve use the microelastic deformation’s compensation effect which is produced by elastic damper.

Application:

1.Tap water;
2.Sewage;
3.Seawater,water treatment;
4.Environment protection;
5.Construction;
6.Fire control;
7.Oil;
8.Chemical industry;
9.Power;
10.Food;
11.Medicine.
