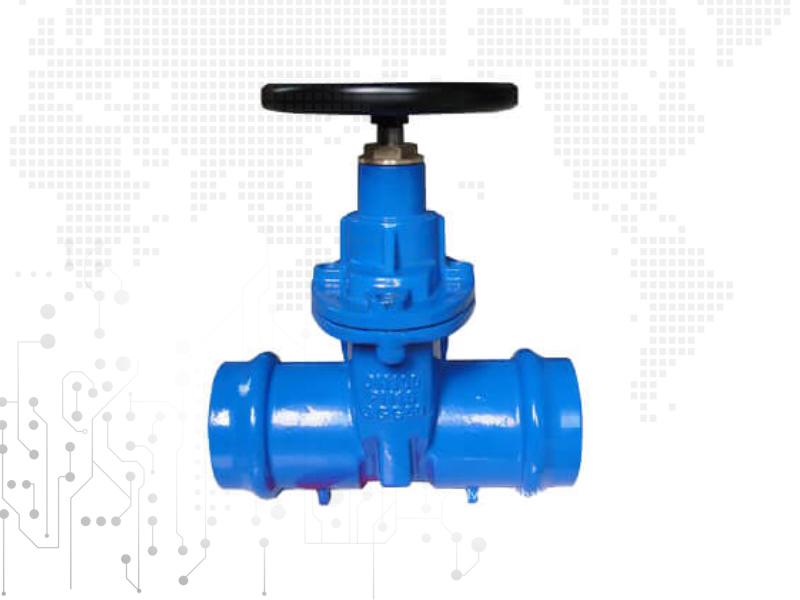

Weld Type Gate Valve

Features: Product model: Z61X-10
Nominal DN: DN50-300
Nominal pressure: PN1.0/1.6mpa
Applicable temperature: ≤80 ℃
Applicable medium: water, steam, oil
Body material: Cast Iron:
Connection: welding

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Adoptive standards
  • Features
  • Application
  • Inquiry

Product parameter:

Name Material
Body CI、QI
Stem CI、QI
Seat NBR、EPDM
Stem 2Cr13、Stainless ;steel
Packing  NBR、EPDM、Neoprene、PTFE
DN L(mm) D1(mm) C H
50 250 63 90 241
65 270 75 110 271
80 280 90 120 297
100 300 110 130 334
125 325 125 140 375
150 350 160 150 448
200 400 200 170 562
250 450 250 180 664
300 500 315 210 740

Adoptive standards:

Product name: Weld type gate valve
Product model: Z61X-10
Nominal DN: DN50-300
Nominal pressure: PN1.0/1.6Mpa
Applicable temperature: ≤80 ℃
Applicable medium: water, steam, oil
Body material: Cast Iron
Connection: welding Welding connection valve for the nominal pressure PN16.0-32.0Mpa and working temperature is equal to or less than 540 ℃
(which P57170V working temperature of the as 570 C) oil, chemical, hydraulic, fire station in a variety of systems, piping, cut off
or connected piping media. For medium is water, oil, and other acidic medium. Mode of operation is manual, gear, electric, etc..

Features:

1.Small fluid resistance, the sealing surface by the erosion and erosion medium. Opening and closing more effort.
2.Media flow unrestricted, non spoiler, do not reduce the pressure. Form a simple, short length of the structure, good manufacturing process, wide application range.
3.Light weight: body made of made of high-grade cast ductile iron, the weight than the traditional gate valve weight is reduced about 20% ~ 30%, easy installation and maintenance.

Application:

1.Natural gas;

2.Oil;

3.Chemical industry;

4.Urban construction;

5.Environmental protection and other industries.
