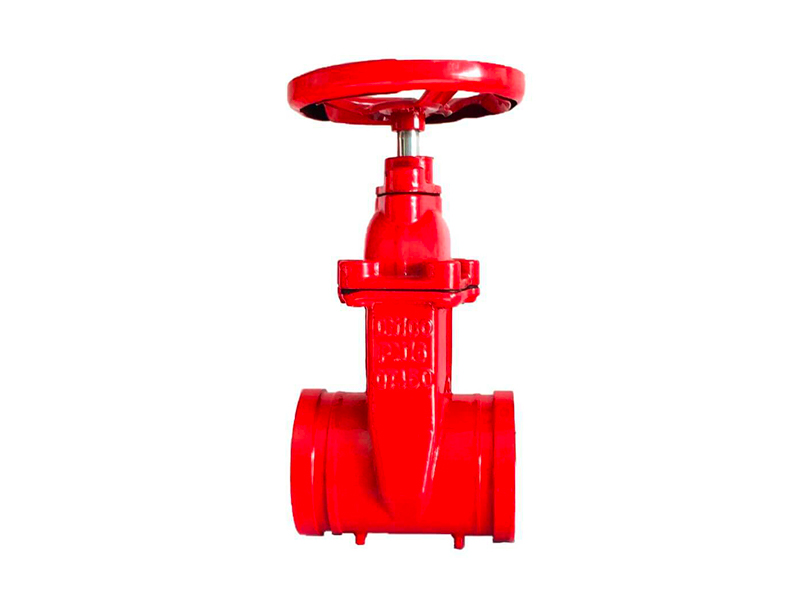

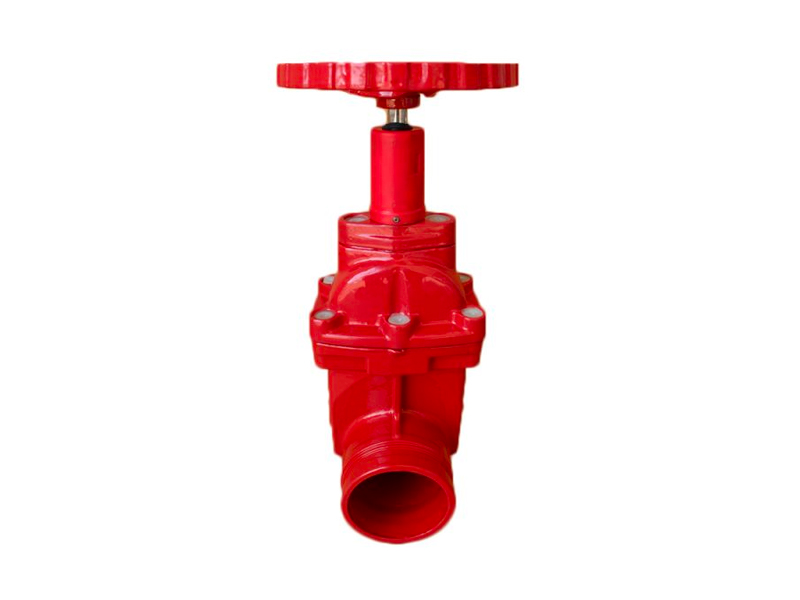

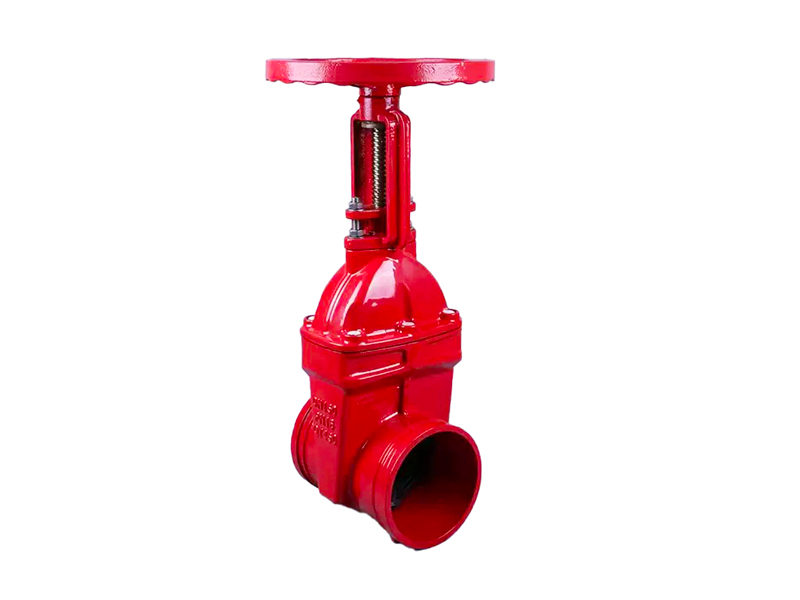

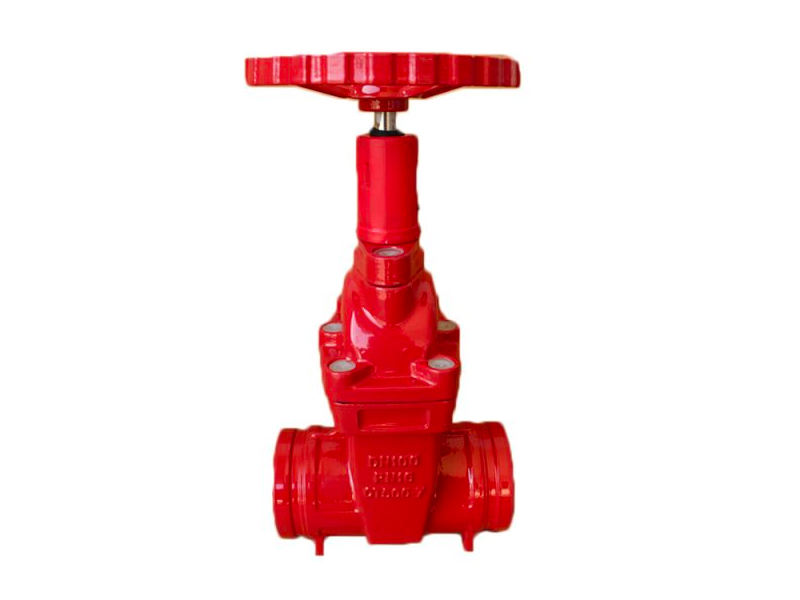

UL/FM fire protection groove ends gate valve

Features: Size: DN50-DN200
Pressure Rating: PN10/PN16
Material: Gray iron, Ductile iron
Design Standard: EN1171,EN1074,AS2638
Inspection Standard: EN117
Application medium: Drinking water , sewage , seawater , irrigation or other neutral liquid
Application Temperature: -40C°-150C°

We're here to help:
Easy ways to get the answers you need.

  • Parameter
  • Standards&Features
  • Case
  • Application
  • Inquiry

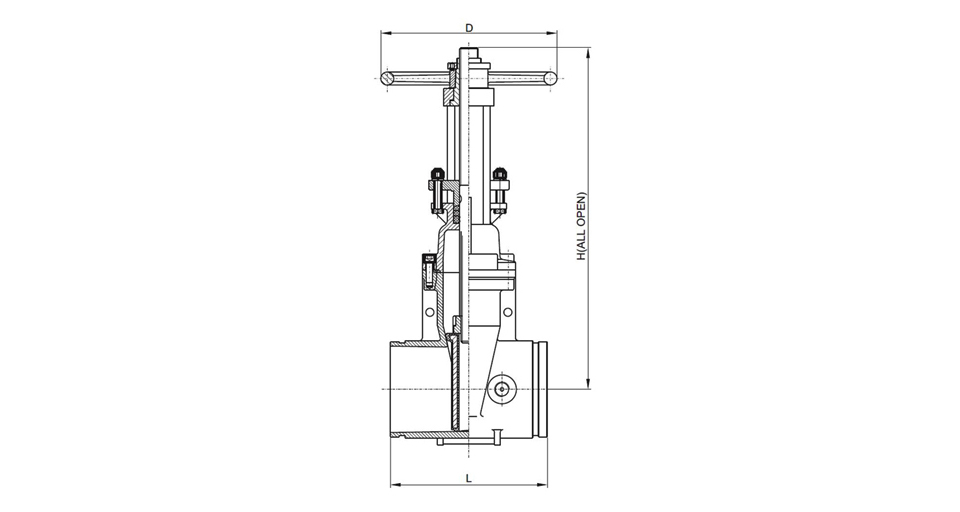

Parameter:

What is UL/FM fire protection groove ends gate valve?

UL/FM fire protection groove ends gate valve is a type of valve specifically designed for fire protection systems. These valves are tested and approved by Underwriters Laboratories (UL) and Factory Mutual (FM) to meet their stringent standards for fire protection equipment.

The valve has a grooved end connection, allowing it to be easily installed using mechanical couplings in a fire protection system. The gate valve has a gate or wedge that can be raised or lowered to control the flow of water or other fire suppression agents through the system.

UL/FM fire protection groove ends gate valves are typically made of ductile iron or cast iron and have a resilient seat to ensure a tight seal when the valve is closed. They are also designed to be corrosion-resistant and durable, ensuring that they will function reliably in the harsh conditions of a fire protection system.





SIZE

Pipe O.D

OD

Groove Dia

Gasket Seat

Groove Width

Groove Depth

IN

DN

ɸA

ɸB

C

D

t

2-1/2″

65

73

73

69.09

15.88

7.95

1.96

3″

80

88.9

88.9

84.94

15.88

7.95

1.98

4″

100

114.3

114.3

110.08

15.88

9.53

2.11

6″

150

168.3

168.3

163.96

15.88

9.53

2.17

8″

200

219.1

219.1

214.4

19.05

11.13

2.35



WESDOM Advantages

1.WESDOM patent products, patent certification

The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.

2.The product has an independent identity to ensure traceability

Each wesdom product has its own unique identification number, to ensure product traceability.

3.Provide material inspection report

All wesdom products can provide the material inspection report of the main parts.

4.One-stop service

One-stop service, we not only supply high quality products, also supply solutions and after-sales service.

5.WESDOM has a lot of project experience

We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.

6. WESDOM has a strict quality control system

WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.

Quality Control Process




Standards&Features:

Advantages of UL/FM fire protection groove ends gate valve!

1.Reliable Performance

UL/FM fire protection groove ends gate valves are rigorously tested and certified to ensure that they perform reliably in fire protection systems. This means that they will function properly when they are needed most, helping to prevent damage and loss of life in the event of a fire.

2.Easy Installation

The grooved end connection on the valve makes it easy to install in a fire protection system using mechanical couplings. This means that the valve can be installed quickly and easily, reducing installation time and labor costs.

3.Corrosion Resistance

These valves are designed to be corrosion-resistant, making them ideal for use in harsh environments where corrosion can be a problem. This ensures that the valve will last longer and require less maintenance over time.

4.Durable Construction

UL/FM fire protection groove ends gate valves are typically made of ductile iron or cast iron, which are known for their durability and strength. This means the valve can withstand high pressure and temperature conditions, ensuring it will function properly in a fire protection system.

5.Compliance with Standards

UL/FM fire protection groove ends gate valves are designed to meet the strict standards set by Underwriters Laboratories and Factory Mutual. This ensures that the valve is safe, reliable, and compliant with industry standards.

Case:

Tanzania Water Project

Water project of a factory in Tanzania

Main products: Gate Valves, Butterfly Valves, Check Valves, Pipe Fittings, etc.

Client feedback:

The customer sent us the installation pictures of the WESDOM product in the working condition project, and the feedback quality is very good, and will maintain a long-term cooperative relationship with WESDOM;

Project pictures:





Application:

UL/FM fire protection groove ends gate valves are specifically designed for use in fire protection systems, where they play a critical role in controlling the flow of water or other extinguishing agents. Some common applications include:

1. Commercial and residential buildings:

UL/FM fire protection groove ends gate valves are used in commercial and residential buildings as part of the automatic sprinkler systems. They provide reliable and precise control of the water flow to extinguish fires, and their grooved ends make them easy to install and maintain.

2. Industrial facilities:

UL/FM fire protection groove ends gate valves are used in industrial facilities, such as factories and warehouses, to provide fire protection in case of an emergency. They are often installed in pipelines that carry flammable liquids or gases.

3. Oil and gas industry:

UL/FM fire protection groove ends gate valves are used in the oil and gas industry to provide fire protection in drilling rigs, pipelines, and other equipment. They are often installed in areas with a fire or explosion risk.

4. Power generation:

UL/FM fire protection groove ends gate valves are used in power plants to provide fire protection in boilers, turbines, and other equipment. They are often installed in areas with a fire or explosion risk.

Overall, UL/FM fire protection groove ends gate valves are well-suited for applications where reliable and precise control of water flow is critical to extinguishing fires. They are widely used in many industrial and commercial processes and are essential to fire protection systems.
