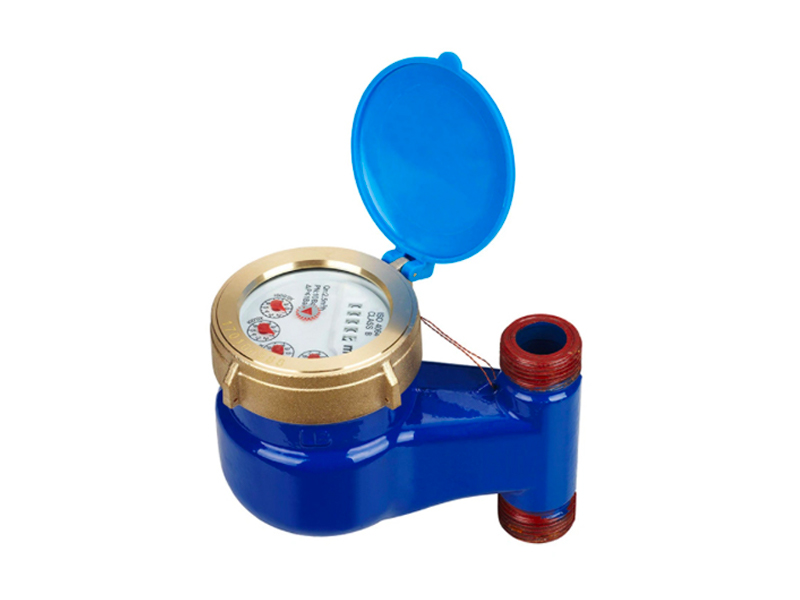

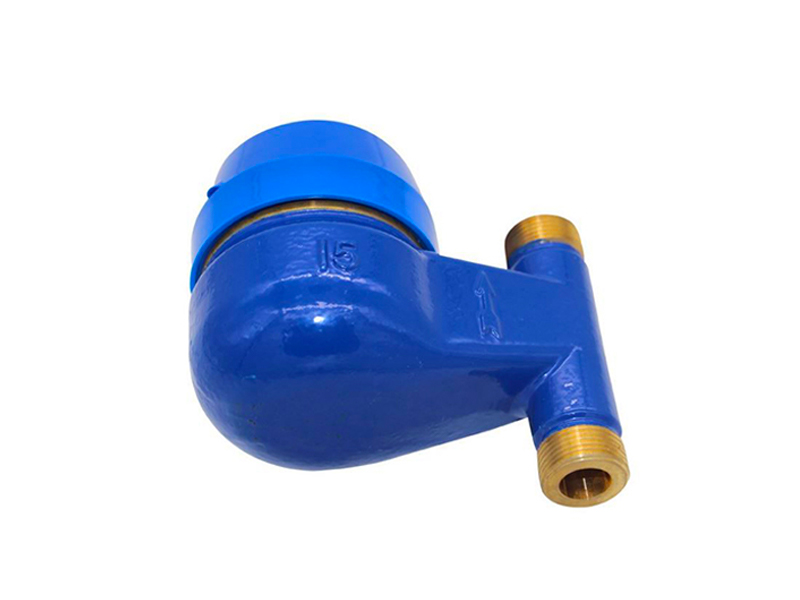

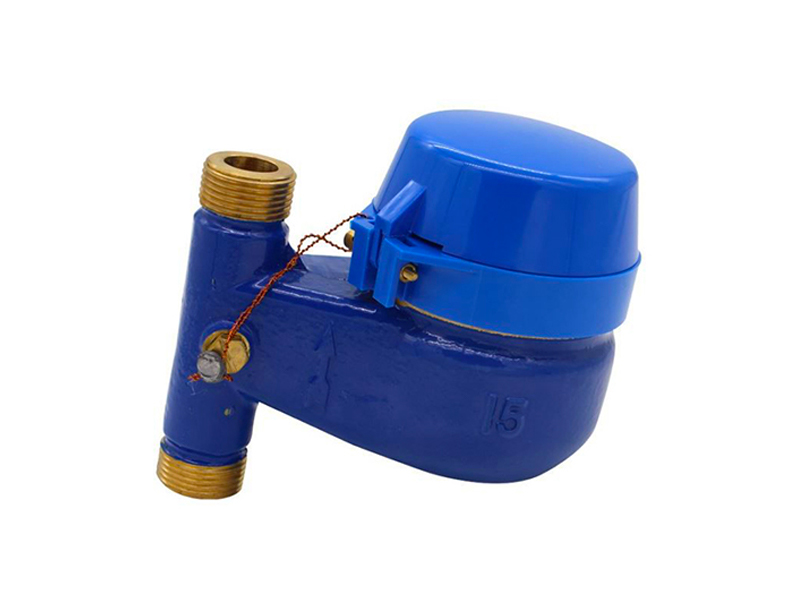

Vertical Type Water Meters

 Features

--Magnetic Drive, Lower transmission resistance.

--Magnetic shield, for external magnetic field protection.

--Sealed dry register ensures long time clear reading.

--External regulating device.

--Accresscries: 2pcs coupling, 2pcs coupling nuts and 2pcs washers.



 Standards Compliance

Technical data conforms to international standard ISO 4064.



 Optional Features

--Register Sealed type: Dry type; Super-dry type.

--Accuracy: R=80.

--Size: 15~50mm.

--Cold / hot water.

--Non return valve.

--Reed switch option.

--Several lengths and connections available on request.

--Thread end type: BSP / NPT.



 Working Conditions

--Water temperature: 0.1 C~40C for cold water meter.

--0.1C~90C for hot water meter.

--Water pressure:≤1.6Mpa (16 bar).



 Matters needing attention during installation:

--The meter should be installed in vertical position with the direction of the flow as indicated by the arrow cast in the meter body with the register face upwards.

--Pipeling must be flushed before installation.

--The meter should be constantly full of water transportation.



 Maximum Permissible Error

--ln the lower zone from qmin inclusive up to but excluding qt is土5%.

--ln the upper zone from qt inclusive up to and including qs is土2%; 土3% for hot water meter.



Project name: Cameroon customer single flow water meter and volumetric water meter order

Customer name: dealer customer in Cameroon

Main products: single-flow water meters and volumetric water meters

Customer requirements: project engineering and sales

Customer feedback: All items are of great quality!

wesdom is a very trustworthy friend. Every time the products acquired are great, we will establish a long-term cooperative relationship with wesdom!



Measuring the volume of cold portable water passing through the pipeline. Also suitable for pure water.
