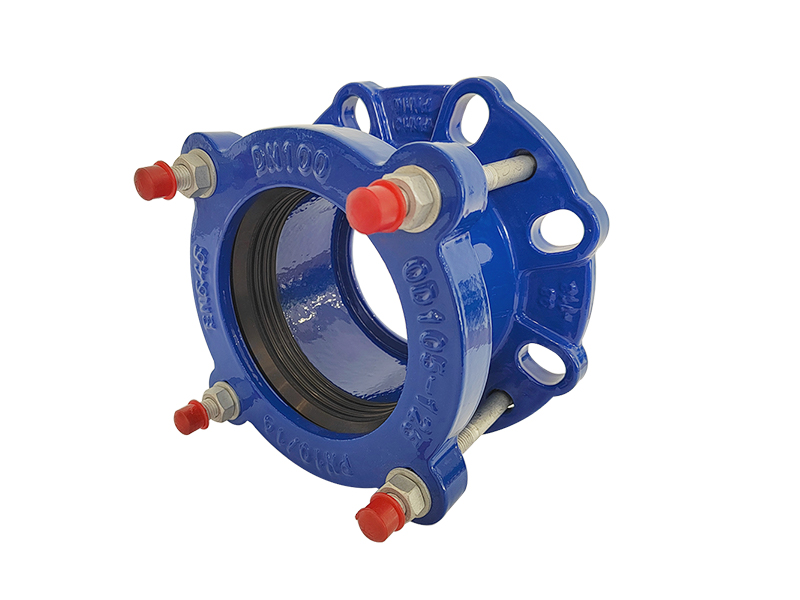

Flange Adaptor
Features:
Material: Iron
Place of Origin: Shadong, China (Mainland)
Connection: Flange
Model Number: DN80-800
Shape: Equal
Flange adaptor: Flange adaptor
We're here to help:
Easy ways to get the answers you need.

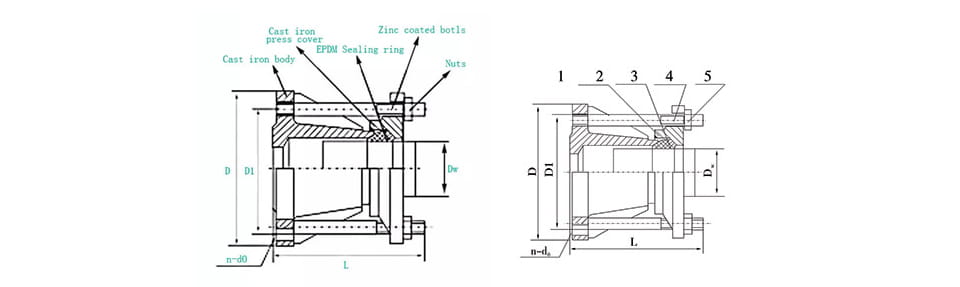

Parameter:
|
DN |
External diameter of pipe Dw |
Length |
Compensation |
Flange connecting dimension |
|||||||
|
Dw |
D0 |
L |
L1 |
0.6MPa |
1.0MPa |
||||||
|
D |
D1 |
n-d。 |
D |
D1 |
n-d。 |
||||||
|
65 |
76 |
76 |
340 |
105 |
50 |
160 |
130 |
4-Φ14 |
185 |
145 |
4-Φ18 |
|
80 |
89 |
89 |
190 |
150 |
4-Φ18 |
200 |
160 |
8-Φ18 |
|||
|
100 |
108 |
108 |
210 |
170 |
220 |
180 |
|||||
|
114 |
114 |
||||||||||
|
125 |
133 |
133 |
240 |
200 |
8-Φ18 |
250 |
210 |
||||
|
140 |
140 |
||||||||||
|
150 |
159 |
159 |
265 |
225 |
285 |
240 |
8-Φ22 |
||||
|
168 |
168 |
||||||||||
|
200 |
219 |
219 |
320 |
280 |
340 |
295 |
|||||
|
250 |
273 |
273 |
370 |
335 |
12-Φ18 |
395 |
350 |
12-Φ22 |
|||
|
300 |
325 |
325 |
350 |
130 |
65 |
440 |
395 |
12-Φ22 |
445 |
400 |
|
|
350 |
377 |
377 |
490 |
445 |
505 |
460 |
16-Φ22 |
||||
|
400 |
426 |
426 |
540 |
495 |
16-Φ22 |
565 |
515 |
16-Φ26 |
|||
|
450 |
480 |
480 |
595 |
550 |
615 |
565 |
20-Φ26 |
||||
|
500 |
530 |
530 |
645 |
600 |
20-Φ22 |
670 |
620 |
||||
|
600 |
630 |
630 |
755 |
705 |
20-Φ26 |
780 |
725 |
20-Φ30 |
|||
|
700 |
720 |
720 |
860 |
810 |
24-Φ26 |
895 |
840 |
24-Φ30 |
|||
|
800 |
820 |
820 |
590 |
220 |
130 |
975 |
920 |
24-Φ30 |
1015 |
950 |
24-Φ33 |
|
900 |
920 |
920 |
1075 |
1020 |
1115 |
1015 |
28-Φ33 |
||||
|
1000 |
1020 |
1020 |
1175 |
1120 |
28-Φ30 |
1230 |
1160 |
28-Φ36 |
|||
|
1200 |
1220 |
1220 |
1405 |
1340 |
32-Φ33 |
1455 |
1380 |
32-Φ40 |
|||
|
1400 |
1420 |
1428 |
1630 |
1560 |
36-Φ36 |
1675 |
1590 |
36-Φ42 |
|||
|
1500 |
1520 |
1528 |
1730 |
1660 |
- |
- |
- |
||||
|
1600 |
1620 |
1628 |
1830 |
1760 |
40-Φ36 |
1915 |
1820 |
40-Φ48 |
|||
|
1800 |
1820 |
1828 |
2045 |
1970 |
44-Φ40 |
2115 |
2020 |
44-Φ48 |
|||
|
2000 |
2020 |
2030 |
2265 |
2180 |
48-Φ42 |
2325 |
2230 |
48-Φ48 |
|||
|
2200 |
2220 |
2230 |
2475 |
2390 |
52-Φ42 |
2550 |
2440 |
52-Φ56 |
|||
|
2400 |
2420 |
2430 |
2685 |
2600 |
56-Φ42 |
2760 |
2650 |
56-Φ56 |
|||
|
2600 |
2620 |
2630 |
600 |
240 |
140 |
2905 |
2810 |
60-Φ48 |
2960 |
2850 |
60-Φ56 |
|
2800 |
2820 |
2830 |
3115 |
3020 |
64-Φ48 |
3180 |
3070 |
64-Φ56 |
|||
|
3000 |
3020 |
3030 |
3315 |
3220 |
68-Φ48 |
3405 |
3290 |
68-Φ60 |
|||
|
3200 |
3220 |
3230 |
3525 |
3430 |
72-Φ48 |
- |
- |
- |
|||
|
3400 |
3420 |
3430 |
3735 |
3640 |
76-Φ48 |
- |
- |
- |
|||
|
3600 |
3620 |
3630 |
3970 |
3860 |
80-Φ56 |
- |
- |
- |
|||
Standards&Features:
| Material: | Iron | Technics: | Casting | Type: | Flange |
| Place of Origin: | Shadong, China (Mainland) | Model Number: | DN80-800 | Brand Name: | VTM |
| Connection: | Flange | Shape: | Equal | Head Code: | round |
| Flange adaptor for ductile pipe: | Flange adaptor for ductile pipe | Flange adaptor: | Flange adaptor | Ductile iron Flange adaptor: | Ductile iron Flange adaptor |
1.ISO2531 Ductile iron Flange adaptor is designed only for ductile iron pipe complying with BS EN545 or ISO2531, it is cheaper than universal flange adaptor & coupling.It provides a quick, leak free and reliable method of joining plain ended pipes for the conveyance of water and sewage.
2.The coupling and flange adaptor will function as mechanical pipe joints for us in pipelines to facilitate the removal of valves and fittings without disturbing the pipelines and accommodate limited ground movement, expansion, contraction and angular misalignment of the pipeline.Case:
Tanzania Water Project
Main Products:
Gate Valves, Butterfly Valves, Check Valves, Pipe Fittings, etc.
Client feedback:
The customer sent us the installation pictures of the WESDOM product in the working condition project, and the feedback quality is very good, and will maintain a long-term cooperative relationship with WESDOM;

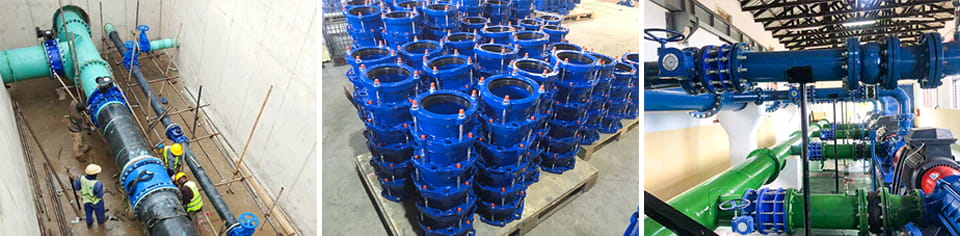

Project pictures:
Application:
Applied projects:Petroleum、Electricity、Metallurgy、Water、Sewage、Energy、Construction
