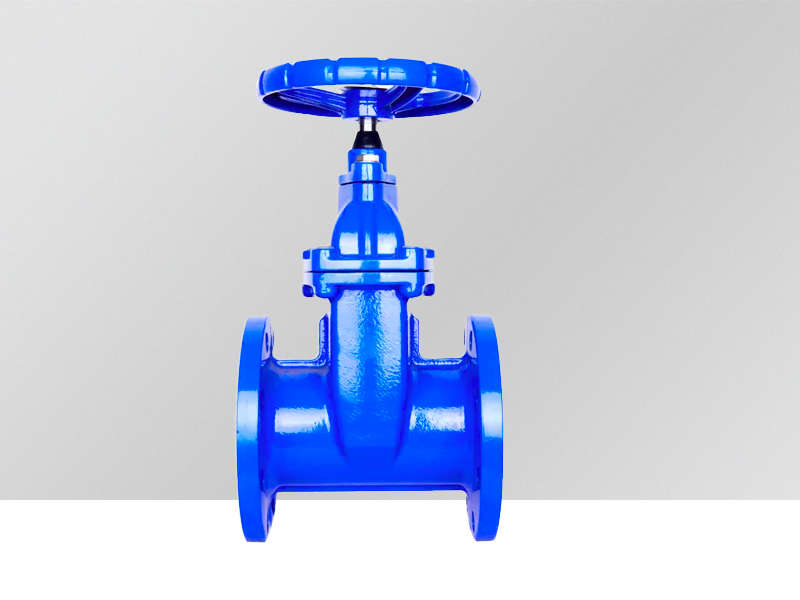

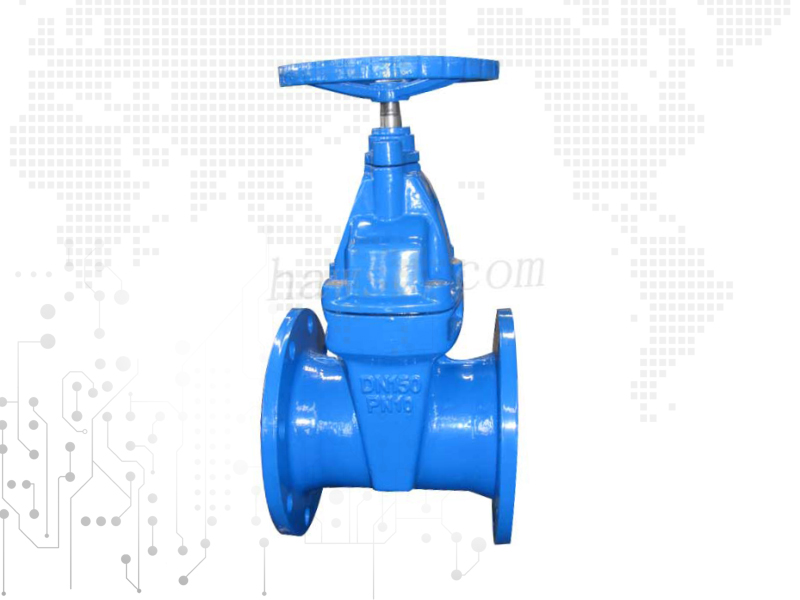

BS resilient seated gate valve

Features: Diameter: DN40-600
Pressure: PN1.0 / 1.6mpa
Pressure test: BS5163/ISO5208
Temperature: 0-80 ℃
Medium: Water, gas etc

We're here to help:
Easy ways to get the answers you need.

  • Parameter
  • Standards&Features
  • Case
  • Application
  • Inquiry

Parameter:

What is a soft sealing gate valve?

BS resilient seated gate valve is a new type of valve equipment. It is characterized by the use of soft materials such as rubber rings between wedge discs and seats to achieve sealing. Compared with the traditional hard and dense sealing valve, the sealing and performance have obtained a lot promote.

The soft sealing gate valve provides a tightening force through high quality spring and pressure plates so as to achieve a better sealing effect. It can adapt to different working environments and needs. The soft sealing gate valve has the advantages of sealing reliability, long service life, and energy saving and consumption reduction. It is widely used in the fields of power stations, pharmaceuticals, chemicals, and sewage treatment. Due to the sealing ring of the soft sealing gate valve being made of highly elastic materials, it has a long service life, and it is also helpful to reduce maintenance costs.

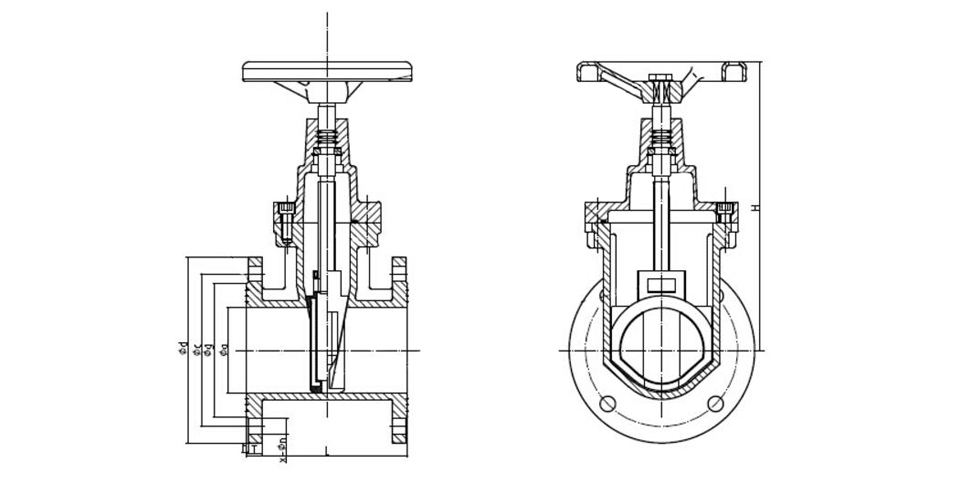

DN

L

H

D

D1

50

178

350

165

125

65

190

369

185

145

80

203

409

200

160

100

229

458

220

180

125

254

516

250

210

150

267

570

285

240

200

292

753

340

290

250

330

807

405

355

300

356

940

460

410

350

381

1002

520

470

400

406

1100

580

525

450

432

1210

640

585

500

457

1380

715

650

600

508

1455

840

770



 WESDOM Advantages

1.WESDOM patent products, patent certification

The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.

2.The product has an independent identity to ensure traceability

Each wesdom product has its own unique identification number, to ensure product traceability.

3.Provide material inspection report

All wesdom products can provide the material inspection report of the main parts.

4.One-stop service

One-stop service, we not only supply high quality products, also supply solutions and after-sales service.

5.WESDOM has a lot of project experience

We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.

6. WESDOM has a strict quality control system

WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.

 Quality Control Process



Standards&Features:

Advantages of soft sealing gate valve:

1. Overall rubber coating

The overall coating of the inside and outside of the disc is used with high quality rubber, and the domestic leading rubber vulcanization technology is used to keep the valve that maintains accurate geometric size. More importantly, the high stickiness between rubber and disc sticks the rubber stably together and has good elastic memory.

2. Strong corrosion resistance

The valve body is coated with epoxy resin powder to prevent the valve from corrosion and rust, and the valve can be used for the wastewater system. It is difficult to break, and the traditional gate valve has broken due to the impact or collision of other objects. The new valve body material is ductile iron, which significantly reduces the broken condition of this material.

3. Non -toxic epoxy resin coating

Due to the internal and non -toxic epoxy resin coating inside the valve body, the surface of the inside and outside of the valve is completely covered with rubber, rust or corrosion will not occur, which ensures that the water can drink.

4. The valve body uses precision casting

The valve body is made of precision, and the precise geometric shape makes it possible to ensure the sealing of the valve without any other processing inside the valve.

5. Better sealing performance

The soft sealing gate valve uses soft materials such as rubber to achieve sealing between the wedge disc and the seat. The sealing effect is better, it can adapt to a complex environment, and has higher sealing reliability and service life.

6. Lower maintenance costs

The sealing ring of the soft sealing gate valve is made of high elastic materials. It has a long service life and can save more maintenance costs. At the same time, the valve body is made of ductile iron. The weight is about 20%to 30% lighter than the traditional valve. It is easy to install and maintain, and can reduce maintenance costs and time.

7. Smaller traffic noise

The material of the soft sealing gate valve can effectively reduce the flow noise of the fluid through the valve, make it work more stable, and be suitable for occasions with higher requirements for flow noise.

Case:

Tanzania Water Project

Water project of a factory in Tanzania

Main products: Gate Valves, Butterfly Valves, Check Valves, Pipe Fittings, etc.

Client feedback:

The customer sent us the installation pictures of the WESDOM product in the working condition project, and the feedback quality is very good, and will maintain a long-term cooperative relationship with WESDOM;

Project pictures:





Application:

Soft sealing gate valves are commonly used in applications where a tight shut-off is required, and where the fluid is clean and free from abrasive particles.

Some common applications include:

1. Water supply:

Soft sealing gate valves are used in water supply systems, such as municipal water supply and building plumbing systems, for controlling the flow of clean water. They are often used in applications where a tight shut-off is required to prevent leaks or water loss.

2. HVAC systems:

Soft sealing gate valves are used in HVAC (heating, ventilation, and air conditioning) systems for controlling the flow of air or water. They are often used in building automation systems to regulate temperature and humidity levels.

3. Pharmaceutical industry:

Soft sealing gate valves are used in the pharmaceutical industry for controlling the flow of clean fluids in pipelines and equipment. They are often used in applications where a tight shut-off is required to prevent contamination.

4. Food and beverage industry:

Soft sealing gate valves are used in the food and beverage industry for controlling the flow of clean fluids in pipelines and equipment. They are often used in applications where a tight shut-off is required to prevent contamination and maintain hygiene standards.
