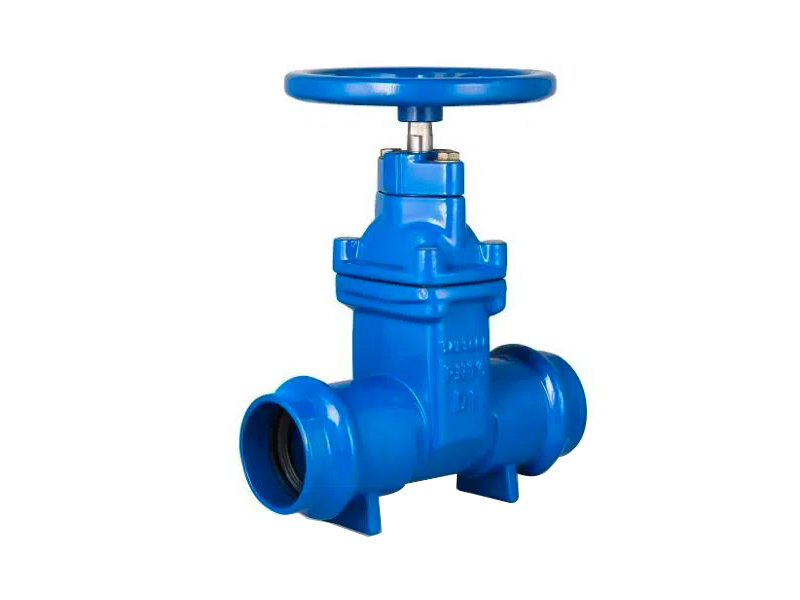

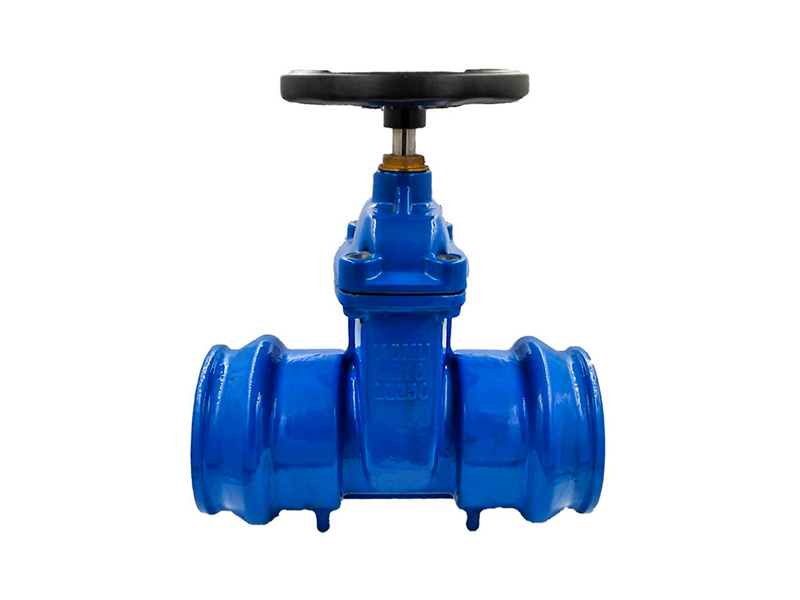

DIN F5 Socket connection soft seal gate valve

Features: Size: DN50-DN300
Pressure Rating: PN10/PN16
Material: Ductile Iron
Design Standard: DIN3352 F5, BS5163
Inspection Standard: EN12266
Application medium: Drinking water、sewage、seawater、irrigation,or other neutral liquid
Application Temperature: -40°C~150°C

We're here to help:
Easy ways to get the answers you need.

  • Parameter
  • Standards&Features
  • Case
  • Application
  • Inquiry

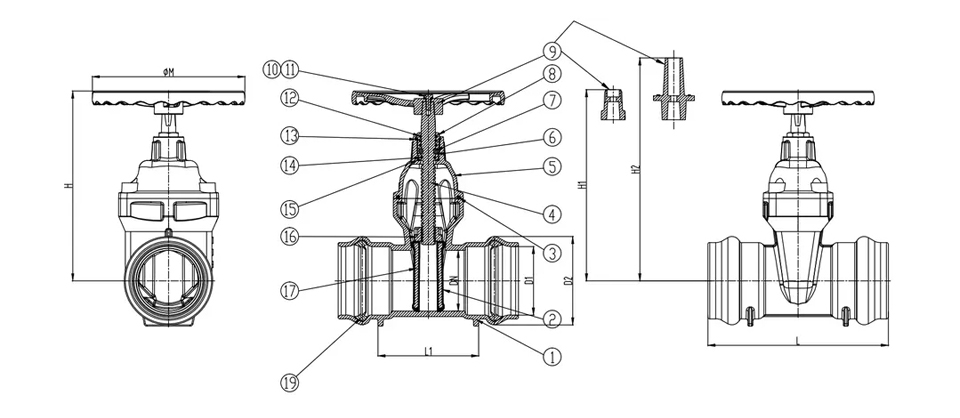

Parameter:



Size

L(mm)

PVC tubes(mm)

H(mm)

DN50

250

63

280

DN65

270

75

305

DN80

280

90

350

DN100

300

110

390

DN125

325

125

470

DN150

350

160

525

DN200

400

200

630

DN250

450

250

780

DN300

500

300

870

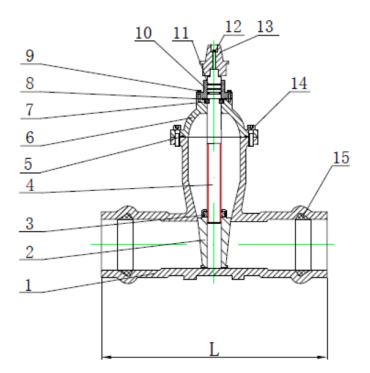

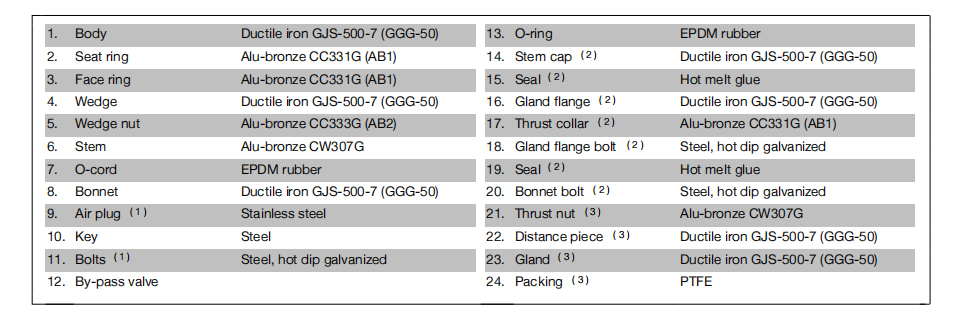

Main Raw Material



1

Body

Ductile Iron

9

Top-nut

Brass

2

Wedge

Ductile Iron+EPDM

 10

Washer

PTFE

3

Stem

Stainless steel

11

Thrust collar

Brass

4

Wedge Nut

Brass

12

Washer

PTFE

5

Bonnet

Ductile iron

13

Dust Cover

NBR

6

Bonnet gasket

EPDM rubber

14

Handwheel/Cap

Ductile Iron

7

Bonnet

Ductile Iron

15

Bonnet bolt

Steel gr.8.8

8

O-ring

EPDM rubber







Standards&Features:



Design standard

DIN3352 F5, BS5163

Flange drilling standard

EN1092-2 PN10/PN16

Face to face standard

EN558-1 Series 15

Hydraulic test standard

EN12266



Seat:1.1*PN(in bar), Body:1.5*PN(in bar)

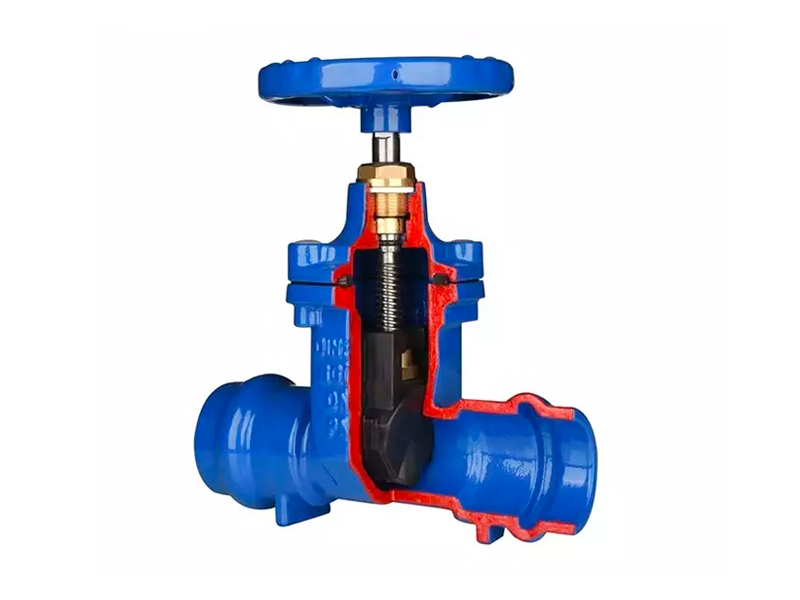

Features

The ductile iron core is fully vulcanized with EPDM rubber, no iron parts are exposed to the medium and the excellent rubber vulcanization prevents creeping corrosion underneath the rubber.

Guides in the wedge and on the valve body ensure a uniform closure, safe operation ensured as the guides prevent overloading of the stem.

Stainless steel stem with rolled threads for high strength.

The valve can replace stem seals under pressure.

Full bore.

Body inside and outside fusion bonded epoxy coating with excellent corrosion resistant performance.



Technical Parameters

Nominal diameter(mm)

50~300

50~300

Nominal pressure(Mpa)

 1.0

1.6

Testing pressure

Shell(Mpa)

1.5

2.4

Seal(Mpa)

1.1

1.76

Suitable temperature

-40°C150°C

Suitable medium

Drinking watersewageseawaterirrigation,or other neutral liquid.

Case:

Project Name: Tanzania Water Project

Client name: Water project of a factory in Tanzania

Purchased Products: Gate Valves, Butterfly Valves, Check Valves, Pipe Fittings, etc.

Customer needs: water project treatment

client feedback:

The customer sent us the installation pictures of the WESDOM product in the working condition project, and the feedback quality is very good, and will maintain a long-term cooperative relationship with WESDOM;

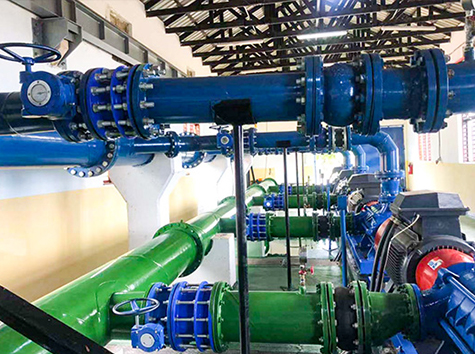

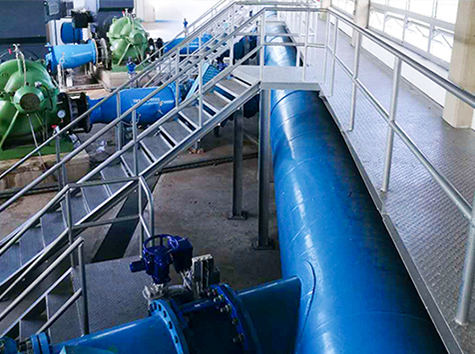

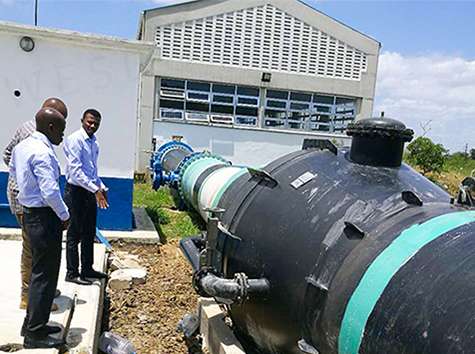

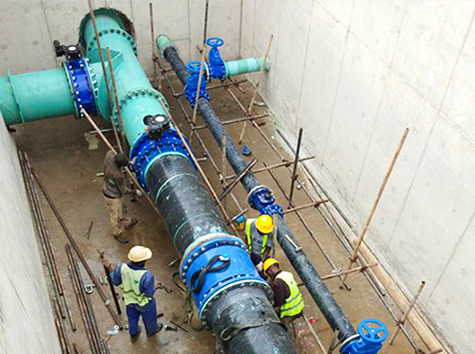

Project pictures:





Application:

DIN F5 are resilient seated gate valves, made of ductile iron, manufactured in accordance with severe product norms and relevant norms, and in conformity to EN ISO 9001;

Gate valve with socket ends for PVC pipes.

NRS Socket Gate Valve fully corrosion resistant construction.

Ductile iron wedge, fully vulcanized with EPDM rubber.

O-ring stem seals replaceable under pressure.

The Socket Gate Valve wedge is constructed of ductile iron and provided with protective wedge guide covers.

The bolt holes and body-to-bonnet flange surfaces are fully epoxy coated.


Drinking water

Sewage

Seawater

Irrigation
