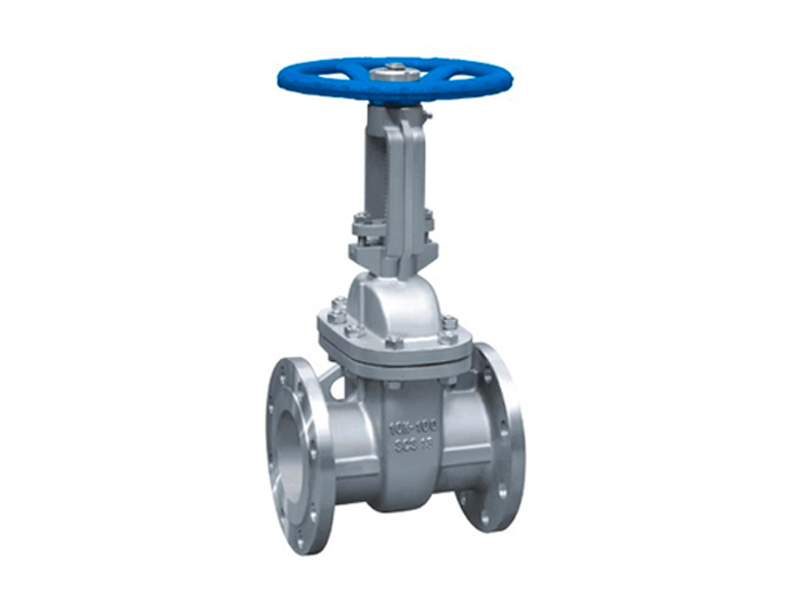

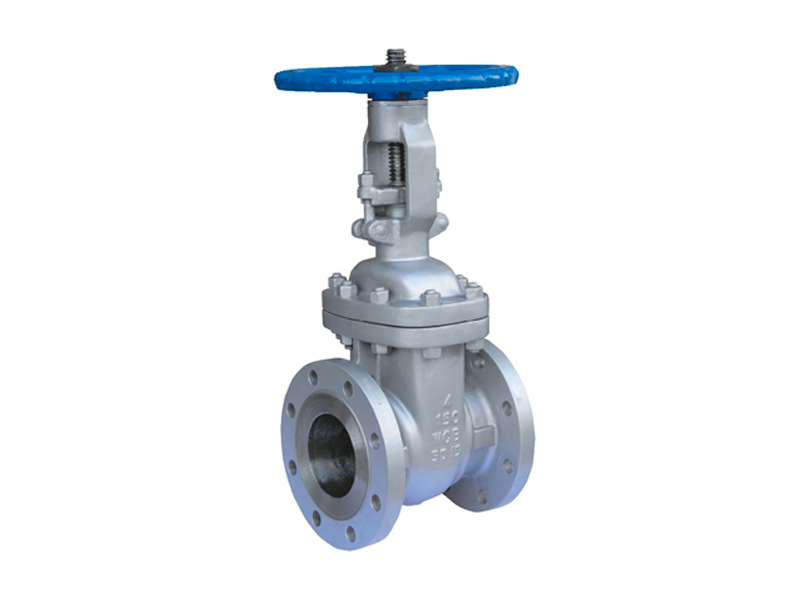

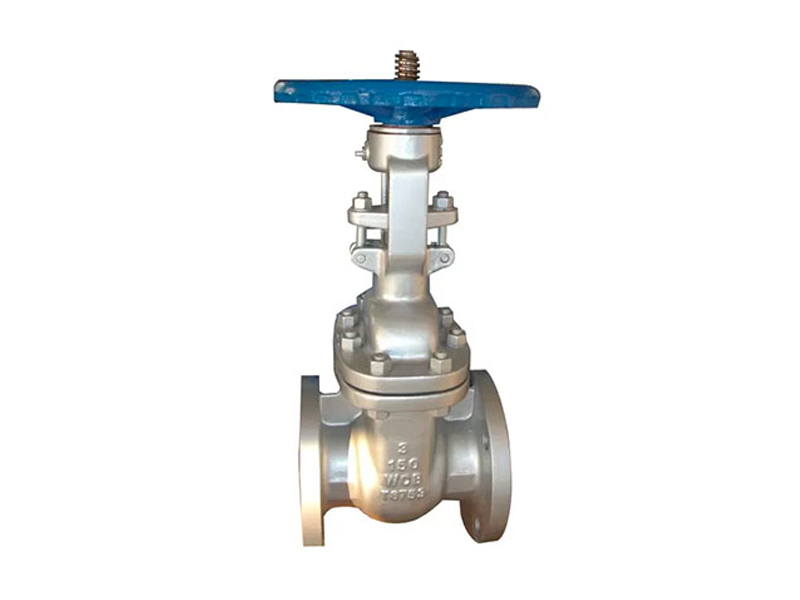

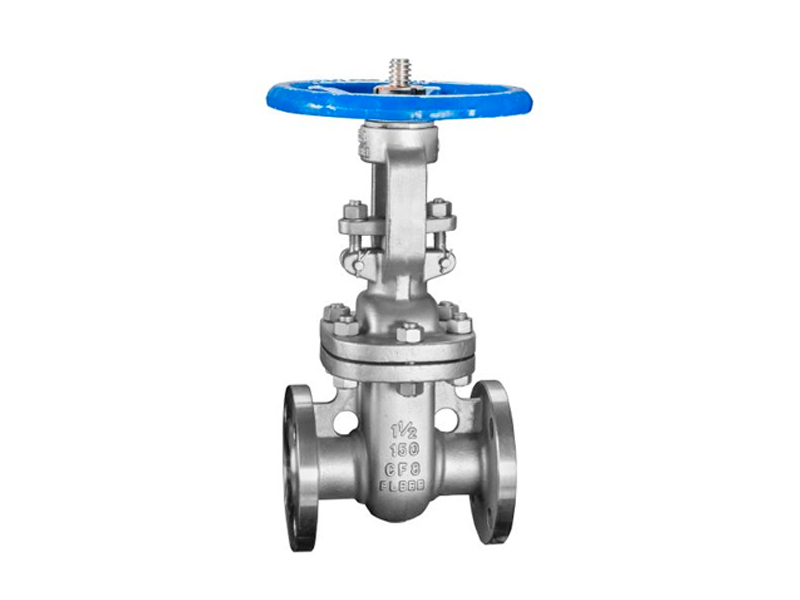

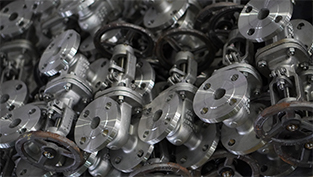

Stainless Steel Gate Valve

Features: Size: 1-1/4”~48”
Pressure Rating: PN10-PN64,150LB-600LB,10K-20K
Material: SS304, SS316
Design Standard: API600，BS5153,GB/T122234,JIS B2073
Inspection Standard: API 598,JB/T9092,JIS B2003
Application medium: Oil, Gas, Water, Steam Etc.,
Application Temperature: -29-425℃

We're here to help:
Easy ways to get the answers you need.

Leave Message GET PRICE download

Parameter
Standards&Features

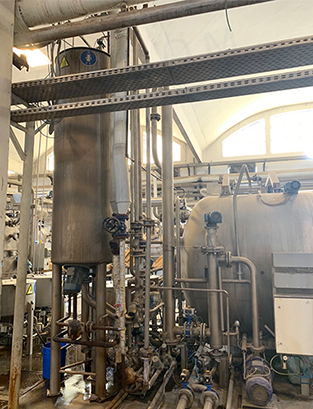

Case
Application
Inquiry

Parameter:

Stainless steel Gate valve is one kind of equipment which can be widely used on oil and steam pipelines in petrochemical plant and coal-fired power plants to connect or truncate the medium in pipelines. Only used for full turn on or full turn off. This valve has the advantage of compact structure,reasonable design,good rigidity,smooth channel and small flow resistance coefficient.double sealing surface were made to wedge type.

Pressure Size L d 195 H1 W W1 Weight(kg) NPS DN RF RTJ BW H.W G.O Class150 1/2″ 15 108 119 108 14 210 — 120 — 4 — 3/4″ 20 117 130 117 19 240 — 120 — 5 — 1″ 25 127 140 127 25 300 — 140 — 7 — 11/4″ 32 140 153 140 32 395 — 180 — 10 — 11/2″ 40 185 178 165 38 400 — 200 — 14 — 2″ 50 178 191 218 51 435 — 200 — 19 — 21/2″ 65 191 203 241 64 515 — 200 — 25 — 3″ 80 203 216 283 76 595 — 250 — 33.5 — 4″ 100 229 241 305 102 725 — 280 — 48.5 — 5″ 125 254 267 381 127 780 — 300 310 60.5 — 6″ 150 267 279 403 152 975 820 350 310 77 104 8″ 200 292 305 418 203 1150 1020 400 310 115 150 10″ 250 330 343 457 254 1380 1200 450 310 175 215 12″ 300 356 368 502 305 1545 1430 500 310 280 315 14″ 350 381 394 572 337 1733 1580 500 480 385 435 16″ 400 406 419 610 387 1915 1780 600 480 500 552 18″ 450 432 446 680 438 2122 1990 600 480 601 853 20″ 500 457 470 710 489 2520 2220 600 480 784 816 24″ 600 508 521 813 591 — 2800 — 600 1007 1185 26″ 650 559 — 864 633 — 2800 — 600 — 1550 28″ 70 810 — 914 684 — 3050 — 600 — 1880 30″ 750 810 — 914 735 — 3130 — 600 — 2300 32″ 800 711 — 965 779 — 3280 — 600 — 2550 34″ 850 762 — 1016 830 — 3500 — 600 — 2950 36″ 900 700 — 1016 874 — 3720 — 600 — 3390
