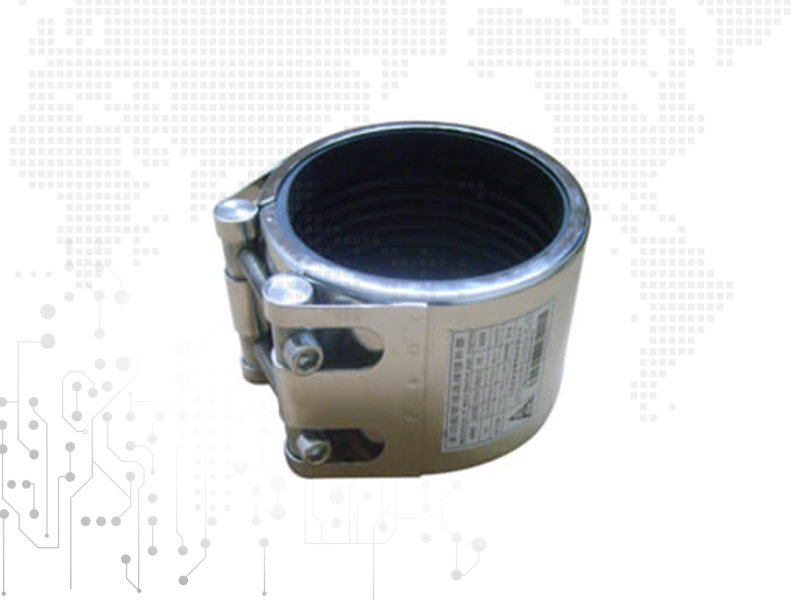

Single-Section Multi-Function Pipe Coupling MF-S

Features: Shell: M1:AISI 304 Stainless steel M2:AISI 316L Stainless steel
Bridge Plate: M1:AISI 304 Stainless steel M2:AISI 316L Stainless steel
Screw Hole Tie Rod/Tie Rod: M1:AISI 304 Stainless steel M2:AISI 316L Stainless steel
Screw: M1:AISI 304 Stainless steel M2:AISI 316L Stainless steel

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Adoptive standards
  • Features
  • Application
  • Inquiry

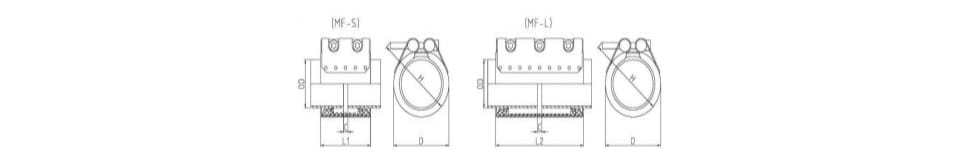

Product parameter:

;

Pipe O.D

O.D range
Ship

Industry ;

Dimensions

 Screws

Screw torque
OD(mm)
ODmin ;— ODmax PN WP C L1 L2 D H















clamped





(mm)

(bar)

(bar)

(mm)

(mm)

(mm)

(mm)

(mm)

M Nm
21.7 21 ; —  23 16 32 3 57

35 50 6 15
25 24.5 ; —  25.5 16 32 3 57

50 70 6 15
27.2 26 ; —  28 16 32 3 57

50 70 6 15
32 31.5 ; —  32.5 16 32 3 57

55 75 6 15
34 33 ; —  35 16 32 3 57

55 75 6 15
40 39.5 ; —  41.5 16 32 5 57

55 75 6 15
42 42 ; —  44 16 32 5 57

65 85 6 15
44.5

  44 ; —  45.1

16 32 5 57

65 85 6 15
48.6 47 ; —  49 16 32 5 57 100 70 90 6 15
54 53.3 ; —  54.6 16 32 5 57 100 70 90 8 30
57 56.3 ; —  57.7 16 32 5 57 100 80 100 8 30
60.3 59 ; —  62 16 32 5 80 139 85 105 8 30
63 62.2 ; —  63.9 16 32 5 80 139 85 105 8 30
76.1 75 ; —  78 14 28 5 80 139 100 120 8 30
79.9 78.8 ; —  80.8 14 28 5 80 139 100 120 8 30
88.9 88 ; —  92 14 28 5 107 203 110 130 10 50
108 106 ; —  110 14 28 5 107 203 130 150 10 50
110 108.9 ; —  111.2 14 28 5 107 203 130 150 10 50
114.3 112 ; —  116 14 28 5 107 203 135 155 10 50
118 116.6 ; —  119.2 14 28 5 107 203 140 160 10 50
125 123.6 ; —  126.5 14 28 5 107 203 150 185 10 50
133 131.5 ; —  134.4 14 28 5 107 203 160 190 10 50
140 137 ; —  143 14 28 5 116 203 165 195 12 80
159 157 ; —  161 12 24 5 116 203 185 215 12 80
165.2 163.3 ; —  166.7 12 24 5 116 203 190 210 12 80
168 166 ; —  170 12 24 5 116 203 195 225 12 80
170 168.2 ; —  171.9 12 24 5 116 203 195 225 12 80
200 198.2 ; —  201.5 8 16 10 155 255 240 270 14 100
219 217 ; —  221 8 16 10 155 255 250 280 14 100
254 250 ; —  256 8 16 10 155 255 285 315 14 100
273 271 ; —  275 8 16 10 155 255 305 335 14 100
315 313 ; —  317 7 14 10 155 255 340 375 14 100
325 323 ; —  327 7 14 10 155 255 360 390 14 100
355.6 352 ; —  359 7 14 10 155 255 385 420 14 100

Adoptive standards:

Components/ Material

M1 M2
Shell ;
AISI ;304 ;Stainless ;steel AISI ;316L ;Stainless ;steel
Bridge ;Plate AISI ;304 ;Stainless ;steel AISI ;316L ;Stainless ;steel
Screw ;Hole ;Tie ;Rod/Tie ;Rod AISI ;304 ;Stainless ;steel AISI ;316L ;Stainless ;steel
Screw AISI ;304 ;Stainless ;steel AISI ;316L ;Stainless ;steel
EPDM(Ethylene ;Propylene ;Diene ;Monomer)Rubber ;Sealing ;Sleeve Temperature:-20℃ ;to ;+120℃ Medium:Available ;for ;various ;kinds ;of ;water,drainage,air,solid ;and ;chemicals
NBR(Nitrile ;Rubber)Rubber ;Sealing ;Sleeve
Temperature:-20℃ ;to ;+80℃ Medium:Available ;for ;gas,oil,fuel ;and ;other ;hydrocarbon.
MVQ(Silicon ;Rubber)Rubber ;Sealing ;Sleeve Temperature ;Range:-75℃ ;to ;+200℃

Features:

Allowable angular deflection but does not provide restrain. It can provide safe, fast and steady connection and very good effect of anti-vibration and noise reduction, as well as function of distance compensation in pipe ends. Easy to be installed and disassemble and reusable.

Application:

Applied to connection of various kinds of metal pipes and composite materials of pipelines.
