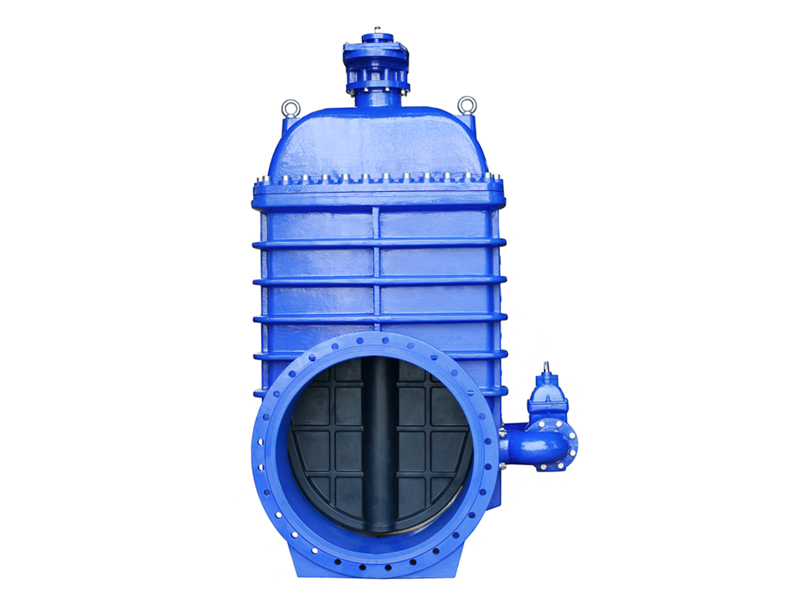

DN450-1200 Resilient Seated Gate Valve
Features:
Size: DN450 – 1200
Pressure Rating: PN16/PN25
Material: Ductile Iron
Design Standard: DIN3352 F4, LIGHT TYPE
Inspection Standard: EN12266
Application medium: Drinking water、sewage、seawater、irrigation,or other neutral liquid
Application Temperature: -40°C～150°C
We're here to help:
Easy ways to get the answers you need.

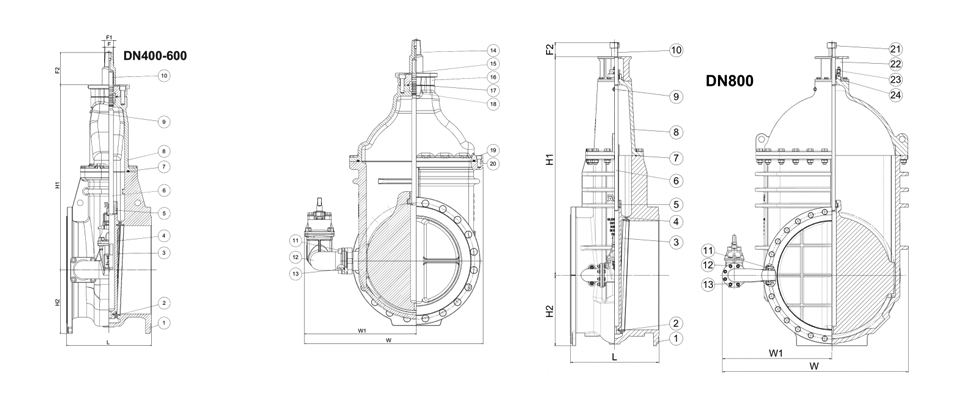

Parameter:
What is a resilient seated gate valve?
Resilient seated gate valve is a new type of valve equipment. It is characterized by the use of soft materials such as rubber rings between wedge discs and seats to achieve sealing. Compared with the traditional hard and densely sealing valve, the sealing and performance have obtained a lot promote. The soft sealing gate valve provides a tightening force through high quality spring and pressure plates, so as to achieve a better sealing effect. It can adapt to different working environments and needs. The resilient seated gate valve has the advantages of sealing reliability, long service life, and energy saving and consumption reduction. It is widely used in the fields of power stations, pharmaceuticals, chemicals, and sewage treatment. Due to the sealing ring of the resilient seated gate valve is made of high elastic materials, it has long service life and it is also helpful to reduce maintenance costs.
WESDOM Advantages
1.WESDOM patent products, patent certification
The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.
2.The product has an independent identity to ensure traceability
Each wesdom product has its own unique identification number, to ensure product traceability.
3.Provide material inspection report
All wesdom products can provide the material inspection report of the main parts.
4.One-stop service
One-stop service, we not only supply high quality products, also supply solutions and after-sales service.
5.WESDOM has a lot of project experience
We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.
6. WESDOM has a strict quality control system
WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.
Quality Control Process
Standards&Features:
|
Design standard |
DIN3352 F4, LIGHT TYPE |
|
Flange drilling standard |
EN1092-2 PN10/PN16 |
|
Face to face standard |
EN558-1 Series 14 |
|
Hydraulic test standard |
EN12266 |
|
|
Seat:1.1*PN(in bar), Body:1.5*PN(in bar) |
Advantages of resilient seated gate valve:
1. Overall rubber coating
The overall coating of the inside and outside of the disc is used with high quality rubber, and the domestic leading rubber vulcanization technology is used to keep the valve that maintains accurate geometric size. More importantly, the high stickiness between rubber and disc sticks the rubber stably together and has good elastic memory.
2. Strong corrosion resistance
The valve body is coated with epoxy resin powder to prevent the valve from corrosion and rust, and the valve can be used for the wastewater system. It is difficult to break, and the traditional gate valve has broken due to the impact or collision of other objects. The new valve body material is ductile iron, which significantly reduces the broken condition of this material.
3. Non -toxic epoxy resin coating
Due to the internal and non -toxic epoxy resin coating inside the valve body, the surface of the inside and outside of the valve is completely covered with rubber, rust or corrosion will not occur, which ensures that the water can drink.
4. The valve body uses precision casting
The valve body is made of precision, and the precise geometric shape makes it possible to ensure the sealing of the valve without any other processing inside the valve.
5. Better sealing performance
The resilient seated gate valve uses soft materials such as rubber to achieve sealing between the wedge disc and the seat. The sealing effect is better, it can adapt to a complex environment, and has higher sealing reliability and service life.
6. Lower maintenance costs
The sealing ring of the resilient seated gate valve is made of high elastic materials. It has a long service life and can save more maintenance costs. At the same time, the valve body is made of ductile iron. The weight is about 20%to 30% lighter than the traditional valve. It is easy to install and maintain, and can reduce maintenance costs and time.
7. Smaller traffic noise
The material of the resilient seated gate valve can effectively reduce the flow noise of the fluid through the valve, make it work more stable, and be suitable for occasions with higher requirements for flow noise.
Case:
Tanzania Water Project
Client feedback:
The customer sent us the installation pictures of the WESDOM product in the working condition project, and the feedback quality is very good, and will maintain a long-term cooperative relationship with WESDOM;

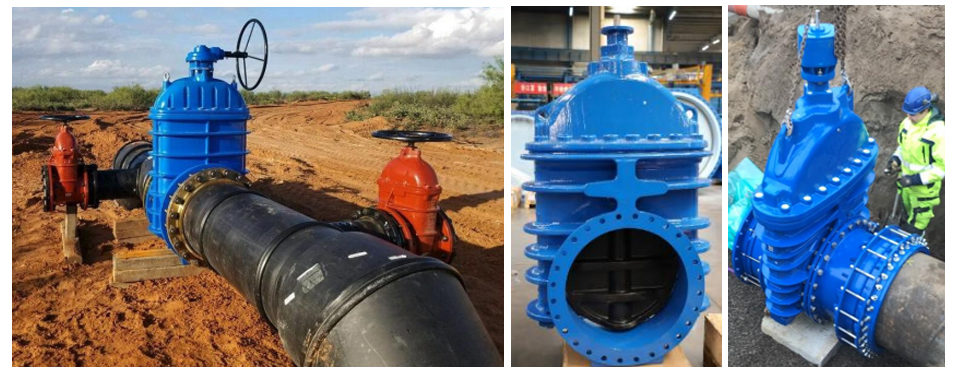

Project pictures:
Application:
Resilient seated gate valve is a kind of valve mainly used for cutting off and regulating the flow of media, which is widely used in many industries, especially in the following fields:
1. Petrochemical industry:
Resilient seated gate valve can be used in oil refining, chemical industry, and other fields, used to cut off and control various media, and flow.
2. Electric power:
Resilient seated gate valve can be used in power stations for steam engines, boilers, etc.
3. Sewage treatment:
Resilient seated gate valve can be used to control the flow of water, wastewater, sewage, and other media, the safety of water treatment equipment and the effect of sewage treatment has a great impact.
4. Iron and steel metallurgy:
Resilient seated gate valve can be used in the iron and steel metallurgy industry to control the flow and pressure of the medium to ensure the safety and stability of production.
5. Food and medicine:
