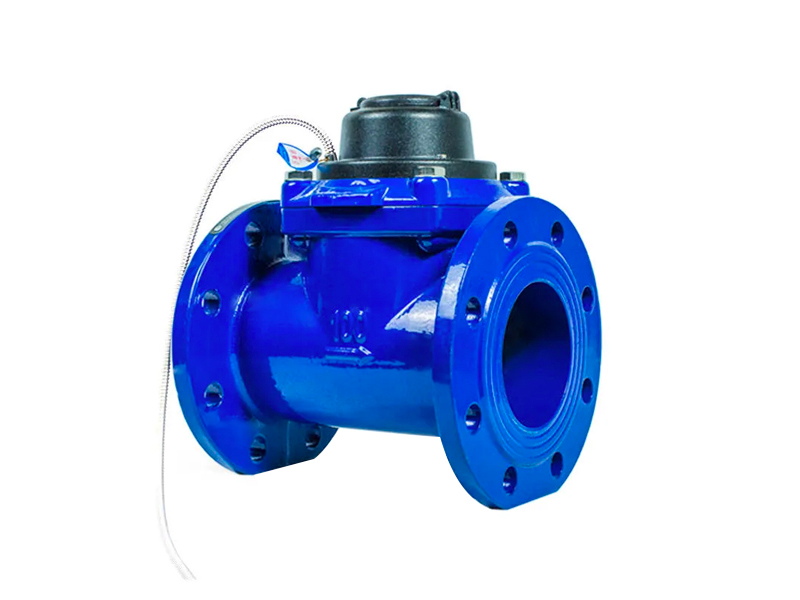

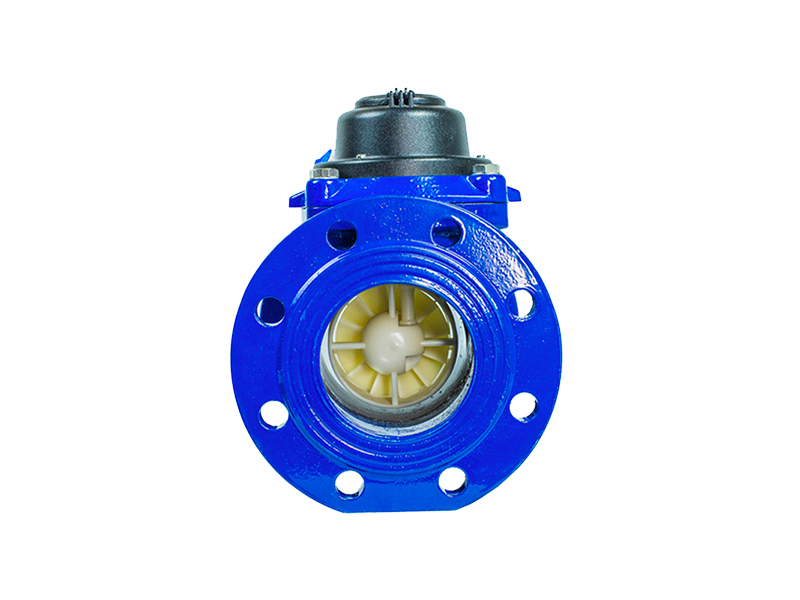

CI wotlman water meter with pulse output

Features: Size:  DN50~200mm
Pressure Rating: ≤1.0Mpa (1.6MPa on request)
Material: CI
Design Standard: Standards Compliance
Inspection Standard: Technical data conform to international standard ISO 4064/ISO91004
Application medium: Water
Application Temperature: 0.1℃~50℃ (0.1℃~90℃ for hot water meter)

We're here to help:
Easy ways to get the answers you need.

  • Parameter
  • Standards&Features
  • Case
  • Application
  • Inquiry

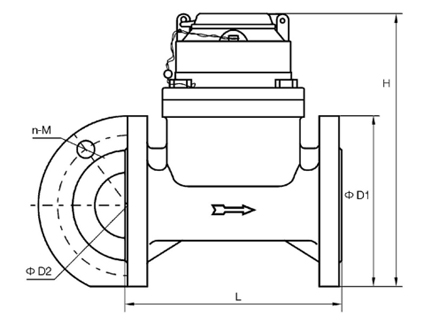

Parameter:


Type

Size

L(Length)

H(Height)

Connecting Flange









      D1(Outside Diameter)

D2(Bolt Circle Diameter)

Connecting Bolts(n-M)



mm







LXLC-50/DE

50

200

261

165

125

4-M16

LXLC-65/DE

65

200

271

185

145

4-M16

LXLC-80/DE

80

225

279

200

160

8-M16

LXLC-100/DE

100

250

289

220

180

8-M16

LXLC-125/DE

125

250

299

250

210

8-M16

LXLC-150/DE

150

300

319

285

240

8-M20

LXLC-200/DE

200

350

346

340

295

8-M20(1.0MPa)













12-M20(1.0MPa)

Standards&Features:

 Features

--Removable element structure, easy installation and maintenance;

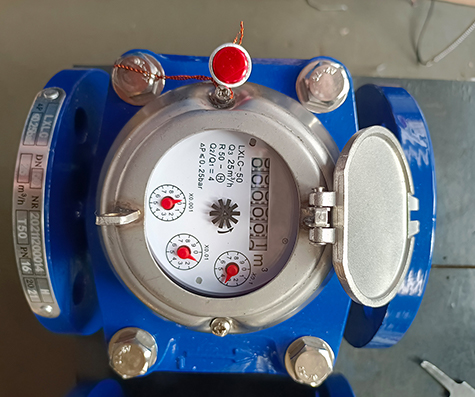

--Dry-dial, Magnetic drive;

--Large flow capacity, small pressure loss;

--Resist water hummer and pollution;

--Vacuum sealed register ensures the dial keep free from condensation and keep the reading clear in a long term service;

--Selected high quality materials for steady and reliable characteristic;

--Technical data conform to international standard ISO 4064/ISO9100;

--With high accuracy;

--Product accessories include connectors, filters, connection accessories, pipe accessories, Flange, filter.

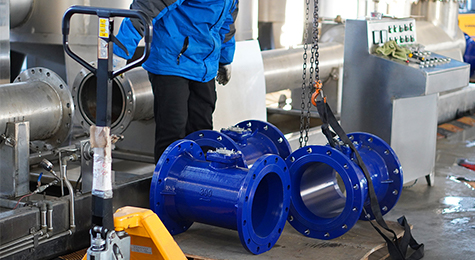

Case:

Project name:Indonesia - Drinking Water Supply Project

WESDOM water meter is applied to Indonesia drinking water supply project.

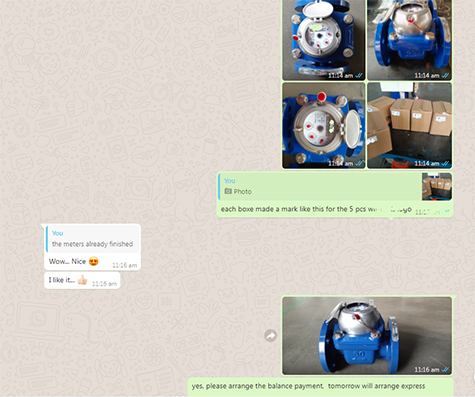

Customers are very pleasure after receiving our products. And then establish a long-term supply cooperation relationship with us!

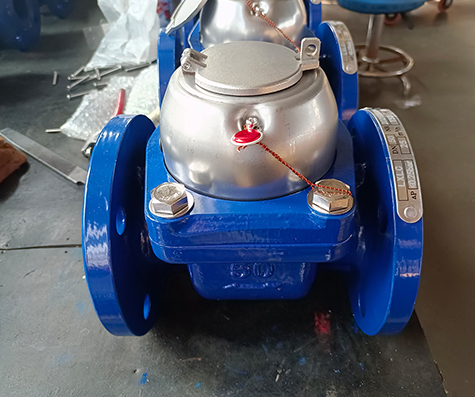

The main products: Flanged Vlotman water meter.








Application:

 --Measuring the volume of cold (hot) water passing through the pipeline
