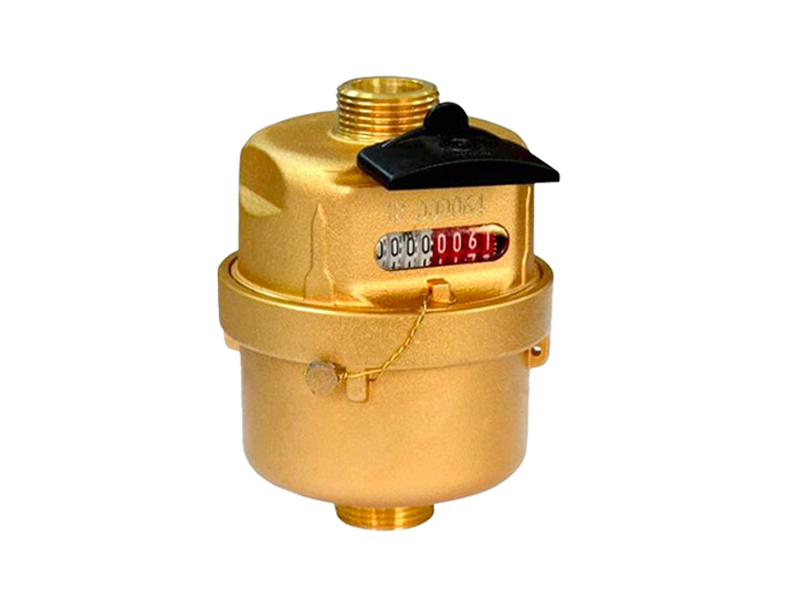

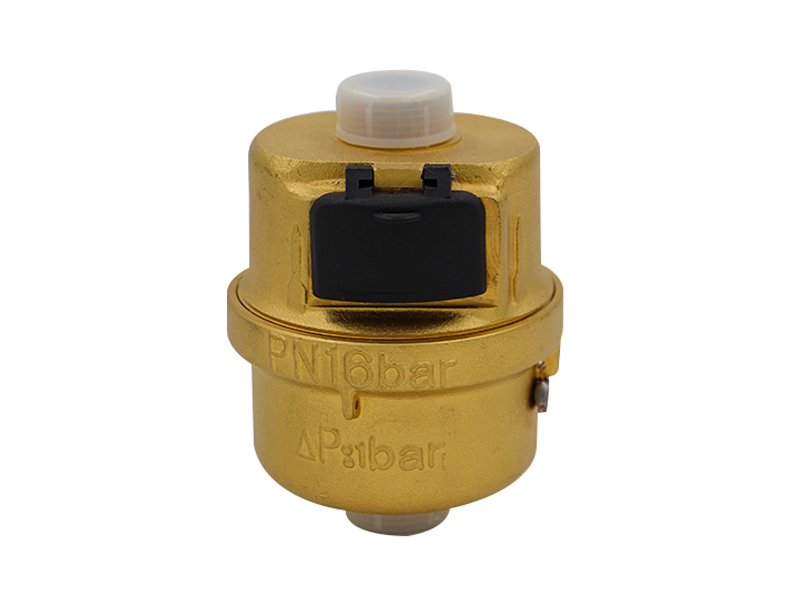

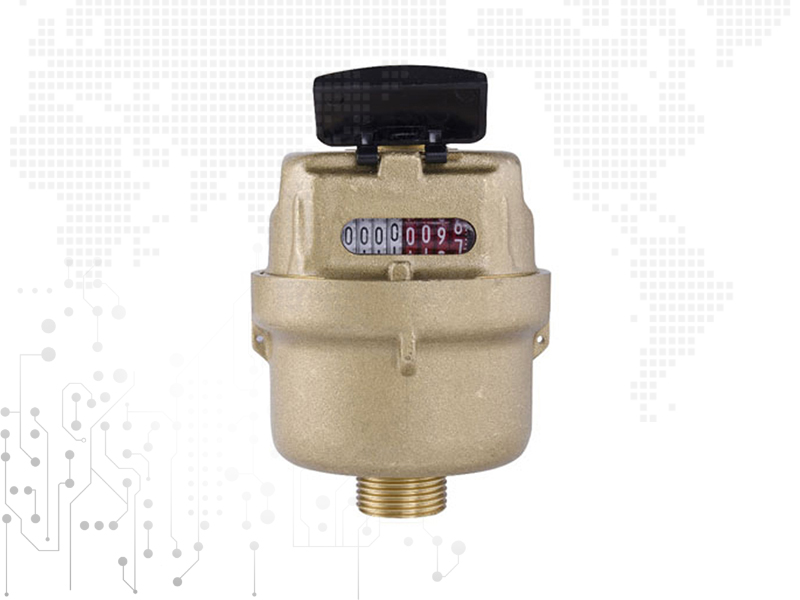

Piston water meter

Features: Size: DN15-50
Pressure Rating: ≤1.6Mpa (16 bar)
Material: Brass
Design Standard: Standards Compliance
Inspection Standard: Technical data conform to international standard lSO 4064
Application medium: Water
Application Temperature: 0.1 °C~40°C for cold water meter

We're here to help:
Easy ways to get the answers you need.

  • Parameter
  • Standards&Features
  • Case
  • Application
  • Inquiry

Parameter:

Meter Size

Class

qs
Max. Flow

qp
Noninal Flow

qt
Transitional Flow

qmin
Min. Flow

Min,
Reading

Max.
Reading

(mm)



m³/h

L/H

15/18

C

3

1.5

22.5

15

0.0001

9,999

D

17.25

11.25

20

C

5

2.5

37.5

25

0.0001

9,999

D

28.75

18.75

25

C

7

3.5

52.5

35

0.0001

9,999

D

40.25

26.25

40

C

20

10

150

100

0.0001

9,999

D

115

75

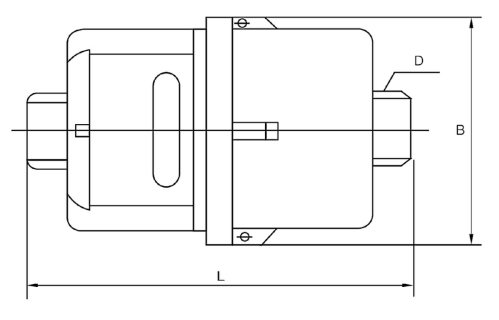

Meter Size

L

Width

Connection Thread

Weight

(mm)

mm

mm

kg

15/18

115/165/170

86/88


Standards&Features:

Features

--Low start-up flow rate.

--volumetric rotary piston principle of measurement.

--LXHY-15~20 is no location limitation for installation.

--Accuracy is not to be affected wherever installed at horizontal, vertical or inclined pipeline.

--Register is sealed with a special liquid to keep a clear reading in long term service.

--Mechanism uses high-quality material to ensure a stable characteristic.

--Accurate measurement with conformity to lSO

--4064 class C.

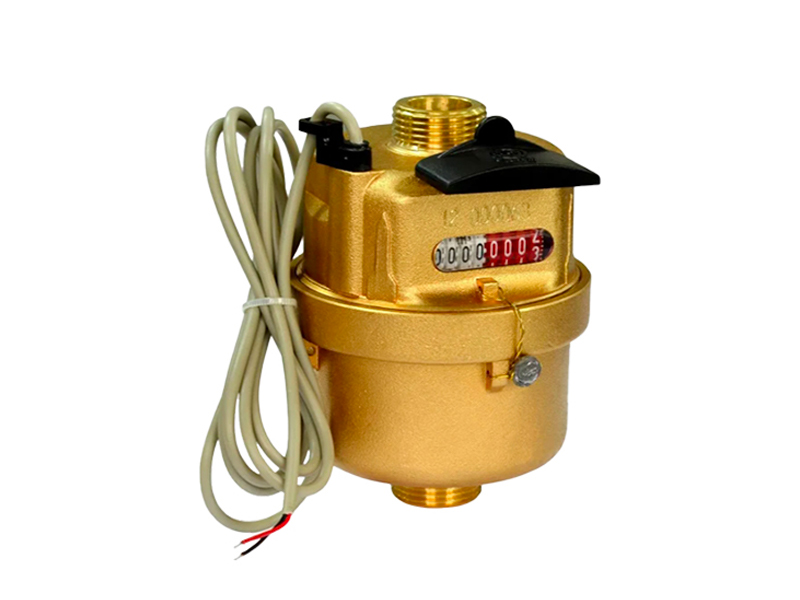

--On request, the series can be equipped with a kind of remote transmission device.



Application

Measuring the volume of cold portable water passing through the pipeline. Also suitable for pure water.



 Optional Features

--Register sealed type: Dry type; Semi-dry type; Super-dry type.

--Accuracy: R=80; 100;125;160.

--Size: 15~50mm.

--Cold / hot water.

--Non return valve.

--Reed switch option.

--Several lengths and connections available on request.

--Thread end type: BSP/NPT.



 Working Conditions

--The Max. Admissible water pressure 1.6MPa.

--Resisting water temperature: 50℃.



 Maximum Permissible Error


 Note

--Body material: Brass body / Plastic body.



--Size: Plastic body: DN15-20; Brass body: DN15-50.

Case:

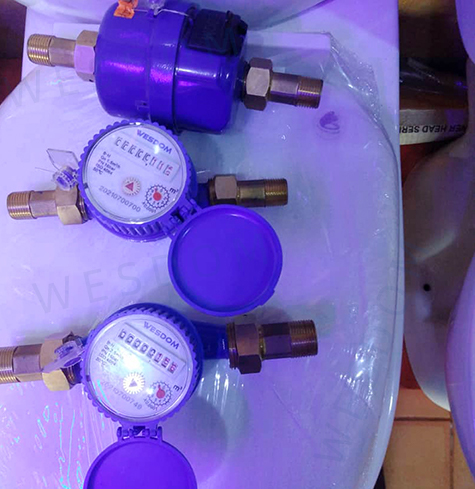

Project name: Cameroon customer single flow water meter and volumetric water meter order

Customer name: dealer customer in Cameroon

Main products: single-flow water meters and volumetric water meters

Customer requirements: project engineering and sales

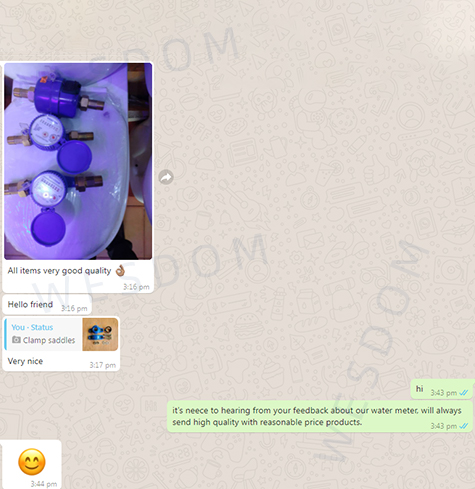

Customer feedback: All items are of great quality!

wesdom is a very trustworthy friend. Every time the products acquired are great, we will establish a long-term cooperative relationship with wesdom!



Application:

Measuring the volume of cold portable water passing through the pipeline. Also suitable for pure water.
