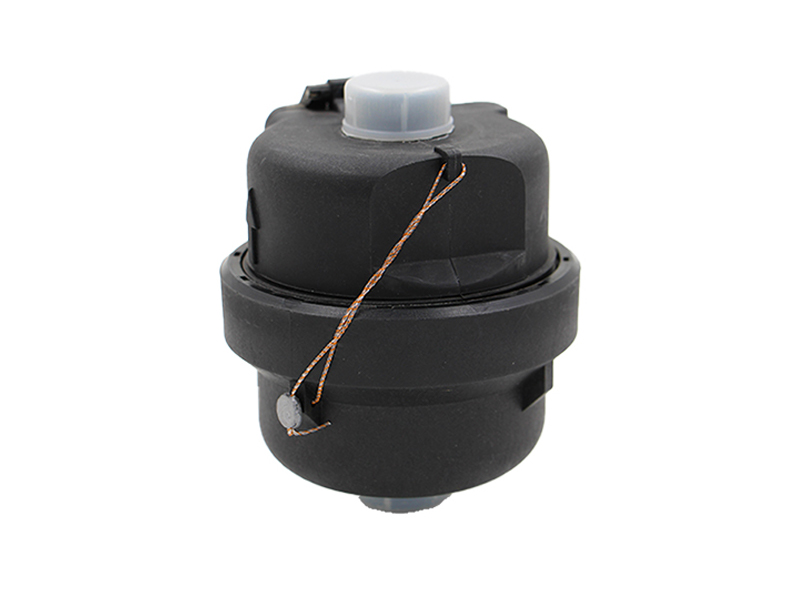

Plastic water meter
Features:
Size: Plastic body: DN15-20; Brass body: DN15-50;
Pressure Rating: ≤1.6Mpa (16 bar)
Material: Brass/plastic
Design Standard: Standards Compliance
Inspection Standard: Technical data conform to international standard lSO 4064
Application medium: Water
Application Temperature: 0.1 °C~40°C for cold water meter
We're here to help:
Easy ways to get the answers you need.
Parameter:
Main techinical:
|
Meter Size (mm)
|
Qn
|
Qt
|
Qmin
|
Max reading
|
Min reading
|
||
|
m³/h
|
m³/h
|
m³
|
|||||
|
A
|
B
|
A
|
B
|
||||
|
15
|
1.5
|
0.15
|
0.12
|
0.06
|
0.03
|
9999
|
0.0001
|
|
20
|
2.5
|
0.25
|
0.2
|
0.1
|
0.05
|
9999
|
0.0001
|
|
25
|
3.5
|
0.35
|
0.28
|
0.14
|
0.07
|
9999
|
0.0001
|

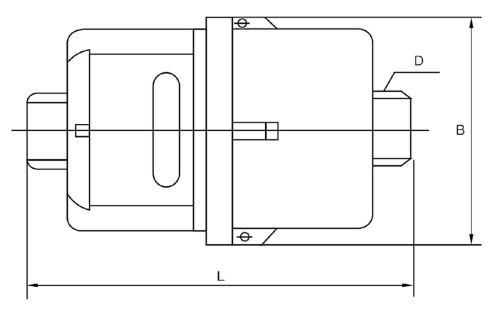

DIMENSIONS AND WEIGHT:
|
Meter Size (mm)
|
L
|
L1
|
B
|
H
|
Connecting Thread
|
KG
|
|
|
||||||
|
15
|
260
|
165
|
101
|
106
|
R1/2
|
0.78
|
|
20
|
260
|
195
|
101
|
106
|
R3/4
|
0.85
|
|
25
|
350
|
225
|
103
|
115
|
R1
|
1.2
|
Standards&Features:
Features
--Low start-up flow rate.
--volumetric rotary piston principle of measurement.
--LXHY-15~20 is no location limitation for installation.
--Accuracy is not to be affected wherever installed at horizontal, vertical or inclined pipeline.
--Register is sealed with a special liquid to keep a clear reading in long term service.
--Mechanism uses high-quality material to ensure a stable characteristic.
--Accurate measurement with conformity to lSO
--4064 class C.
--On request, the series can be equipped with a kind of remote transmission device.
Application
Measuring the volume of cold portable water passing through the pipeline. Also suitable for pure water.
Optional Features
--Register sealed type: Dry type; Semi-dry type; Super-dry type.
--Accuracy: R=80; 100;125;160.
--Size: 15~50mm.
--Cold / hot water.
--Non return valve.
--Reed switch option.
--Several lengths and connections available on request.
--Thread end type: BSP/NPT.
Working Conditions
--The Max. Admissible water pressure 1.6MPa.
--Resisting water temperature: 50℃.
Maximum Permissible Error
Note
--Body material: Brass body / Plastic body.
--Size: Plastic body: DN15-20; Brass body: DN15-50.
