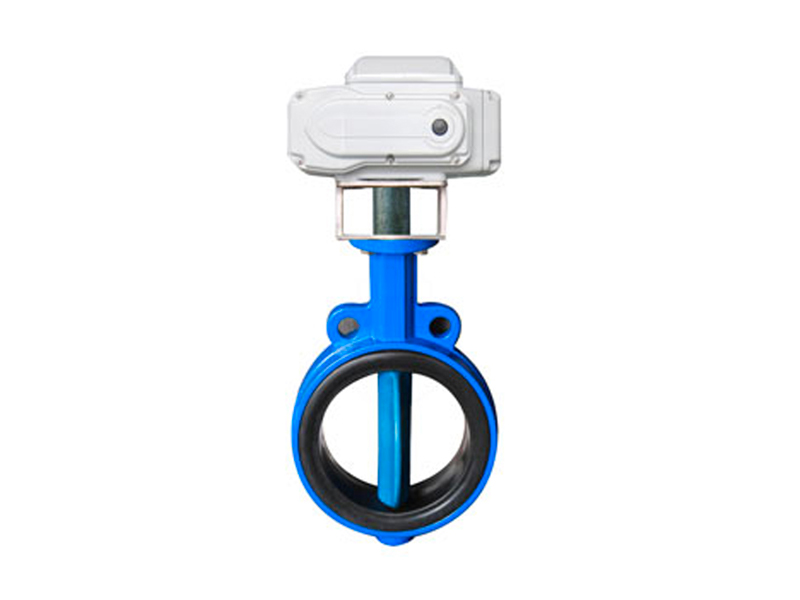

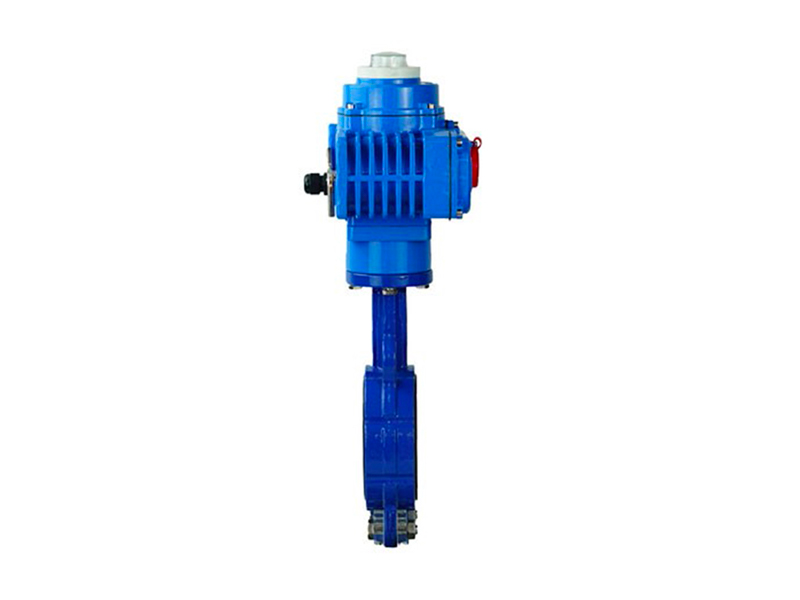

Electric soft sealing wafer butterfly valve

Features: Size: DN50-DN1200/2" -48"
Pressure Rating: PN0.6/PN1.6MPa
Material: WCB, QT450-10, HT200, HT250
Design Standard: API609/ISO5752
Inspection Standard: API609
Application medium: Water, air, natural gas, oil and weak corrosive fluid
Application Temperature: Normal Temperature (-40°C

We're here to help:
Easy ways to get the answers you need.

  • Parameter
  • Standards&Features
  • Case
  • Application
  • Inquiry

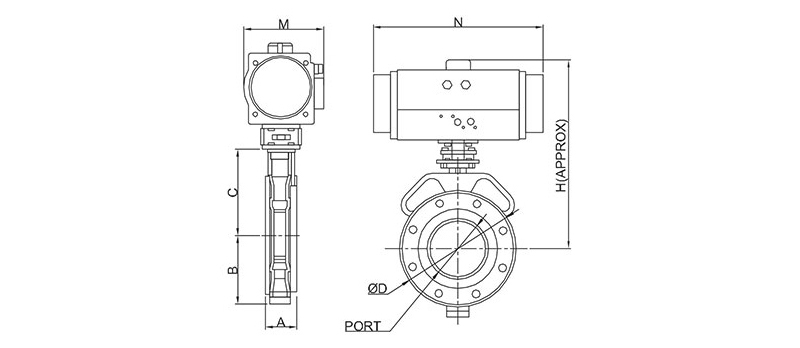

Parameter:


DN

L

H

HO

A

B

0.6MPa

1.0MPa

1.6MPa













DO

n-d

DO

n-d

DO

n-d

50

43

63

438

125

125

110

4-14

125

4-18

125

4-18

65

46

70

453

125

125

130

4-14

145

4-18

145

4-18

80

46

83

478

125

125

150

4-18

160

8-18

160

8-18

100

52

105

519

125

125

170

4-18

180

8-18

180

8-18

125

56

115

713

325

245

200

8-18

210

8-18

210

8-18

150

56

137

749

325

245

225

8-18

240

8-22

240

8-22

200

60

164

843

325

245

280

8-18

295

8-22

295

8-22

250

68

206

947

363

313

335

12-18

350

12-22

355

12-26

300

78

230

1013

363

313

395

12-22

400

12-22

410

12-26

350

78

248

1046

363

313

445

12-22

460

16-22

470

16-26

400

102

289

1135

363

313

495

16-22

515

16-26

525

16-30

450

114

320

1328

465

439

550

16-22

565

20-26

585

20-30

500

127

343

1226

546

481

600

20-22

620

20-26

650

20-33

600

154

413

1394

546

556

705

20-26

725

20-30

770

20-36

700

165

478

1534

546

556

810

24-26

840

24-30

840

24-36

800

190

525

1159

546

556

920

24-30

950

24-33

950

24-39

900

203

585

1748

617

706

1020

24-30

1050

28-33

1050

38-39

1000

216

640

1805

632

706

1120

28-30

1160

28-36

1170

28-42

1200

254

755

2035

632

706

1340

32-33

1380

32-39

1390

32-48


Standards&Features:

Product Description

Detailed Description of butterfly valve

Series:

wafer type spline butterfly valve

Design Standard:

API609/ISO5752

Size:

DN50-DN1200/2" -48"

Flange:

PN6, PN10, PN16, PN25, ANSI150, ANSI125, JIS 10K, TABLE" D" , TABLE" E" etc.

Face to face:

ISO 5752

Body:

Cast Iron/Ductile Iron/Stainless Steel

Disc:

Ductile Iron/Ni-plated ductile iron/Stainless steel/Al-Bronze

Stem:

Zine Plated Steel/ Stainless Steel

Seat:

EPDM/NBR/PTTE

Application:

petroleum, chemical industry, water and electricity, foodstuff, medicament, light textile, paper making, metallurgy etc.

Certification:

ISO9001: 2008, CE, SGS,WRAS

Case:





Application:

Applied projects
The butterfly valve applied to the industries of food, beverage, pharmaceutical, chemical purify management and industrial environmental protection, water treatment, high buildings, drainage, etc., function as opening, closing and regulating the flow purpose
