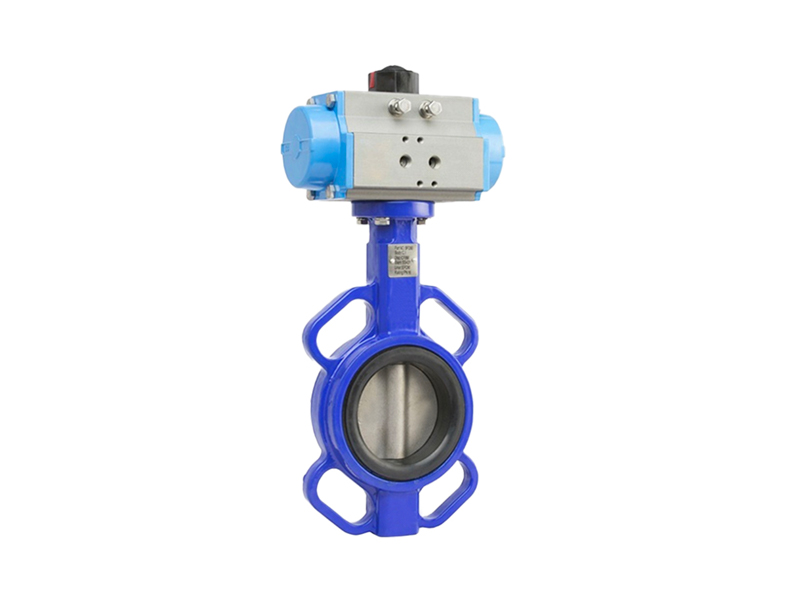

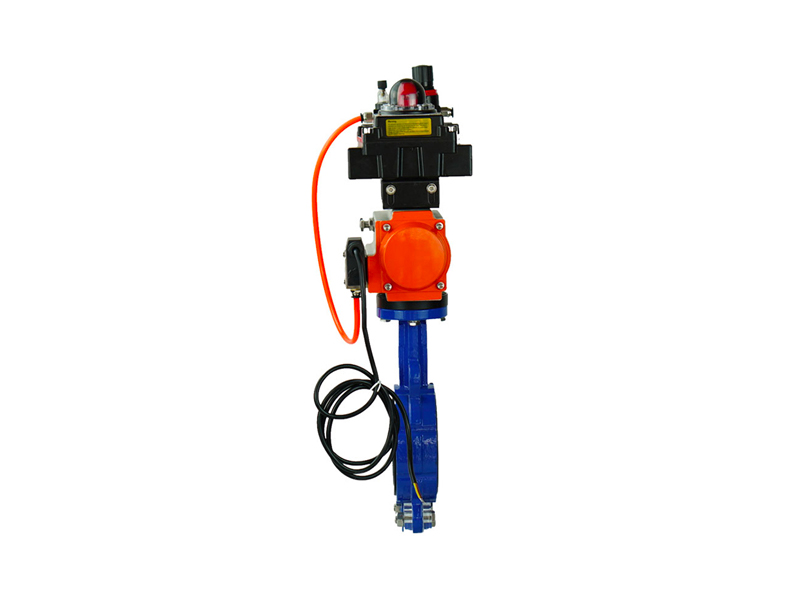

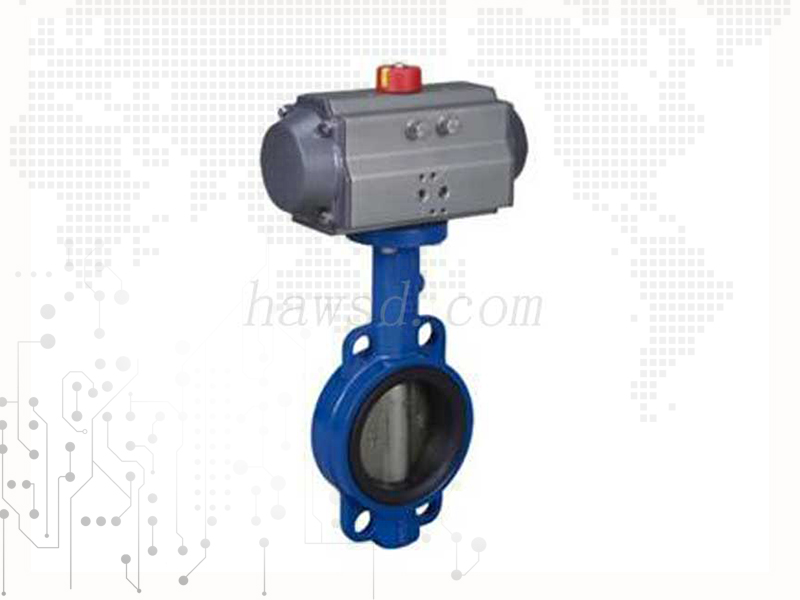

Pneumatic Wafer Butterfly Valve

Features: Size: 2''-44''/DN50-DN1200
Pressure Rating: PN10-PN40,150LB-300LB
Material: A216 GR.WCB, SS304, SS316
Design Standard: API609,ASME B16.34,BS5155
Inspection Standard: API598,EN12266
Application medium: Water, Oil and gas
Application Temperature: 0-200℃

We're here to help:
Easy ways to get the answers you need.

  • Parameter
  • Standards&Features
  • Case
  • Application
  • Inquiry

Parameter:


DN

NPSinch

H1

H2

H3

∅A

∅B

L

DN50

2"

75

129

32

125

105

43

DN65

2.5"

82

136

32

145

127

46

DN80

3"

99

153

32

160

145

46

DN100

4"

110

167

32

190.5

165

52

DN125

5"

125

193

32

216

200

56

DN150

6"

145

209

32

241.3

225

56

DN200

8"

170

251

40

298.4

280

60

DN250

10"

210

280

45

361.9

350

68

DN300

12"

240

315

45

431.8

400

78

DN350

14"

260

348

45

476.2

445

78

DN400

16"

295.5

392.5

52

540

510

102

DN450

18"

401.5

322.5

52

585

565

114

DN500

20"

451.5

362.5

64

650

620

127

DN600

24"

541.5

428.5

70

770

725

154

DN700

28"

​Temporary Absence Of Data

DN800

32"

DN900

36"

DN1000

40"

DN1200

44






Standards&Features:

Standards & Features

Pneumatic Stainless Steel butterfly valve Standard:

Design and Manufacture Conform to EN 593, API609,  JIS

Flange dimensions Conform to EN 1092-2 PN10, PN16, JIS5K, JIS10K,ANSI B16.1,DIN2501,BS4504

Face to Face dimensions Conform to EN558 series

Top Flange dimensions Conform to ISO5211

Testing Conform to API598、EN12266-1



Pneumatic Stainless Steel butterfly valve features:

Protection of gearbox IP 68-8 (submersion up to 8 m of water) and actuator IP 68 (submersion up to 8 m of water, during 96 hours and 10operations)

With position indicator.

Clockwise Close (CC).

For installation above ground and in non-flooded chambers.

Designed and tested to an endurance level of 2500 cycles minimum, inaccordance with EN 1074-1 and 2.

Case:

Project Name: Pakistan AL-MORIZE Sugar Factory

Client Name: Pakistan AL-MORIZE Sugar Factory

Buy products: Control/On-off butterfly valves, Control globe valves, Control ball valves, Angle seat valves.

Customer needs: applied to sugar factory

Engineering Content:

The customer found WESDOM through Google advertisements, because he himself is relatively familiar with valves, so he sent the required products, product materials and required medium to our salesman in the international trade department, and the WESDOM salesman also promptly contacted with our factory's sales department and the engineering department, and then gave the customer the best price;

client feedback:

WESDOM's valves are not only of high quality, but also of very good service and price. At the same time, you can also customize your own logo and color. The delivery time is very punctual. They are very satisfied with the cooperation with WESDOM, and they will choose WESDOM if you need it;

Project pictures:





Application:

Pneumatic Stainless Steel butterfly valve Application:

potable water supply pipelines and treatment plants.

transportation of filtered and recycled water.

irrigation distribution networks.

water-pumping stations and hydroelectric plants.

nuclear industry, fire safety and storage facilities.
