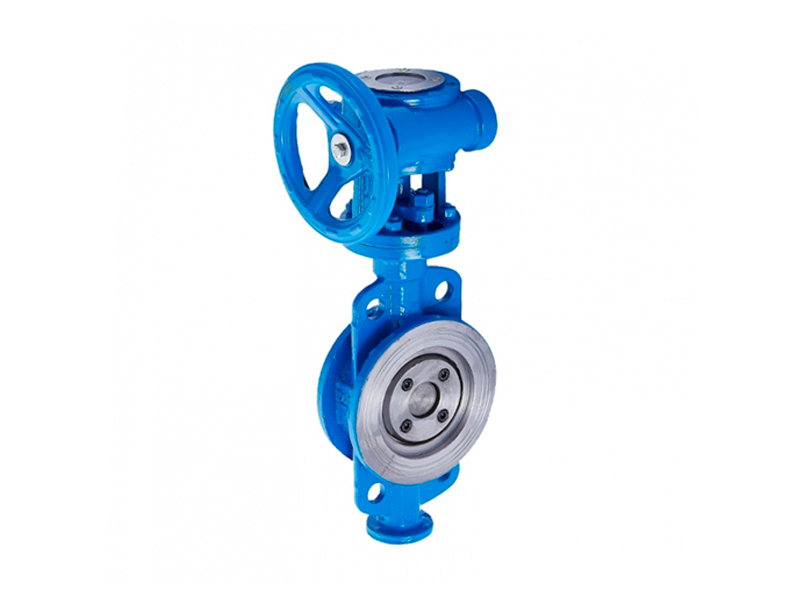

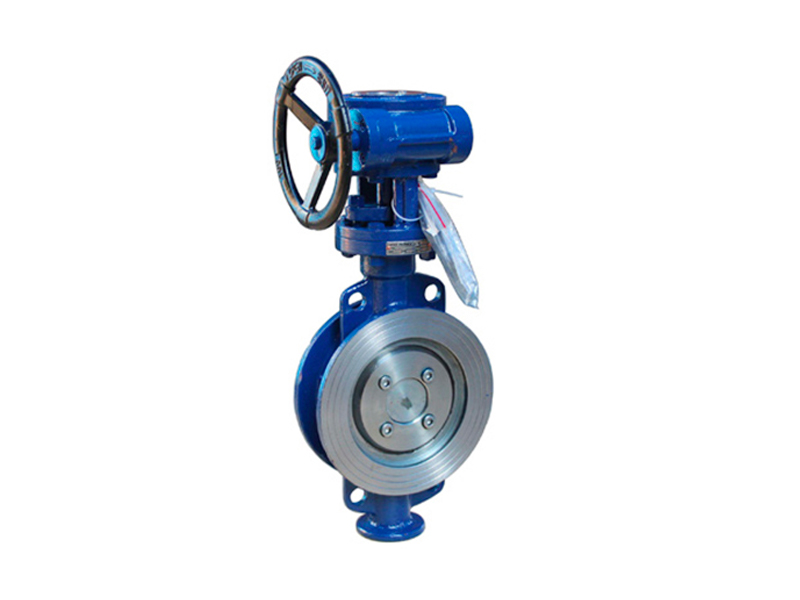

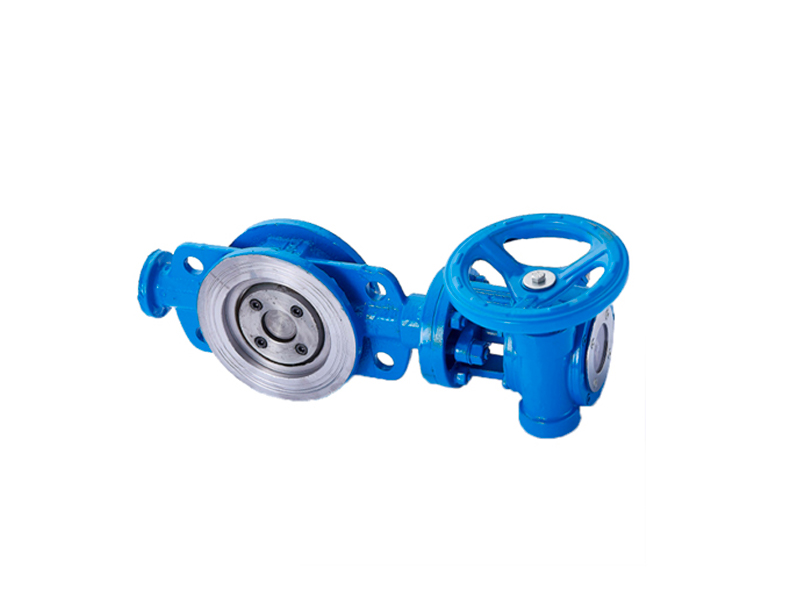

Three eccentric metal seals wafer butterfly valve

Features: Size: 2~48"(DN50~DN1200)
Pressure Rating: PN10,PNPN16-PN40,150LB-300LB,5K-16K
Material: WCB,Stainless Steel,Cr -Mo steel,Allay steel
Design Standard: BS 5155,API609,JIS B2064
Inspection Standard: EN12266, API 598, GB/T 13927-92
Application medium: Water, Sewage, Gas
Application Temperature: -29-300℃

We're here to help:
Easy ways to get the answers you need.

  • Parameter
  • Standards&Features
  • Case
  • Application
  • Inquiry

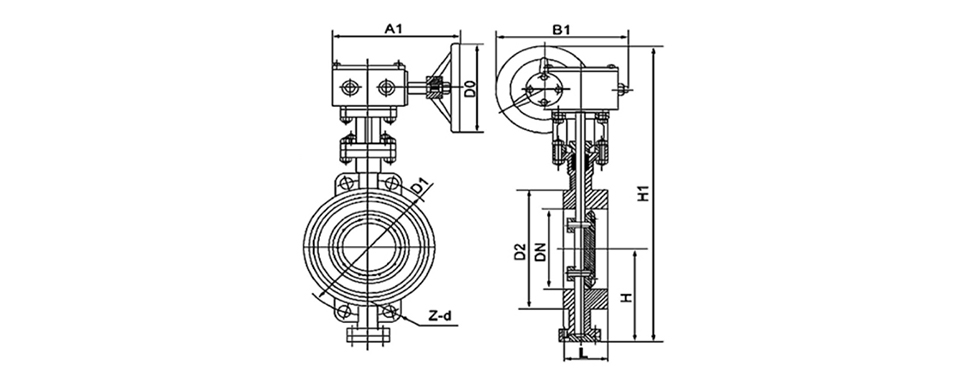

Parameter:


65

2  1/2''

185

145

118

112

185

145

118

80

3''

200

160

132

114

200

160

132

100

4''

220

180

156

127

220

180

156

125

5''

250

210

184

140

250

210

184

150

6''

285

240

211

140

285

240

211

200

8''

340

295

266

152

340

295

266

250

10''

395

350

319

165

405

355

319

300

12''

445

400

370

178

460

410

370

350

14''

505

460

429

190

520

470

429

400

16''

565

515

480

216

580

525

480

450

18''

615

565

530

222

640

585

548

500

20''

670

620

582

229

715

650

609

600

24''

780

725

682

267

840

770

720

700

28''

895

840

794

292

910

840

794

800

32''

1015

950

901

318

1025

950

901

900

36''

1115

1050

1001

330

1125

1050

1001

1000

40''

1230

1160

1112

410

1255

1170

1112

1200

48''

1455

1380

1328

470

1485

1390

1328


Standards&Features:

Standards & Features

Pneumatic Stainless Steel butterfly valve Standard:

Design and Manufacture Conform to EN 593, API609,  JIS

Flange dimensions Conform to EN 1092-2 PN10, PN16, JIS5K, JIS10K,ANSI B16.1,DIN2501,BS4504

Face to Face dimensions Conform to EN558 series

Top Flange dimensions Conform to ISO5211

Testing Conform to API598、EN12266-1



Pneumatic Stainless Steel butterfly valve features:

Protection of gearbox IP 68-8 (submersion up to 8 m of water) and actuator IP 68 (submersion up to 8 m of water, during 96 hours and 10operations)

With position indicator.

Clockwise Close (CC).

For installation above ground and in non-flooded chambers.

Designed and tested to an endurance level of 2500 cycles minimum, inaccordance with EN 1074-1 and 2.

Standard Test

Body Test:  1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.

Seat Test:  1.1 times the working pressure with water.
