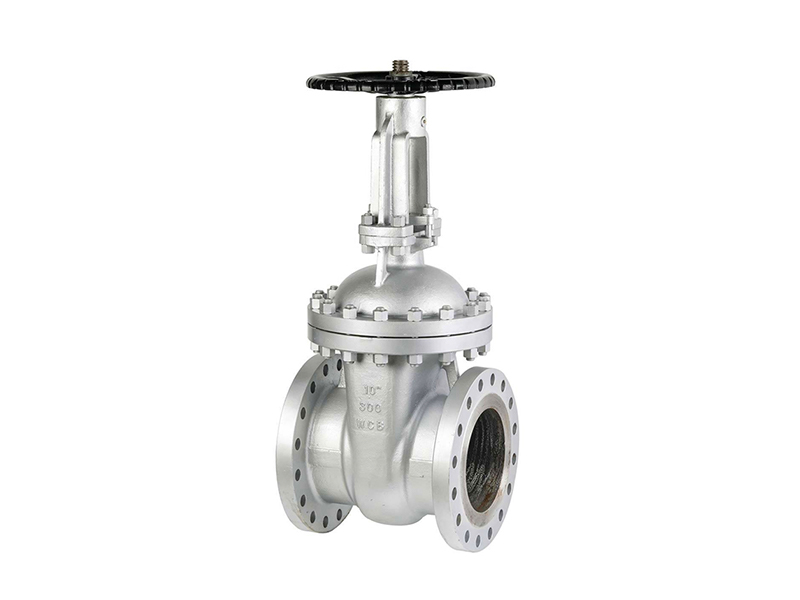

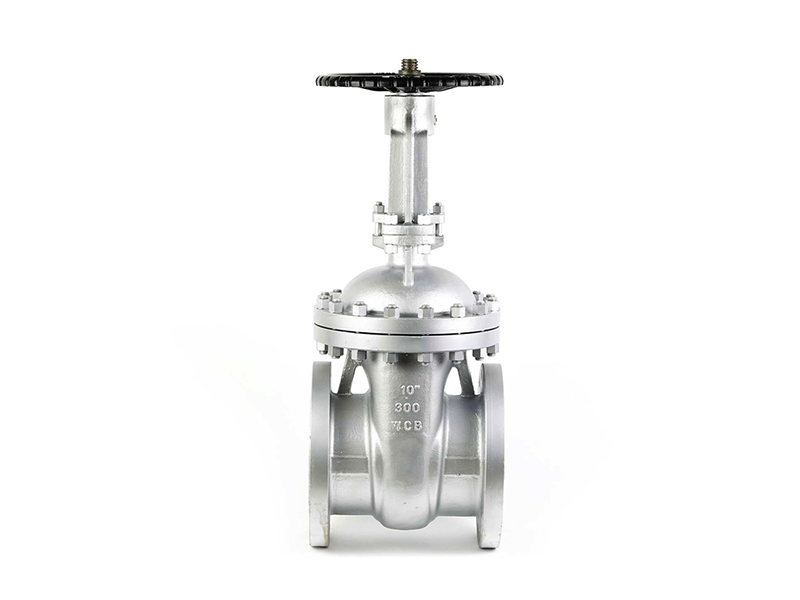

carbon steel gate valve
Features:
Size: 1/2”-48”
Pressure Rating: 150LB- 600LB
Material: A216 GR.WCB, Alloy steel, SS304, SS316
Design Standard: API 600, API 6D
Inspection Standard: API 598
Application medium: Water, oil, gas
Application Temperature: -29-425℃
We're here to help:
Easy ways to get the answers you need.
Parameter:
What is the carbon steel gate valve?
The carbon steel gate valve is a commonly used valve. The valve consists of a valve body, gate, and seal. The opening and closing direction of the gate is perpendicular to the fluid. The cast steel gate valve is easy to install, the structure is compact, and the seal is reliable. It is widely used in oil, natural gas, chemical industry, steel, cement and other industries. Its main characteristics are easy to open and close operation, wear resistance, corrosion resistance, long service life. It can adapt to a working environment with high temperature and high pressure or low temperature and low pressure.
|

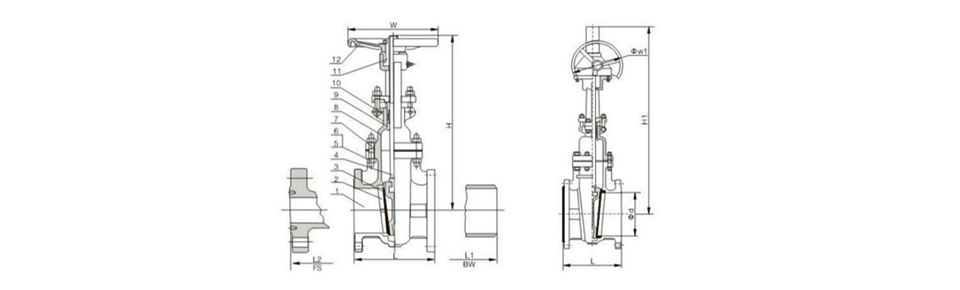

Pressure |
Size |
L |
d |
195 |
H1 |
W |
W1 |
Weight(kg) |
||||
|
NPS |
DN |
RF |
RTJ |
BW |
H.W |
G.O |
||||||
|
class150 |
1/2″ |
15 |
108 |
119 |
108 |
14 |
210 |
— |
120 |
— |
4 |
— |
|
3/4″ |
20 |
117 |
130 |
117 |
19 |
240 |
— |
120 |
— |
5 |
— |
|
|
1″ |
25 |
127 |
140 |
127 |
25 |
300 |
— |
140 |
— |
7 |
— |
|
|
11/4″ |
32 |
140 |
153 |
140 |
32 |
395 |
— |
180 |
— |
10 |
— |
|
|
11/2″ |
40 |
185 |
178 |
165 |
38 |
400 |
— |
200 |
— |
14 |
— |
|
|
2″ |
50 |
178 |
191 |
218 |
51 |
435 |
— |
200 |
— |
19 |
— |
|
|
21/2″ |
65 |
191 |
203 |
241 |
64 |
515 |
— |
200 |
— |
25 |
— |
|
|
3″ |
80 |
203 |
216 |
283 |
76 |
595 |
— |
250 |
— |
33.5 |
— |
|
|
4″ |
100 |
229 |
241 |
305 |
102 |
725 |
— |
280 |
— |
48.5 |
— |
|
|
5″ |
125 |
254 |
267 |
381 |
127 |
780 |
— |
300 |
310 |
60.5 |
— |
|
|
6″ |
150 |
267 |
279 |
403 |
152 |
975 |
820 |
350 |
310 |
77 |
104 |
|
|
8″ |
200 |
292 |
305 |
418 |
203 |
1150 |
1020 |
400 |
310 |
115 |
150 |
|
|
10″ |
250 |
330 |
343 |
457 |
254 |
1380 |
1200 |
450 |
310 |
175 |
215 |
|
|
12″ |
300 |
356 |
368 |
502 |
305 |
1545 |
1430 |
500 |
310 |
280 |
315 |
|
WESDOM Advantages
1.WESDOM patent products, patent certification
The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.
2.The product has an independent identity to ensure traceability
Each wesdom product has its own unique identification number, to ensure product traceability.
3.Provide material inspection report
All wesdom products can provide the material inspection report of the main parts.
4.One-stop service
One-stop service, we not only supply high quality products, also supply solutions and after-sales service.
5.WESDOM has a lot of project experience
We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.
6. WESDOM has a strict quality control system
WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.
Quality Control Process
Standards&Features:
Advantages of carbon steel gate valve:
1. High-intensity and reliable sealing
The wedge disc and seat of the carbon steel gate valve are made of cast steel materials, which can withstand greater pressure and temperature changes. In addition, the sealing structure is adopted between the wedge disc and the seat. The advantage is that the sealing performance is good and reliable, which can completely cut off the flow body to prevent leakage.
2. High corrosion resistance
The carbon steel gate valve is made of cast steel. It has good corrosion resistance and abrasion resistance, which can adapt to complex and variable process liquids, and is suitable for a variety of medium acid and base media.
3. Long service life
The material of carbon steel gate valves have high hardness, strong wear resistance and long service life.
4. A wide range of applications
The carbon steel gate valves can be used in various fields, such as chemical, petroleum, natural gas, power, urban water supply and other fields. It can not only be used in the environment of normal temperature and normal pressure, but also is widely used in special operating conditions of high temperature, low temperature, high pressure and low pressure.
Case:
Pakistan Petroleum Project
Main products: API valves and fittings
Project description:
All valves and fittings were through SGS Inspection.
Client feedback:
WESDOM is a very trustworthy team, not only professional, but also caring and enthusiastic in service. If there is a demand in the future, we will choose WESDOM without hesitation.

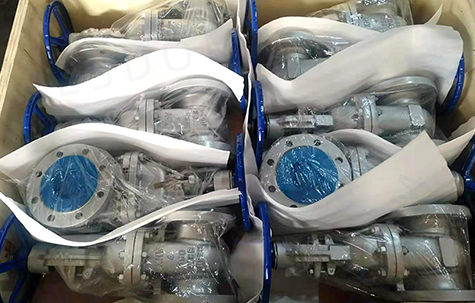

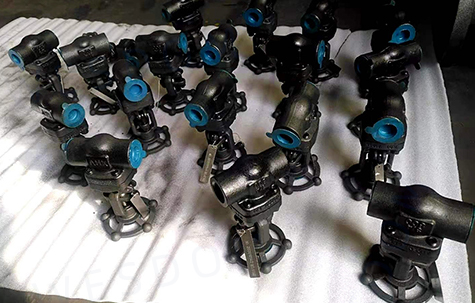

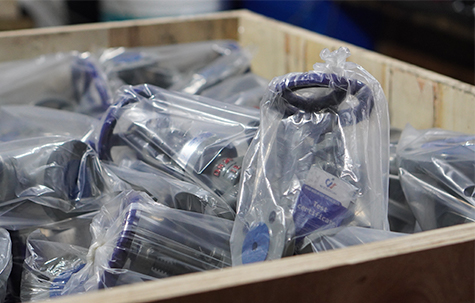

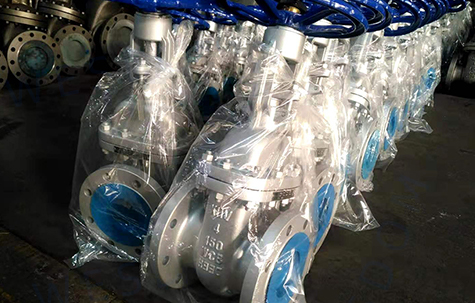

Project pictures:
Application:
Carbon steel gate valves are widely used in a variety of industrial applications due to their durability, strength, and resistance to high temperatures and pressures.
Here are some common applications of carbon steel gate valves:
1.Oil and Gas Industry:
Carbon steel gate valves are commonly used in the oil and gas industry for controlling the flow of crude oil, natural gas, and other fluids in pipelines, refineries, and storage tanks. They are preferred over other types of valves due to their high pressure and temperature resistance.
2.Power Generation:
Carbon steel gate valves are also used in the power generation industry for controlling the flow of steam, water, and other fluids in power plant boilers, turbines, and generators. They are preferred over other types of valves due to their ability to withstand high temperatures and pressures.
3.Chemical and Petrochemical Industry:
Carbon steel gate valves are widely used in the chemical and petrochemical industry for controlling the flow of corrosive and abrasive fluids in pipelines, reactors, and storage tanks. They are preferred over other types of valves due to their high corrosion and erosion resistance.
4.Water Treatment:
Carbon steel gate valves are also used in the water treatment industry for controlling the flow of water and other fluids in pipelines, treatment plants, and distribution systems. They are preferred over other types of valves due to their durability and ability to withstand harsh water conditions.
5.Mining Industry:
Carbon steel gate valves are commonly used in the mining industry for controlling the flow of slurry, chemicals, and other fluids in mining and processing operations. They are preferred over other types of valves due to their high abrasion resistance.
