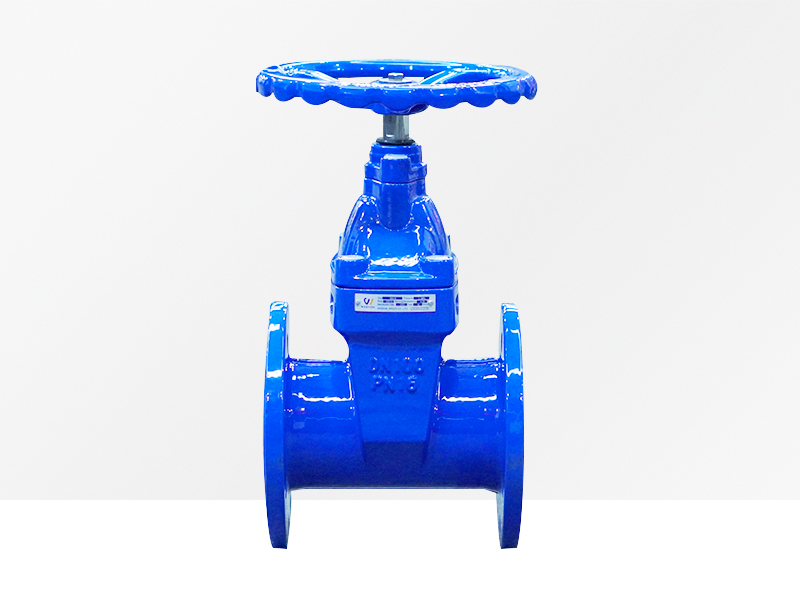

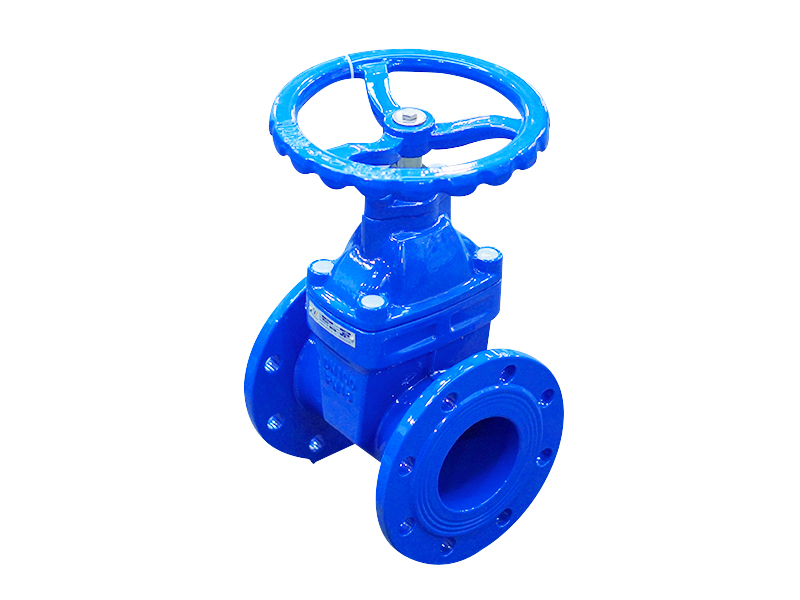

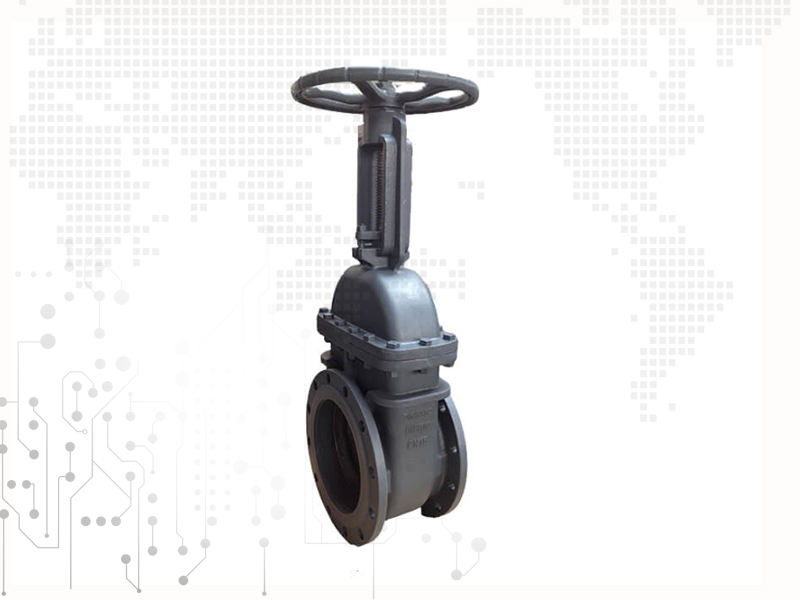

DIN soft seal gate valve

Features: Size: DN40-600
Pressure Rating: PN1.0 / 1.6mpa
Material: Ductile Iron
Design Standard: DIN3352-F4
Inspection Standard: DIN3230
Application medium: Water, gas etc.
Temperature: 0-80 ℃

We're here to help:
Easy ways to get the answers you need.

  • Parameter
  • Standards&Features
  • Case
  • Application
  • Inquiry

Parameter:


What is a resilient seated gate valve?

DIN resilient seated gate valve is a new type of valve equipment. It is characterized by the use of soft materials such as rubber rings between wedge discs and seats to achieve sealing. Compared with the traditional hard and densely sealing valve, the sealing and performance have obtained a lot promote. The soft sealing gate valve provides a tightening force through high quality spring and pressure plates, so as to achieve a better sealing effect.

It can adapt to different working environments and needs. The soft sealing gate valve has the advantages of sealing reliability, long service life, and energy saving and consumption reduction. It is widely used in the fields of power stations, pharmaceuticals, chemicals, and sewage treatment. Due to the sealing ring of the soft sealing gate valve is made of high elastic materials, it has long service life and it is also helpful to reduce maintenance costs.





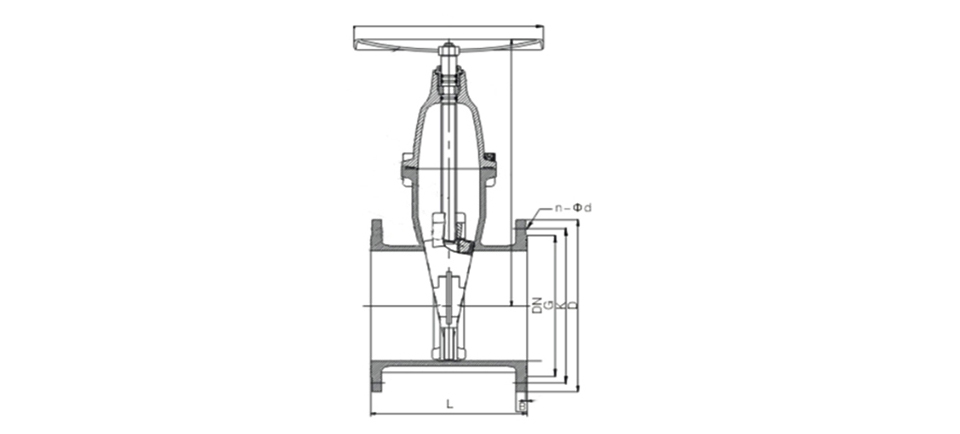

DN

L

D

K

G

N-ød





PN16

PN25

PN16

PN25

PN16

PN25

PN16

PN25

40

165

150

150

110

110

19

20

4-ø19

4-ø19

50

178

165

165

125

125

19

20

4-ø19

4-ø19

65

190

185

185

145

145

19

22

4-ø19

8-ø19

80

203

200

200

160

160

19

22

8-ø19

8-ø19

100

229

220

235

180

190

19

24

8-ø19

8-ø23

125

254

250

270

210

220

19

28

8-ø19

8-ø26

150

267

285

300

240

250

19

30

8-ø23

8-ø26

200

292

340

360

295

310

20

32

12-ø23

12-ø26

250

330

405

435

355

370

22

12-ø28

12-ø30

300

356

460

485

410

430

25

38

12-ø28

12-ø30



WESDOM Advantages

1.WESDOM patent products, patent certification

The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.

2.The product has an independent identity to ensure traceability

Each wesdom product has its own unique identification number, to ensure product traceability.

3.Provide material inspection report

All wesdom products can provide the material inspection report of the main parts.

4.One-stop service

One-stop service, we not only supply high quality products, also supply solutions and after-sales service.

5.WESDOM has a lot of project experience

We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.

6. WESDOM has a strict quality control system

WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.

 Quality Control Process



Standards&Features:



Design standard

DIN3352 F4,  LIGHT TYPE

Flange drilling standard

EN1092-2 PN10/PN16

Face to face standard

EN558-1 Series 14

Hydraulic test standard

EN12266



Seat:1.1*PN(in bar), Body:1.5*PN(in bar)



Advantages of resilient seated gate valve:

1. Overall rubber coating

The overall coating of the inside and outside of the disc is used with high quality rubber, and the domestic leading rubber vulcanization technology is used to keep the valve that maintains accurate geometric size. More importantly, the high stickiness between rubber and disc sticks the rubber stably together and has good elastic memory.

2. Strong corrosion resistance

The valve body is coated with epoxy resin powder to prevent the valve from corrosion and rust, and the valve can be used for the wastewater system. It is difficult to break, and the traditional gate valve has broken due to the impact or collision of other objects. The new valve body material is ductile iron, which significantly reduces the broken condition of this material.

3. Non -toxic epoxy resin coating

Due to the internal and non -toxic epoxy resin coating inside the valve body, the surface of the inside and outside of the valve is completely covered with rubber, rust or corrosion will not occur, which ensures that the water can drink.

4. The valve body uses precision casting

The valve body is made of precision, and the precise geometric shape makes it possible to ensure the sealing of the valve without any other processing inside the valve.

5. Better sealing performance

The soft sealing gate valve uses soft materials such as rubber to achieve sealing between the wedge disc and the seat. The sealing effect is better, it can adapt to a complex environment, and has higher sealing reliability and service life.

6. Lower maintenance costs

The sealing ring of the soft sealing gate valve is made of high elastic materials. It has a long service life and can save more maintenance costs. At the same time, the valve body is made of ductile iron. The weight is about 20%to 30% lighter than the traditional valve. It is easy to install and maintain, and can reduce maintenance costs and time.

7. Smaller traffic noise

The material of the soft sealing gate valve can effectively reduce the flow noise of the fluid through the valve, make it work more stable, and be suitable for occasions with higher requirements for flow noise.



Technical Parameters

Nominal diameter(mm)

40600

50600

Nominal pressure(Mpa)

 1.0

1.6

Testing pressure

Shell(Mpa)

1.5

2.4

Seal(Mpa)

1.1

1.76

Suitable temperature

0°C80°C

Suitable medium

the flow of fluids such as water, steam, and gas

Case:

Tanzania Water Project

Water project of a factory in Tanzania

Main products: Gate Valves, Butterfly Valves, Check Valves, Pipe Fittings, etc.

Client feedback:

The customer sent us the installation pictures of the WESDOM product in the working condition project, and the feedback quality is very good, and will maintain a long-term cooperative relationship with WESDOM;

Project pictures:





Application:

DIN resilient seated gate valve is a type of gate valve that is widely used in various industries for controlling the flow of fluids such as water, steam, and gas. The valve has a resilient seat that provides a tight seal even in low-pressure applications. Here are some of the applications of DIN F4 resilient seated gate valve:

1. Water treatment plants:
DIN resilient seated gate valves are commonly used in water treatment plants for regulating the flow of water. These valves provide a tight seal and are resistant to corrosion, making them ideal for use in harsh conditions.

2. HVAC systems:
DIN resilient seated gate valves are used in HVAC systems for regulating the flow of water and other fluids. These valves are preferred due to their high flow rates and excellent sealing capabilities.

3. Industrial applications:
DIN resilient seated gate valves are widely used in various industrial applications such as chemical plants, oil refineries, and power plants. These valves are designed to handle high-pressure and high-temperature applications, making them ideal for use in these industries.

4. Irrigation systems:
DIN resilient seated gate valves are commonly used in irrigation systems for regulating the flow of water. These valves are designed to handle high volumes of water and are resistant to corrosion, making them ideal for use in agricultural applications.
