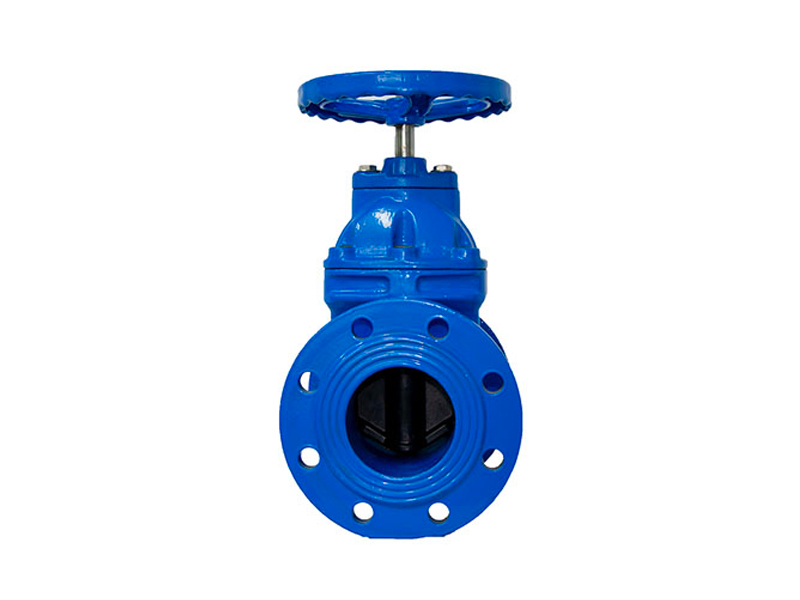

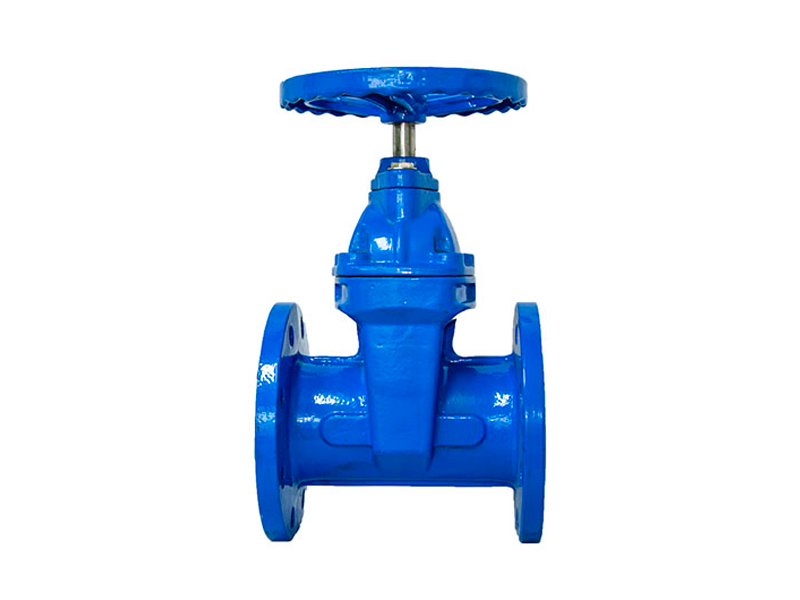

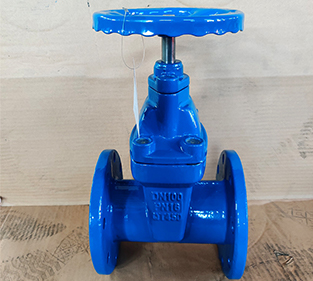

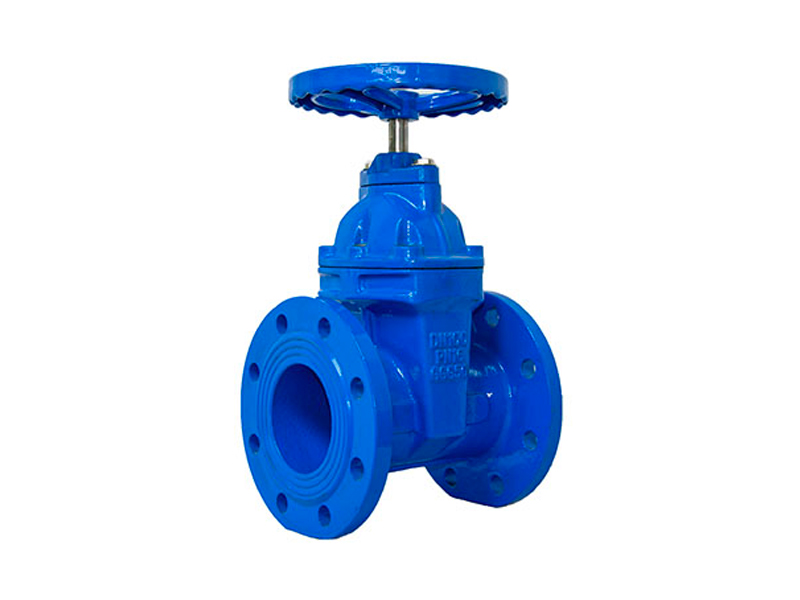

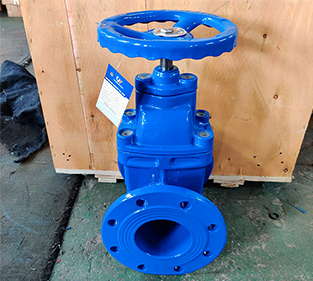

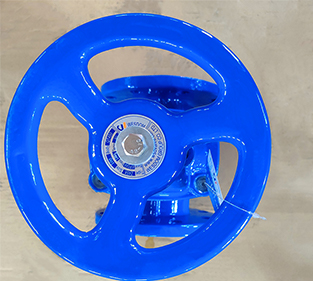

Soft Seal Gate Valve

Features: Product Category Gate Valve
Diameter DN50-600
Pressure PN1.0 / 1.6mpa
Temperature 0-80 ℃
Medium Water, gas etc.
Body material GGG50 / 40
Connection Flange

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Adoptive standards
  • Features
  • Application
  • Inquiry

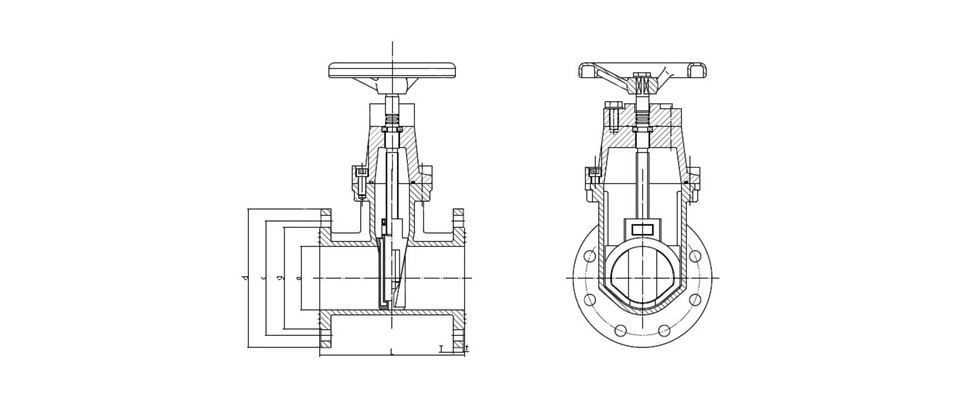

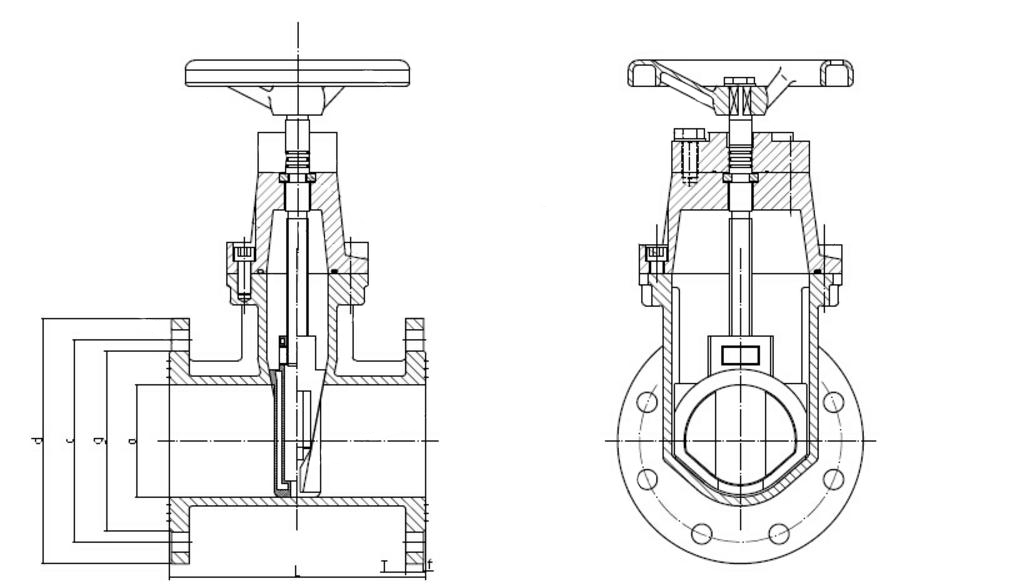

Product parameter:

DN

L

d

C

x-n

T

f

g

50

178

165

125

4-18

19

2

99

65

190

185

145

4-18

19

2

118

80

203

200

160

4-18

8-18

19

3

132

100

229

220

180

8-18

19

3

156

125

254

250

210

8-18

19

3

184

150

267

285

240

8-23

19

3

211

200

292

340

295

8-23

12-23

21

3

266

250

330

395

350

355

12-23

12-25

22

3

319

300

355

445

400

410

12-23

12-25

25

4

370

350

381

515

460

470

16-23

16-25

25

4

430

400

405

580

515

525

16-26

16-31

28

4

475

450

432

650

565

585

20-26

20-31

29

5

530

500

457

670

715

620

650

20-26

20-34

29

5

580

600

508

780

810

725

770

20-30

20-36

38

5

680

Adoptive standards:


Material ;name Z15H-(16-64)C Z15H-(16-64)P Z15H-(16-64)R
Body WCB ZG1Cr18Ni9TiCF8 ZG1Cr18Ni12Mo2TiCF8M
 Disc WCB ZG1Cr18Ni9TiCF8 ZG1Cr18Ni12Mo2TiCF8M
Stem 1Cr18Ni9Ti304 1Cr18Ni9Ti304 1Cr18Ni12Mo2Ti316
 Sealing  304, 316
 Packing   Polytetrafluorethylene(PTFE)

Features:

• Fluid resistance, little erosion and corrosion occurs on sealing surface from the media.

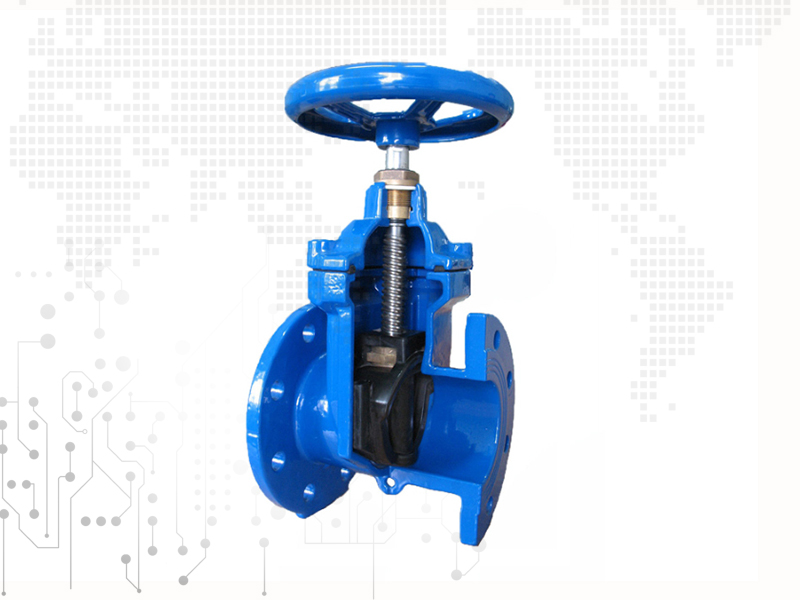

• Flat base seat----Traditional gate valve used to have foreign objects such as stone, wood, cement, paper and other debris in the notch of the valve bottom, then cause water leakage when the valve can not be close tightly. Soft seal gate valve is designed with the flat base which is in the pipe’s same level, then no more foreign objects filled in, easily to be free flowing.


• Overall rubber coating----Using high quality rubber to overall coat the valve disc both inside and outside, with domestically leading rubber vulcanized technology, the valve is able to maintain accurately geometry size. What's more, high adhesion between the rubber and valve disc makes the rubber steadily stick with good elastic memory.


• Corrosion resistance - The valve body is coated with epoxy resin powder, it can prevent the valve from corrosion and rusting, and the valve can be used in waste water system. Difficult to break, traditional gate valve used to cause fracture because of the hit or collision from other objects. The new valve body material is ductile iron, this material makes the fracture situation remarkably reduce.


• Three "O" ring seals- The stem with three "O" ring rings seal design can reduce friction switch, significantly reducing water leakage , besides, we can replace the valves without stopping the water construction.


• Helping to drink- Due to the internal body to non-toxic epoxy resin coating, the Inner and outer surfaces of the shutter are completely covered rubber so it will not appear rust or corrosion , insure water available to drink.


• Body Casting-  Body using precision casting, Precise geometry make it possible to ensure the valve seal without any other finishing to the inner of the valve.


• Light weight - Body with ductile cast made,lighter in weight than the conventional valve about 20% to 30%, easy installation and maintenance.

Application:

To be used as the regulating and cut off device in the fluid pipeline of following industrial system:


•    Petroleum                       •     Electricity


•    Chemical                        •     Chemical Fertilizer
