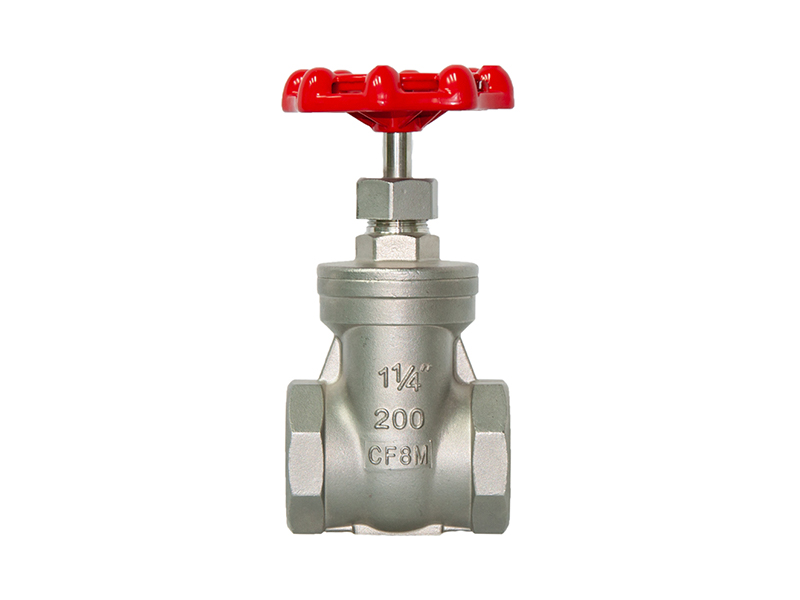

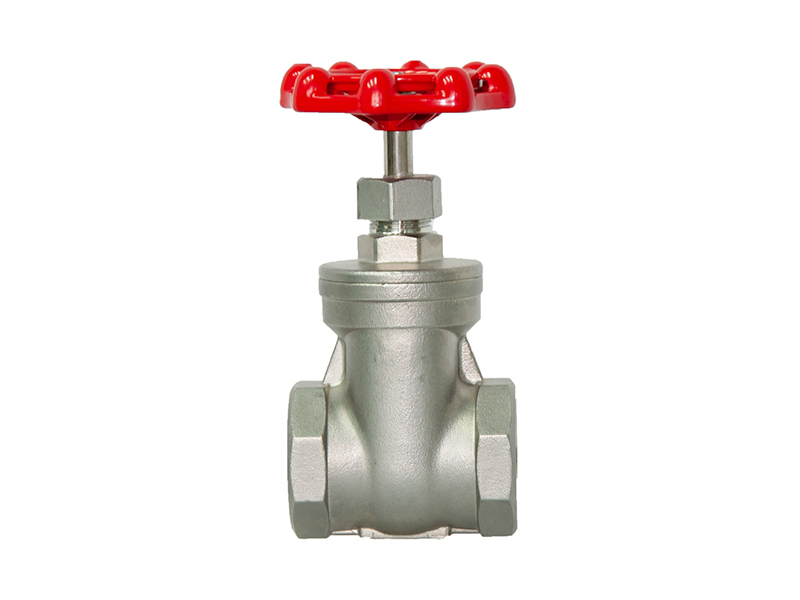

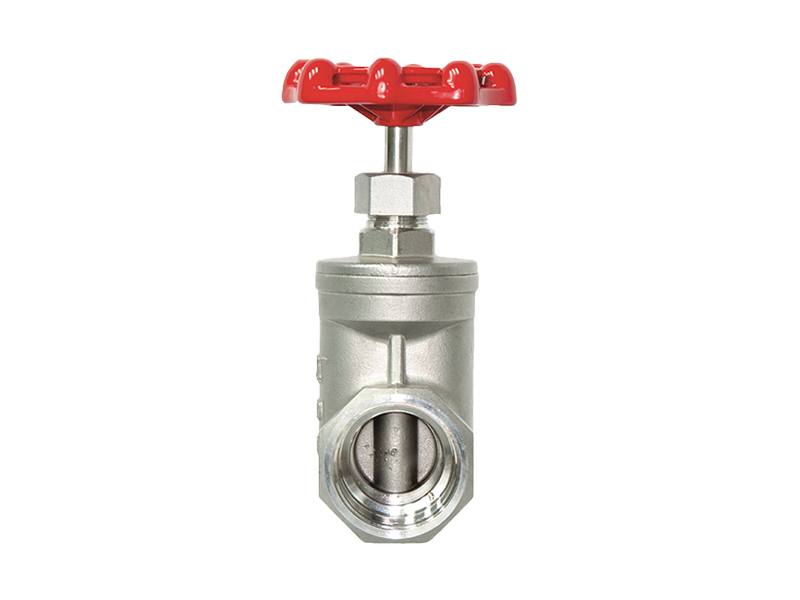

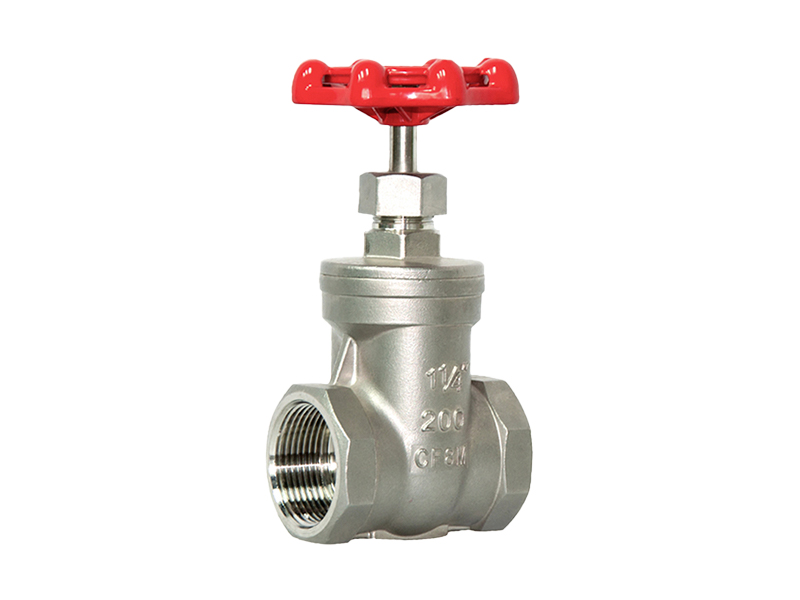

Threaded Gate Valve

Features: Size: 1/2”~4”
Pressure Rating: PN10,PN16
Material: Stainless steel
Design Standard: GB/T12224-2015
Inspection Standard: GB/T13927,EN12266
Application Temperature: 0-300℃
Applied projects: Petrochemical, Power plant, Refining, Oil & Gas, Metallurgy etc.

We're here to help:
Easy ways to get the answers you need.

  • Parameter
  • Standards&Features
  • Case
  • Application
  • Inquiry

Parameter:

Stainless steel manual internal thread gate valve, also called the cut-off gate, is the most widely used kind of valve, belongs to the forced sealing type valve, its closing principle is, relying on the pressure of valve bar, so that the sealing surface of the valve flap and the sealing surface of the valve seat closely fit together, stopping the flow of media. It is divided into several types according to different ways. The internal thread gate valve has a simple structure, good sealing life, fluid resistance, poor adjustment performance, etc.


DN

NB

Inner diameter of threadmm

Outside diameter of threadmm

DN15

1/2

19

20

DN20

3/4

24

25.5

DN25

1

30

32

DN32

1 1/4

39

40.5

DN40

1 1/2

44

46

DN50

2

56.5

58

DN65

2 1/2

72.5

74

DN80

3

84.5

86

DN100

4

110

112

Standards&Features:



No

Part Name

Qty

Material

1

Body

1

316 Stainless Steel

2

Core

1

316 Stainless Steel

3

Bonnet

1

316 Stainless Steel

4

Pocking

1

PTEE

5

Gland Nut

1

304 Stainless Steel

6

Hand Wheel

1

Aluminum

7

Name Plate

1

Aluminum

8

Nut

1

304 Stainless Steel

9

Stem

1

316 Stainless Steel

10

Metal Padding

1

304 Stainless Steel

11

Washer

1

316 Stainless Steel



Feature:
1.Small flow resistance .the way inside valve is direct through,the media can easily through the inside way, flow resistance are small.

2.Operate portably and flexibly,compare with globe valve ,the way of Disc move is Vertical with media whether open or close.

3.It is take a long time to open or close because long stem.

4.Water hammer phenomenon will nor happen because it cost long time to open and close.

5.The medium can flow in any direction on both sides, and is easy to install. Gate valves are symmetrical on both sides of the channel.




Case:

Project Name: Canadian Architecture Project

Customer Name: A project leader in Canada

Main products: Gate valves, globe valves, Y strainers

Customer requirements: use in construction projects

client feedback:

Customer feedback said: "Every time I received the products from WESDOM, I am always deeply shocked and moved. WESDOM is a very valuable and trusted partner";

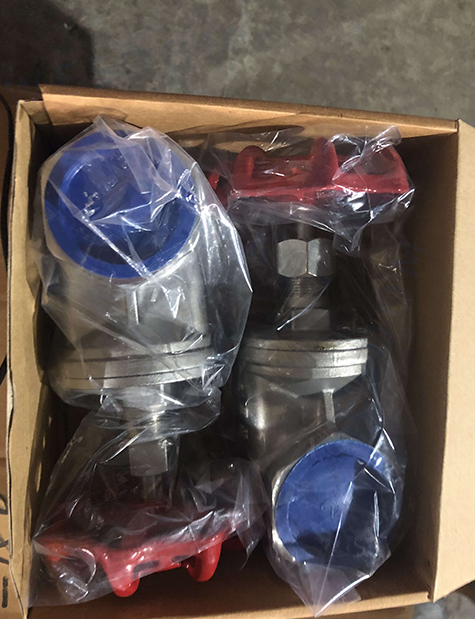

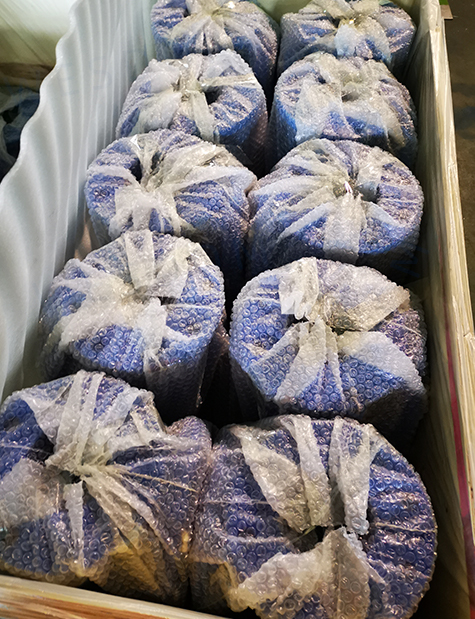

Project pictures:



Application:

1.Architectonics;

2.Edibles;

3.Medicine;

4.Chemical;

5.Energy.
