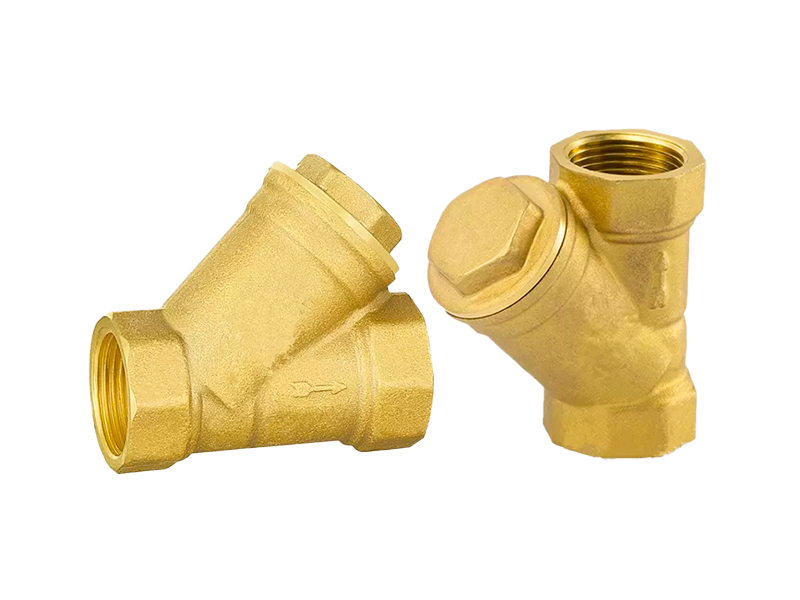

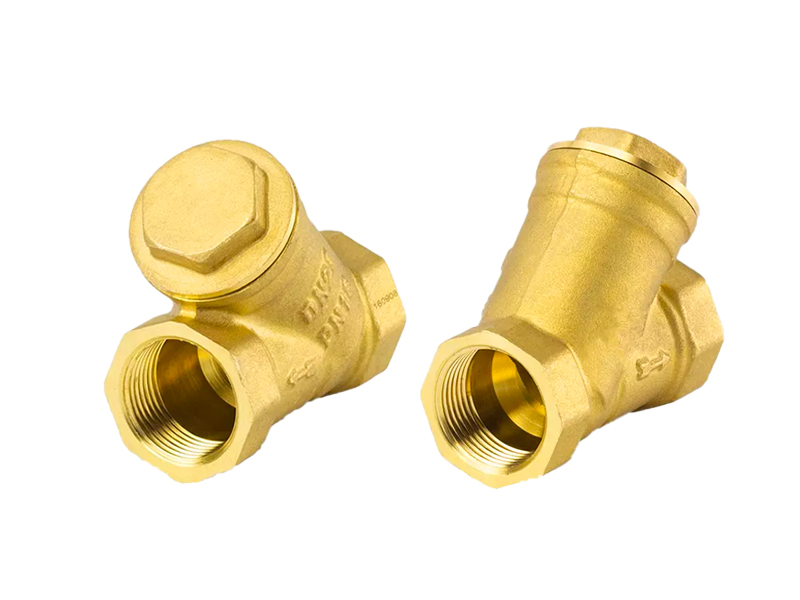

Copper Strainer

Features: Product name : Copper Strainer
Inside Nominal Diameter: 15-50mm
Body material: copper
Nominal Pressure: 1.6 Mpa
Applicable temperature: ≤150℃
Applicable media: water ,Non corrosive liquid,Saturated steam

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Adoptive standards
  • Features
  • Application
  • Inquiry

Product parameter:

WeiSiDun Group

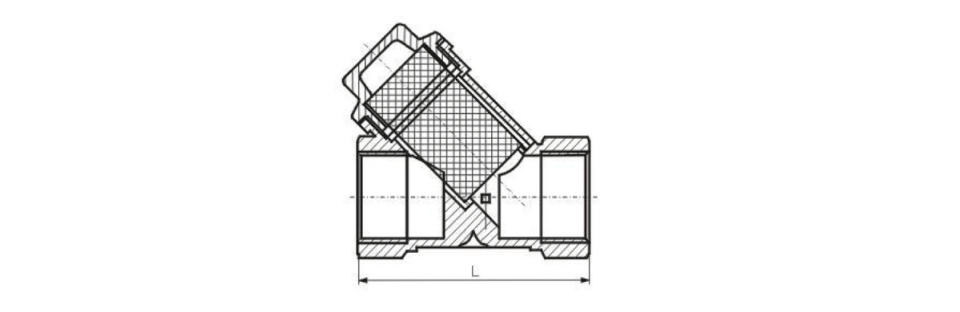

DN G/in L
15 1/2 56
20 3/4 69
25 1 82
32 1-1/4 90
40 1-1/2 101
50 2 121

Adoptive standards:

Main Specifications

Product name : Copper Strainer

Inside Nominal Diameter: 15-50

Body material: copper

Nominal Pressure: 1.6 Mpa

Applicable temperature:  ≤150℃

Applicable media:water ,Non corrosive liquid,Saturated steam

1.The structure is simple, the installation is convenient.

2.Structure with short length, small size, light weight, convenient storage and pipeline layout.

3.The filter net can be disassembled, and the maintenance is convenient.

Features:

1.Filter is to remove a small amount of solid particles in liquid equipment, can protect the normal operation of equipment, when the fluid enters the filter cartridge has a certain size, the impurities are blocked, and clean filtrate from the filter outlet, when cleaning, as long as the removable cartridge, after re treatment load can, therefore, maintenance is extremely easy to use.
2.Y type filter or strainer, filter valve, is indispensable to a device pipeline system conveying medium, its role is mechanical impurities in filter media, can sand on the removal of rust, and small amount of solid particles in liquid, filtering to protect equipment and pipeline the parts from wear and clogging, can protect the normal operation of equipment.
3.When the fluid enters the filter cartridge has a certain size, the impurities are blocked, and clean filtrate from the filter outlet, when required To clean, as long as the removal of the cartridge can be removed, the process can be re loaded, therefore, the use of maintenance is very convenient.

Application:

1.Y type filter for medium can be for water, oil and gas.
2.General water network for 18-30, ventilation network is 10-100, net oil 100~480.
3.Basket type filter mainly by taking over, competent, filter blue, flange, flange cover and the fastening parts composition.
4.When the liquid enters into the filter through the director of blue, the solid impurity particles blocked in the blue filter, and the clean fluid through the filter blue, from the filter outlet discharge.
