• Forged Steel Y Strainer

Forged Steel Y Strainer

Features: Port Size: DN15-DN50mm
Material: Forged
Structure: Strainer
Media: Water
Power: Hydraulic
Pressure: High Pressure,Low

We're here to help:
Easy ways to get the answers you need.

  • Parameter
  • Standards&Features
  • Case
  • Application
  • Inquiry

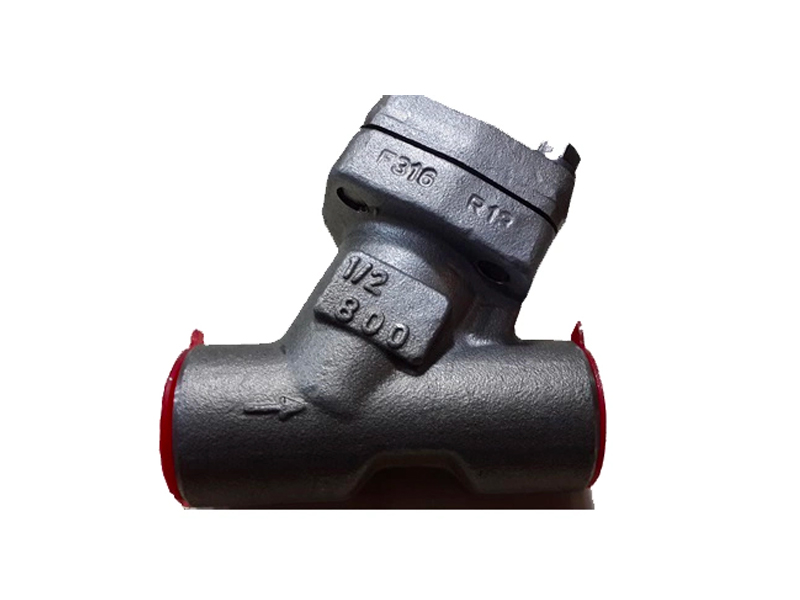

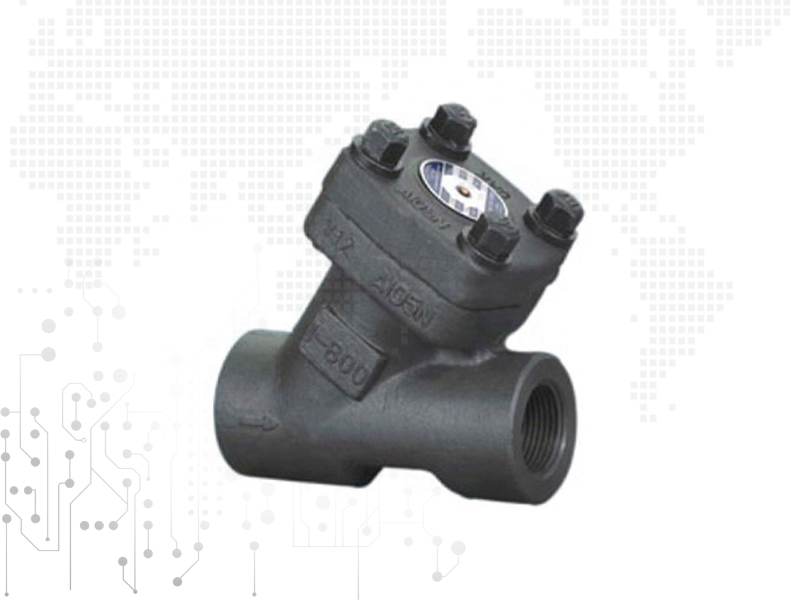

Forged Steel Y Type Strainer Class 800 is used to protect expensive equipment installed in a pipeline from dirt, debris and particulates.

Supplied with a standard fine screen for effective filtration down to 20 mesh (920μm or 0.037”). Screwed Plug enables easy removal and cleaning of basket.

Available in forged steel and conforming to API 602 and ASME B16.34. Offered in various end connections for use with a wide range of applications including: - Steam, Thermal Oil, Air, Gas and water.


NO. Part Name Materials
1 Filter Screen 304 304L 316L
2 Body A105 A305-LF2 A182-F5 A182-F11 A182-F22 A182-304 A182-304L A182-316 A182-316L A182-F51
3 Gasket 304+Graphite 316+Graphite
4 Nameplate Aluminum
5 Bonnet A105 A305-LF2 A182-F5 A182-F11 A182-F22 A182-304 A182-304L A182-316 A182-316L A182-F51
6 Bolt A193-B7 A320-L7 A193-B16 A193-B8,A193-B8M


1. Design
API602, ANSI B16.34, BS5352, GB/T12224, GB/T12228, GB/T12234
2. Socket Welding End
ANSI B16.11, JB/T175-95
3. Screw End
ANSI B1.20.1(NPT), GB/T7306-87(RC)
4. Butt Welding End
ANSI B16.25, GB/T12224
5. Flange End
ANSI B16.5, JB/T82.1"82.4-49
6. Face to Face of Flaned Valves
ANSI B16.10.JB/T97-95
7. Construction
Bolted Bonnet(BB)/Welded Bonnet(WB)
8. Inspect & Test
API598, GB/T13927, JB/T9092
9. Body Materials
A105, LF2, F5, F11, F22, F304, F316, F304L,etc. and Monel, Alloy20


1.Y type filter for medium can be for water, oil and gas.
2.General water network for 18-30, ventilation network is 10-100, net oil 100~480.
3.Basket type filter mainly by taking over, competent, filter blue, flange, flange cover and the fastening parts composition.
4.When the liquid enters into the filter through the director of blue, the solid impurity particles blocked in the blue filter, and the clean fluid through the filter blue, from the filter outlet discharge
