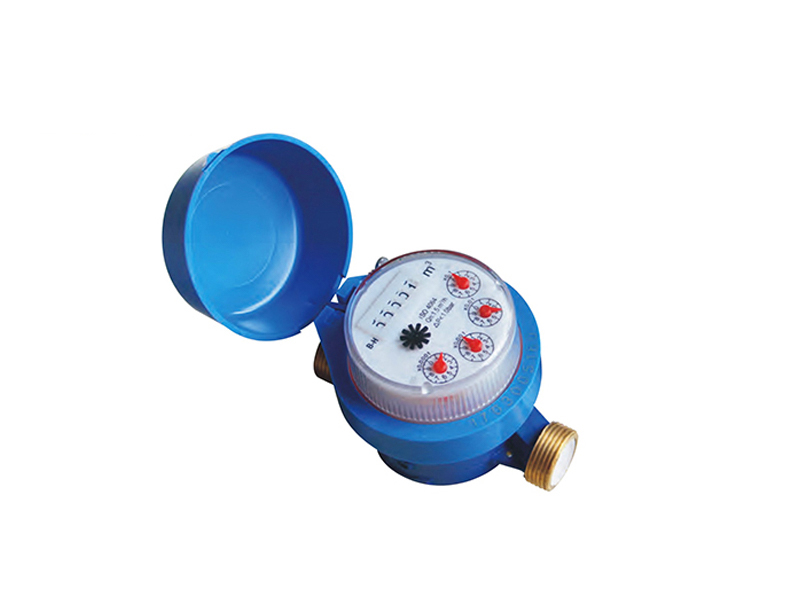

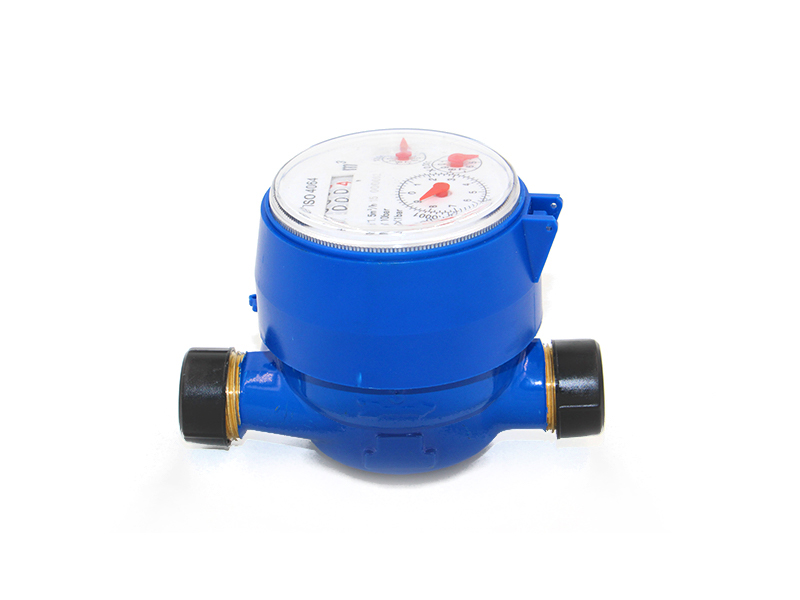

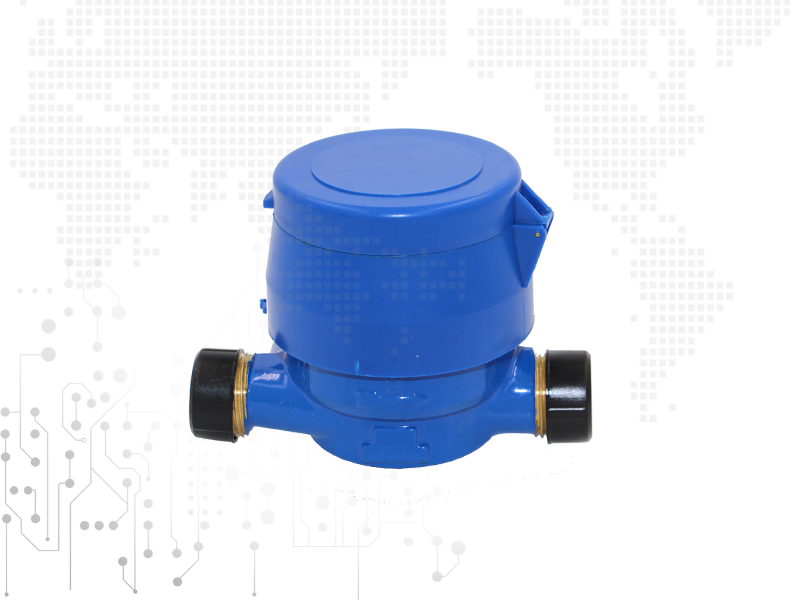

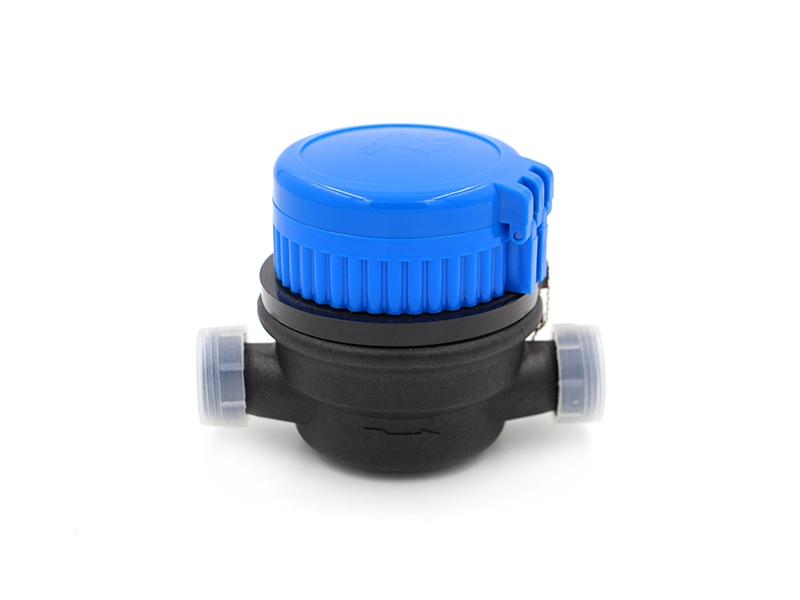

Single flow rotor dry water meter

Features: Place of Origin: CHINA
Brand Name: WESDOM/Customer-designed
Certification: ISO 4064
Model Number: LXDG-15~20
Water temperature: 0.1℃~30℃
Water pressure: ≤1.0Mpa

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Adoptive standards
  • Features
  • Application
  • Inquiry

Product parameter:

MAIN TECHNICAL SPECIFICATIONS

Type Size(mm) R=Q3/Q1 Q4 Q3 Q2 Q1 Minimum Reading Maximum Reading
L/h
LXDG-15 15 100 3125 2500 40 25 0.00005 99,999
LXDG-20 20 100 5000 4000 64 40 0.00005 99,999
LXDG-25 25 100 7875 6300 100.8 63 0.00005 99,999

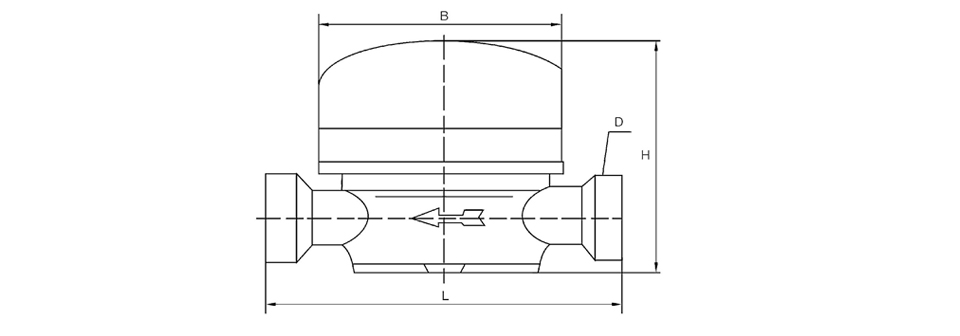

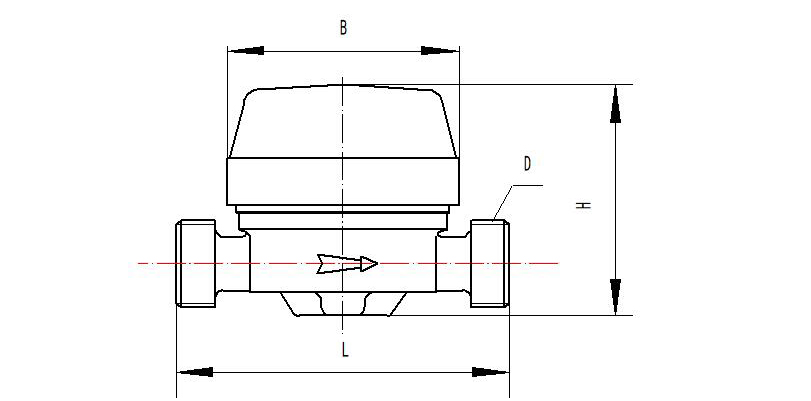

DIMENSIONS

Type Size L Length B Width H Height d Connecting Thread
mm
LXDG-15M 15 110 80 86 G3/4B
LXDG-20M 20 130 80 86 G1B
LXDG-25M 25 130 80 86 G11/4B



Adoptive standards:

 Application:

--Measuring the volume of cold potable water passing through the pipeline.



Feature:

--Single-jet, dry-dial, free rotating register, small in size and light in weight,

--Magnetic drive, Resistance to exterior magnet interference,

--Keep the reading clear in a long term service.



Note:

--Measuring accuracy conform to ISO 4064 class B standard.



Working condition:

--Water temperature:   0.1℃~30℃

--Water pressure   : ≤1.0Mpa



Maximum Permissible Error:

(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%.

(2) in the upper zone from qt inclusive up to and including qs is ±2%.



Features:

--Single-jet, dry-dial, free rotating register, small in size and light in weight,

--Magnetic drive, Resistance to exterior magnet interference,

--Keep the reading clear in a long term service.

Application:

--Measuring the volume of cold potable water passing through the pipeline.
