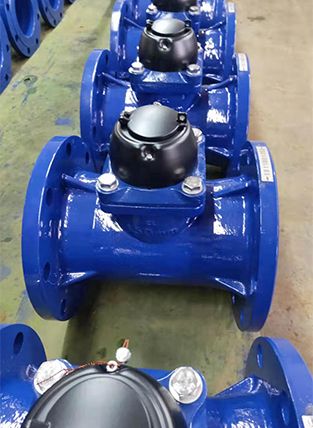

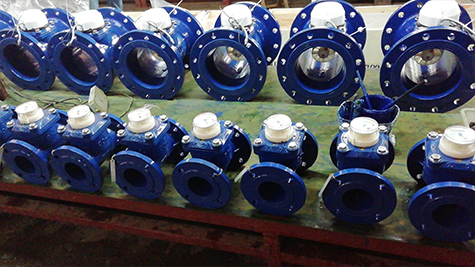

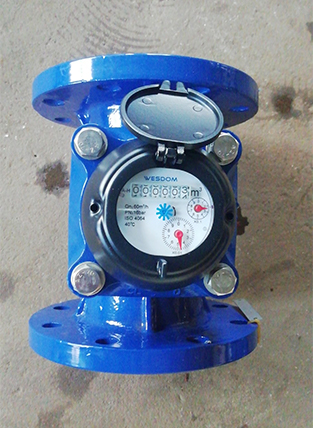

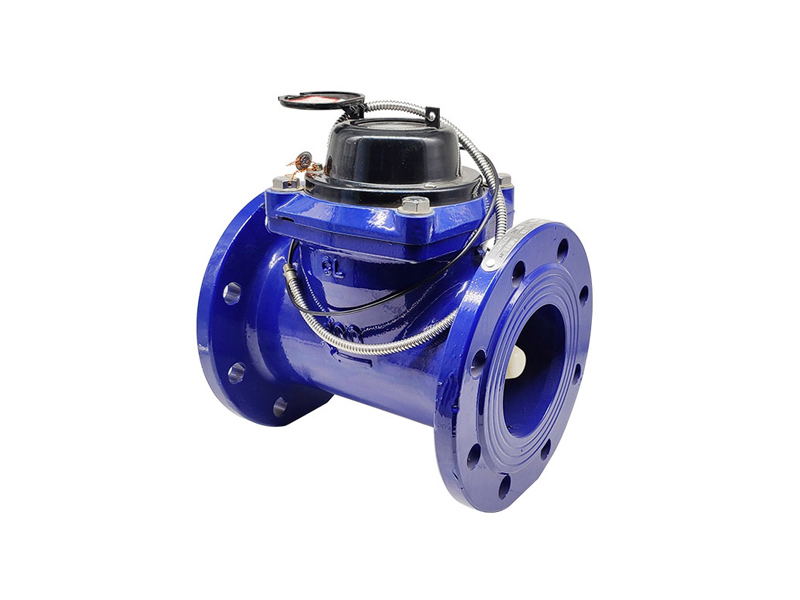

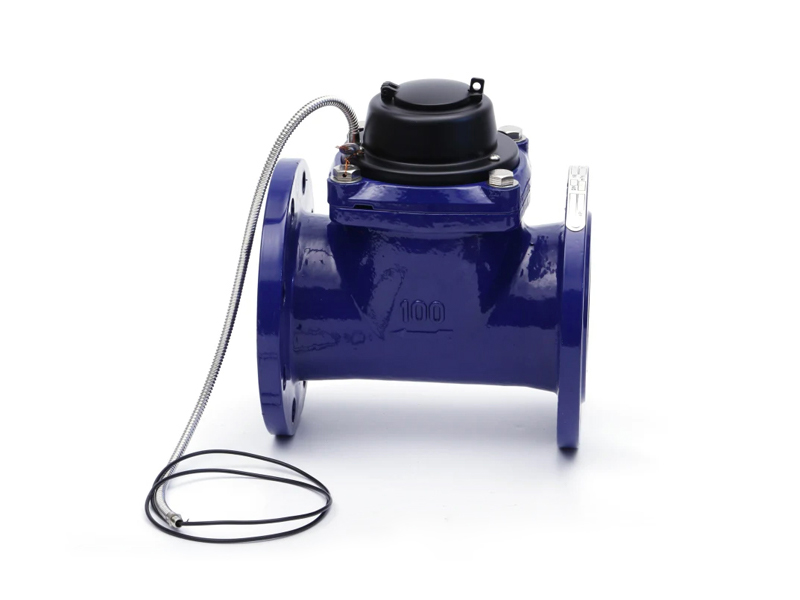

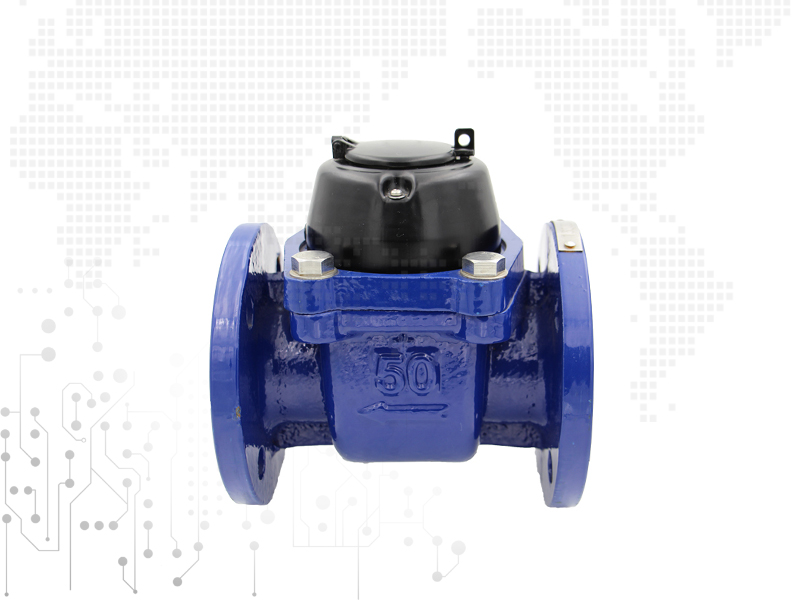

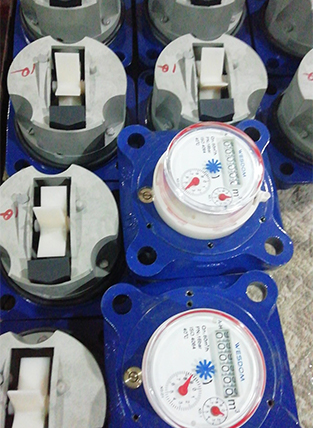

spiral vane flange water meter

Features: Place of Origin: CHINA
Brand Name: WESDOM/ Customer-Designed
Certification: ISO
Model Number: LXXG(R)-50~300(mm)
Water temperature: 0.1℃~40℃ ( 0.1℃~90℃ for hot water meter)
Water pressure: ≤1Mpa (1.6MPa for special requirement)

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Adoptive standards
  • Features
  • Application
  • Inquiry

Product parameter:



MAIN TECHNICAL SPECIFICATIONS

Type

Size(mm)

Class

qs Overload Flow

qp Permanent Flow

qt Transitional Flow

qmin Min.Flow

Min.Reading

Max.Reading

m3/h

m3

LXLC-50

50

A

30

15

4.5

1.2

0.0002

999,999

B

3.0

0.45

LXLC-65

65

A

50

25

7.5

2.0

0.0002

999,999

B

5

0.75

LXLC-80

80

A

80

40

12

3.2

0.002

999,999

B

8.0

1.2

LXLC-100

100

A

120

60

18

4.8

0.002

999,999

B

12

1.8

LXLC-125

125

A

200

100

30

8

0.002

999,999

B

20

3

LXLC-150

150

A

300

150

45

12

0.002

999,999

B

30

4.5

LXLC-200

200

A

500

250

75

20

0.002

999,999

B

50

7.5

LXLC-250

250

A

800

400

120

32

0.002

9,999,999

B

80

12

LXLC-300

300

A

1200

600

180

48

0.02

9,999,999

B

120

18

Adoptive standards:

Maximum permissible errors

(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%
(2) in the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)



Features:

--Removable element structure, easy installation and maintenance, register for universal use within this range detachable without Removing the meter from the pipeline;

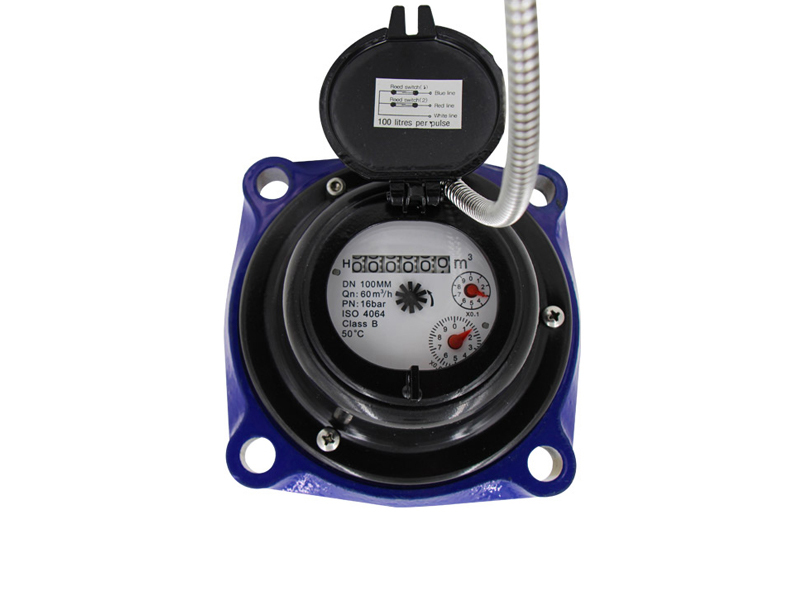

--Dry-dial, Magnetic drive sensitive action, small pressure loss;

--Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service;

--Selected high quality materials for steady & reliable characteristic;

--Technical data conform to international standard ISO 4064.

DIMENSIONS

Type

Size

L Length

H Height

Connecting flange

φD1 Outside  diameter

φD2 Bolt circle diameter

Connecting  Bolts (n-M)

mm

LXLC-50

50

200

261

165

125

4-M16

LXLC-65

65

200

271

185

145

4-M16

LXLC-80

80

225

279

200

160

8-M16

LXLC-100

100

250

289

220

180

8-M16

LXLC-125

125

250

299

250

210

8-M16

LXLC-150

150

300

319

285

240

8-M20

LXLC-200

200

350

346

340

295

8-M20(1.0MPa)

12-M20(1.6MPa)

LXLC-250

250

450

450

395(1.0MPa)

350(1.0MPa)

12-M20(1.0MPa)

405(1.6MPa)

355(1.6MPa)

12-M24(1.6MPa)

LXLC-300

300

500

478

445(1.0MPa)

400(1.0MPa)

12-M20(1.0MPa)

460(1.6MPa)

410(1.6MPa)

12-M24(1.6MPa)

Application:

 --Measuring the volume of cold (hot) water passing through the pipeline
