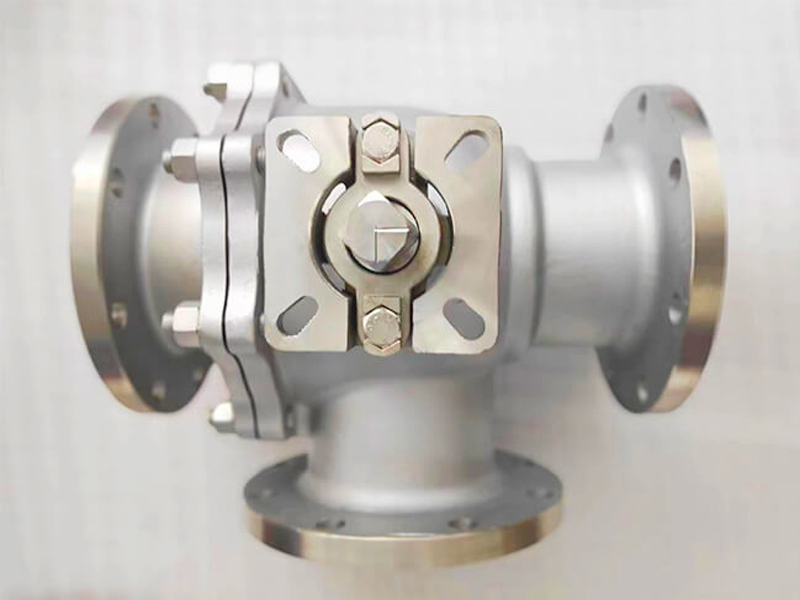

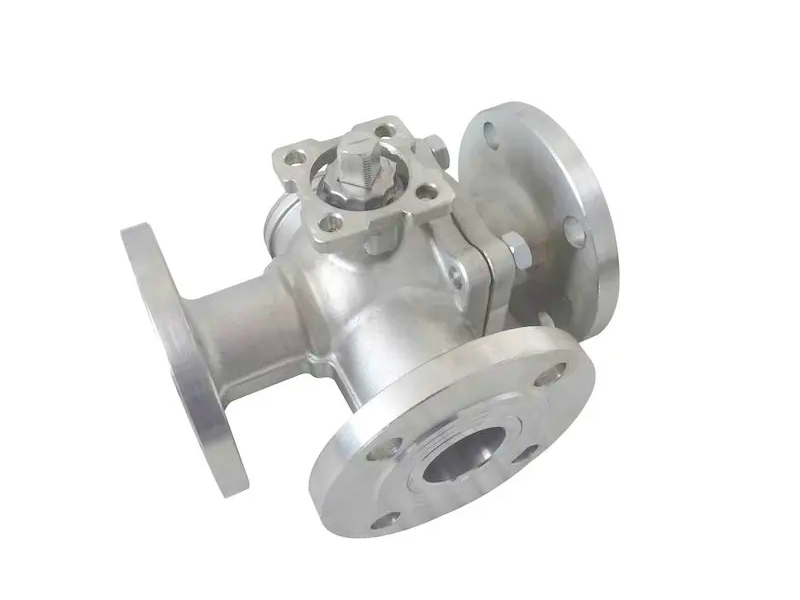

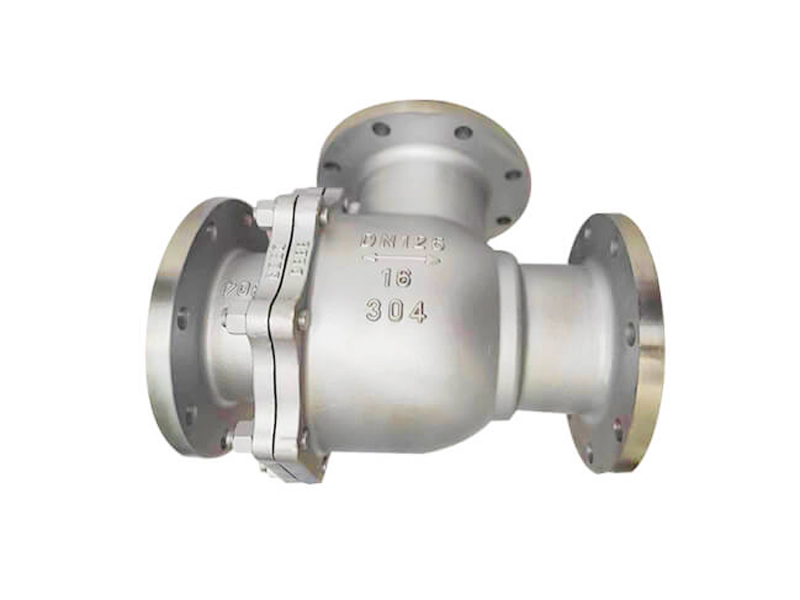

Flanged three-way ball valve
Features:
Size Range: 1/2″ ~ 8″, DN15~DN200
Pressure: 1.6~6.4MPa
Port Thread NPT, BSPP, BSP
Temperature: NBR: -5℃~80℃; EPDM: -5℃~120℃; VITON: -5℃~120℃; PTFE: -30°~180°
Medium: Water, Air, Steam, Gas, Oil, etc
We're here to help:
Easy ways to get the answers you need.
Parameter:
Three way ball valve can be divided in to L type and T type. L type three way ball valve (Q44F) is used to change the flow direction and connect mutually perpendicular two pipelines.
T type three way ball valve (Q45F) is utilized to divert, interflow and flow reversal, which can connect three pipelines or two pipelines. Three way ball valve usually adopts two valve seats, it can also utilize four valve seats as required.
|

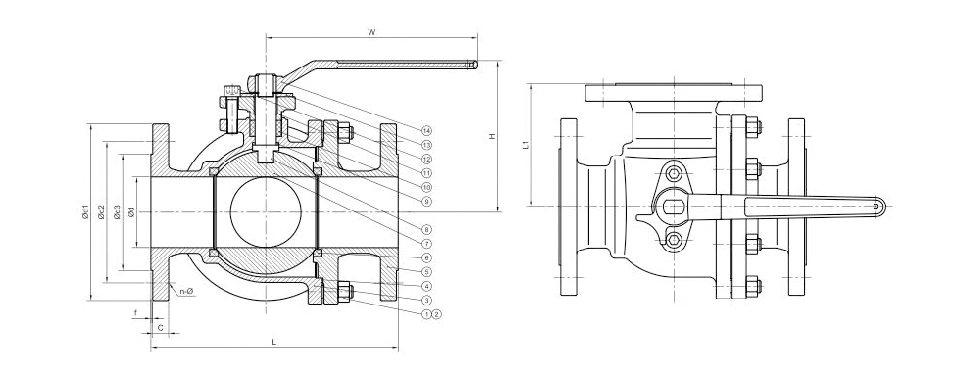

Nominal Pressure |
Nominal Diameter |
L |
L1 |
H |
W |
Weight(kg) |
|||||
|
Mpa |
mm |
in |
mm |
mm |
mm |
mm |
1.6 |
2.5 |
4.0 |
CL150 |
JIS10K |
|
1.6 2.5 4.0 CL150 JIS10K |
15 |
1/2 |
130 |
65 |
62 |
100 |
2.5 |
3.0 |
3.5 |
2.5 |
2.5 |
|
20 |
3/4 |
150 |
75 |
68 |
160 |
3.0 |
3.5 |
4.5 |
3.0 |
3.6 |
|
|
25 |
1 |
160 |
80 |
75 |
160 |
4.8 |
5.0 |
6 |
5.0 |
5.0 |
|
|
32 |
1 1/4 |
180 |
90 |
85 |
200 |
6.5 |
7 |
8.5 |
7 |
7 |
|
|
40 |
1 1/2 |
200 |
100 |
95 |
200 |
8.5 |
9 |
10.5 |
9 |
9 |
|
|
50 |
2 |
230 |
115 |
110 |
250 |
11 |
12 |
14 |
12 |
11 |
|
|
65 |
2 1/2 |
290 |
145 |
130 |
300 |
15 |
17 |
20 |
16 |
16 |
|
|
80 |
3 |
310 |
155 |
155 |
400 |
21 |
22 |
32 |
21 |
22 |
|
|
100 |
4 |
350 |
175 |
180 |
500 |
33 |
36 |
50 |
36 |
36 |
|
|
125 |
5 |
400 |
200 |
250 |
600 |
65 |
70 |
80 |
68 |
70 |
|
|
150 |
6 |
480 |
240 |
275 |
800 |
103 |
110 |
120 |
105 |
105 |
|
|
200 |
8 |
580 |
290 |
325 |
1000 |
152 |
168 |
180 |
160 |
160 |
|
WESDOM Advantages
1.WESDOM patent products, patent certification
The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.
2.The product has an independent identity to ensure traceability
Each wesdom product has its own unique identification number, to ensure product traceability.
3.Provide material inspection report
All wesdom products can provide the material inspection report of the main parts.
4.One-stop service
One-stop service, we not only supply high quality products, also supply solutions and after-sales service.
5.WESDOM has a lot of project experience
We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.
6. WESDOM has a strict quality control system
WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.
Quality Control Process
Standards&Features:
Performance parameter of three way ball valve:
|
Test Pressure |
Nominal Pressure (Mpa) |
||||
|
Mpa |
1.6 |
2.5 |
4.0 |
CL150 |
JIS10K |
|
Shell |
2.4 |
3.8 |
6.0 |
3.2 |
2.4 |
|
Seal |
1.8 |
2.8 |
4.4 |
2.2 |
1.5 |
|
Air |
0.5-0.7 |
||||
|
Working Temperature |
PTFE≤150℃ PTL≤300℃ |
||||
|
Applicable Temperature |
C: water, oil, gas; P: nitrose; R: acetate |
||||
Features:
②Full port construction improves flow characteristics
③Standard mounting pad for ease of automation
④Live-loaded stem packing improves cycle life
⑤Balanced 4 seat construction provides for positive shut off
Advantages:
1. ISO 5211 Mounting Pad
Standard mounting pad dimensions make it easy to assemble electric or pneumatic actuators
2. High-Cycle, Live Loaded Stem Packing
Dynamic loading on stem packing ensures a tight seal through varying pressure and temperature conditions, extending service life and reducing maintenance costs
3. Blow-Out-Proof Stem
Stem is bottom loaded to prevent removal when the valve is in service
4. Full Port Design
Full port construction improves flow characteristics for greater process efficiencies
5. Multi-Position Lever Handle
The lever handle can be positioned in two (1/2"-2") or four (3"-4") different orientations for greater piping flexibility
6. 90° or 180° Actuation
Stop plates are available for both 90° and 180° actuation
Case:
Indonesia Mining Plant
L-type flanged three-way ball valve
Project description:
The high quality won good comments from customers!
Client feedback:
WESDOM products are of high quality, Now all products have well installed on site.

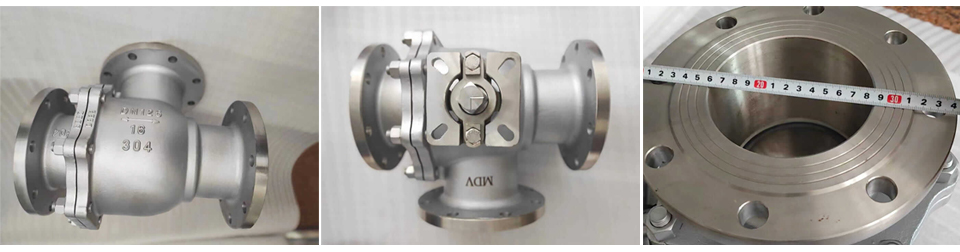

Project pictures:
Application:
Flanged three-way ball valves find applications in various industries and systems where the flow needs to be diverted or merged in different directions.
1. Process control:
Flanged three-way ball valves are used in process control systems to direct the flow of fluids between different process lines or to mix different fluids. They allow for precise control and adjustment of the flow rates and can be used in various industries such as chemical, pharmaceutical, and petrochemical.
2. Heating and cooling systems:
Flanged three-way ball valves are utilized in heating and cooling systems to control the flow of hot and cold water or other heat transfer fluids. They can divert the flow between different circuits or mix hot and cold fluids to achieve the desired temperature.
3. Water and wastewater treatment:
Flanged three-way ball valves are commonly used in water and wastewater treatment plants for controlling the flow of water, chemicals, and sludge. They can redirect the flow to different treatment processes or mix different chemicals for efficient treatment.
4. HVAC systems:
Flanged three-way ball valves are employed in heating, ventilation, and air conditioning (HVAC) systems for controlling air and water flow. They can divert air or water between different zones or adjust the temperature by mixing hot and cold fluids.
5. Oil and gas industry:
Flanged three-way ball valves are utilized in oil and gas pipelines and processing facilities for flow diversion or merging. They can be used to redirect the flow to different pipelines or to mix different streams for processing.
6. Power generation:
Flanged three-way ball valves find applications in power plants for the control and diversion of various fluids, such as steam, condensate, and cooling water. They can direct the flow between different systems or mix different streams for efficient operation.
7. Food and beverage industry:
Flanged three-way ball valves are used in food and beverage processing plants for diverting or merging the flow of liquids, such as different ingredients or cleaning solutions. They ensure efficient mixing or separation of fluids in different processing stages.
