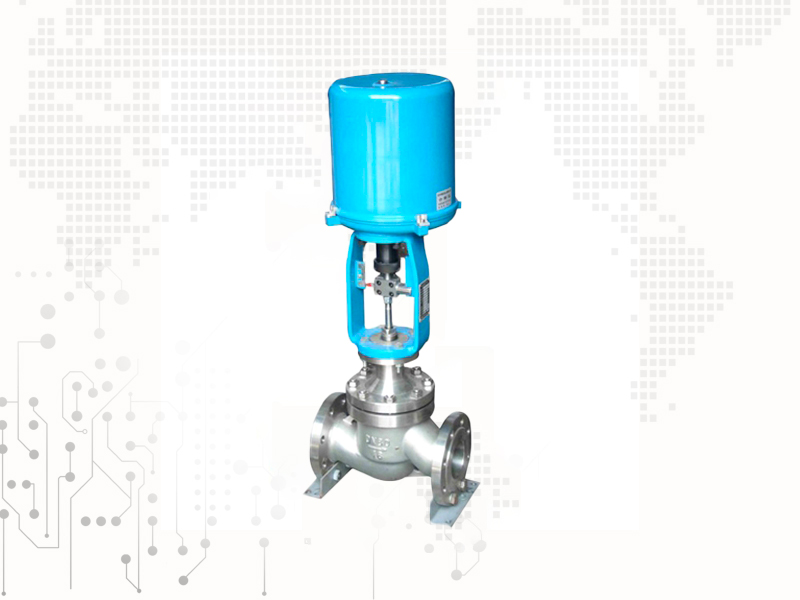

Electric three-way control valve

Features: DN: 25、32、40、50、65、65、80、100、125、150、200、250、300
PN: 1.6、2.5、4.0、6.4、10
Flow characteristics: Linear, equal percentage, quick opening
flange standard: JB/79.1(2)-94、HG20592-97、GB、ANSI、JIS、DIN
Operating emperature: -40~230℃

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Adoptive standards
  • Features
  • Application
  • Inquiry

Product parameter:




DN

25

32

40

50

65

80

100

125

150

200

250

300

L

PN16

185

200

220

250

275

300

350

410

450

550

670

770

PN40

190

210

230

255

285

310

355

425

460

560

740

803

PN64

200

200

240

265

295

320

370

440

475

570

752

819

H1



135

152

165

180

200

220

222

265

322

362

508

563

A

225

310

H

555

561

660

675

863

868

872

905

920

950

1203

1265

Normal temperature

Weight

707

709

812

827

1027

1032

1036

1120

1135

1165

1485

1557

(PN64 Normal temperature

50

55

70

78

110

120

150

180

310

410

650

810






Adoptive standards:

DN:25、32、40、50、65、65、80、100、125、150、200、250、300
PN:1.6、2.5、4.0、6.4、10
Flow characteristics:Linear, equal percentage, quick opening
flange standard:JB/79.1(2)-94、HG20592-97、GB、ANSI、JIS、DIN
Operating emperature:-40~230℃

Features:

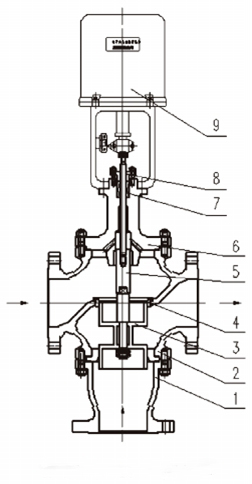

ZDLQ, ZDLX series electronic electric three-way regulating valve is composed of 3610L electronic electric actuator and three-way regulating mechanism. There is a servo system in the electric actuator, no need to be equipped with a servo amplifier, there is a broadcast signal and power source to control the operation, and the wiring is simple. The regulating mechanism has two modes of action: confluence and divergence. In some cases, it can replace two two-way valves and one three-way pipe and be widely used. Commonly used for two-phase adjustment and simple ratio adjustment of heat exchangers.

Application:

1.Petrochemical;
2.Chemical industry;
3.Metallurgy;
4.Electric power;
5.Water conservancy;
6.Urban construction;
7.Fire fighting;
8.Machinery;
9.Food.
