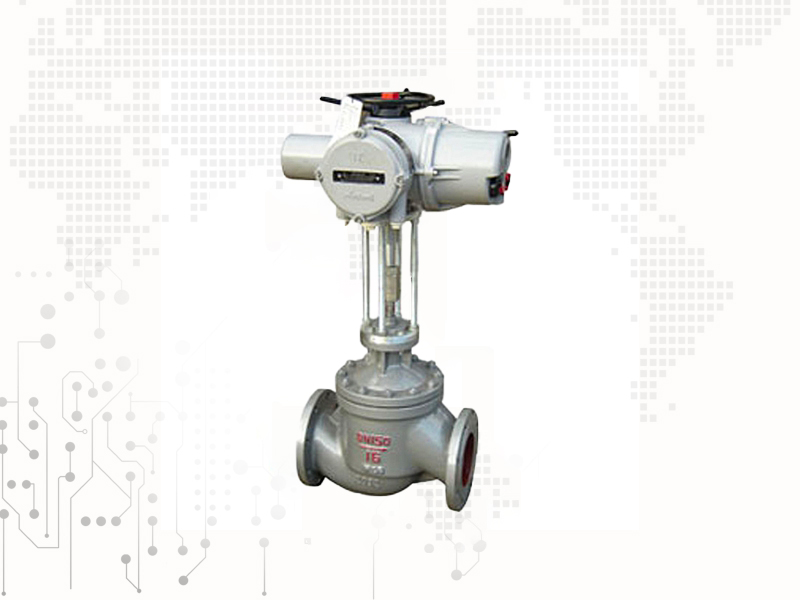

Electric sleeve control valve

Features: DN: 25、32、40、50、65、80、100、125、150、200、250、300
PN: 1.6、2.5、4.0、6.4、10
Operating emperature: -40~+230℃、+230~十450℃、other
flange standard: JB/79.1-94、HG20592-97、GB、ANSI、JIS、DIN
body material: WCB、304、316、WC6、WC9、titanium、nickel、Hastelloy、Monel

We're here to help:
Easy ways to get the answers you need.

  • Parameter
  • Standards&Features
  • Case
  • Application
  • Inquiry

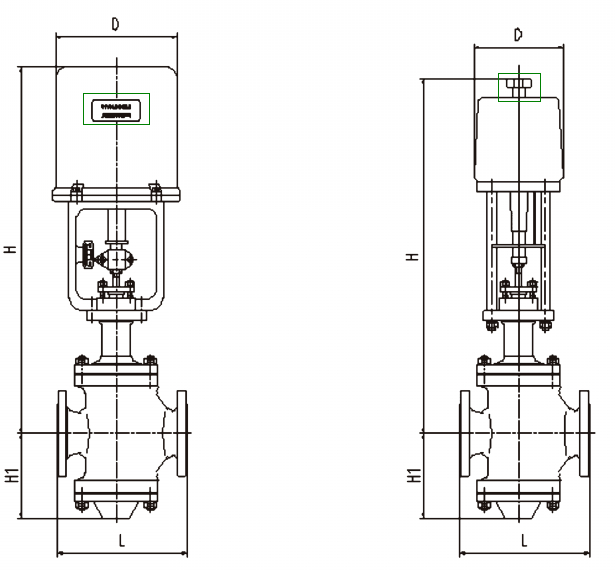

Parameter:


DN

20

25

40

50

65

80

100

150

200

250

300

L

PN16

187

184

222

254

276

298

352

451

600

673

737

PN40

194

197

235

267

292

317

368

473

600

708

775

PN64

206

210

251

286

311

337

394

508

650

752

819

H1(PN16)

52.5

57.5

72.5

80

90

97.5

107.5

140

167.5

202.5

230

Match
PSL

H

normal type

738

750

765

767

845

857

875

1025

1045

1252

1545

Heat sink type

888

900

935

937

1025

1037

1055

1255

1280

1532

1825

D

176

225

Weight KG(PN16)

280

14

16

25

28

40

50

65

150

250

380

Match
361L

H

normal type

500

512

652

660

770

780

790

1080

1125

1250

1265

Heat sink type

650

662

822

822

950

960

970

1310

1360

1530

1545

D

225

310

WeightKG(PN16)

20

22

30

35

50

60

75

180

420

550

580

Standards&Features:

DN:25、32、40、50、65、80、100、125、150、200、250、300
PN:1.6、2.5、4.0、6.4、10
Flow characteristics:Linear, equal percentage, quick opening
Operating emperature:-40~+230℃、+230~十450℃、other
flange standard:JB/79.1-94、HG20592-97、GB、ANSI、JIS、DIN
body material:WCB、304、316、WC6、WC9、titanium、nickel、Hastelloy、Monel

Case:

The electric sleeve regulating valve can control the operation by receiving the control signal and power supply (4-20mA DC, 0-10mA DC or 1-5V DC) input from the regulating instrument, and realize the automatic regulation and control of the process pipeline fluid;A wide range of valve control gas, liquid, steam and other medium process parameters, such as pressure, flow, temperature, liquid level and other parameters are kept at a given value. It is a general-purpose regulating valve product that meets the IEC standard. The double seat valve has the characteristics of small unbalanced force, large allowable pressure difference, and large flow capacity. It is suitable for clean medium occasions where leakage requirements are not strict and pressure difference penetrates. It is widely used in electricity, metallurgy, chemical industry, petroleum, environmental protection, and light Industry, equipment and other industries.

Application:

1.Petrochemical;
2.Chemical industry;
3.Metallurgy;
4.Electric power;
5.Water conservancy;
6.Urban construction;
7.Fire fighting;
8.Machinery;
9.Food.
