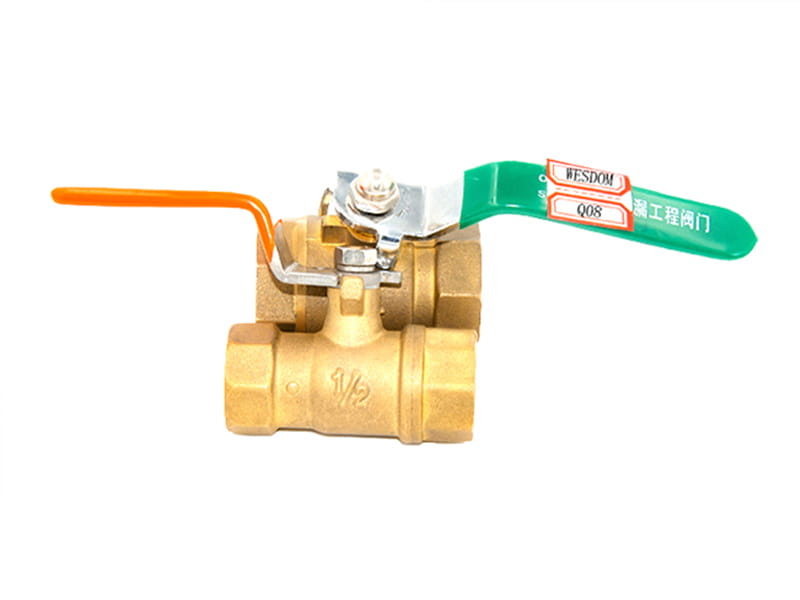

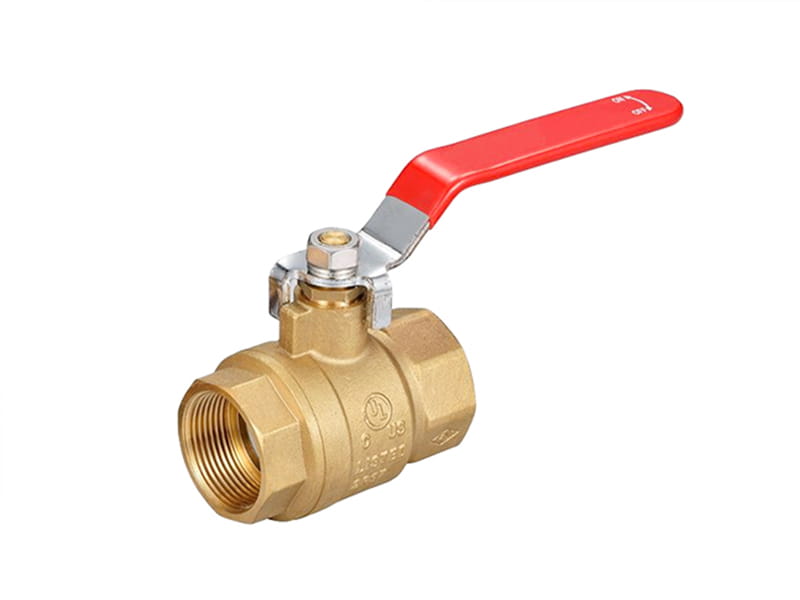

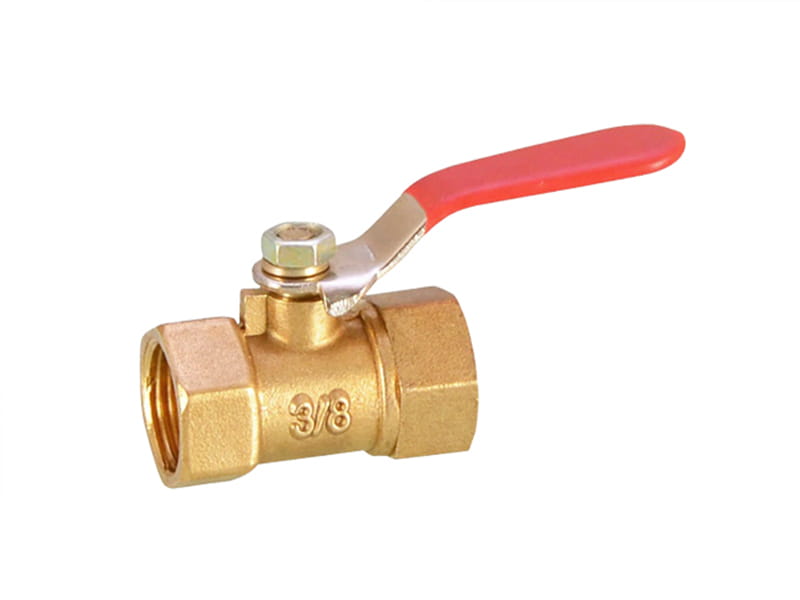

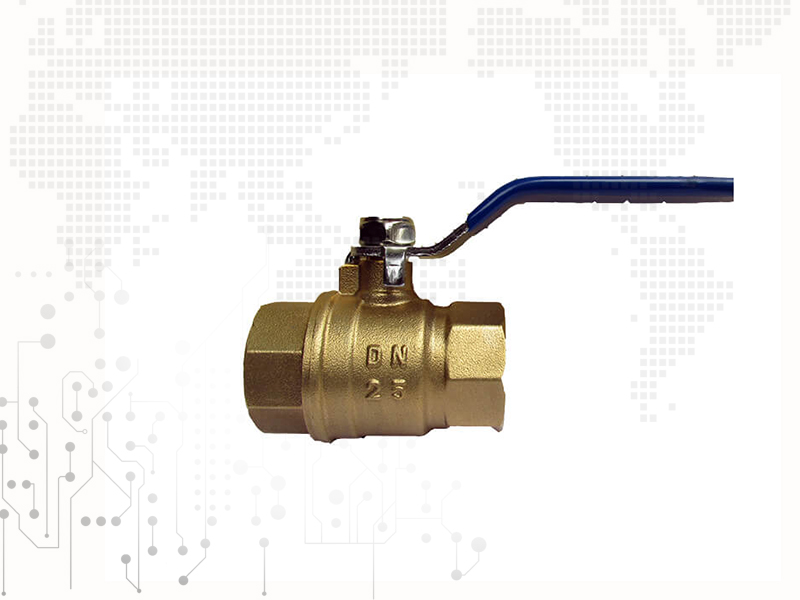

Copper Ball Valve (Thread)

Features: Nominal Diameter: 15-50mm
Nominal Pressure: 1.6 Mpa
Valve Body Material: Brass
Suitable medium: Water、Non corrosive liquid、steam

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Adoptive standards
  • Features
  • Application
  • Inquiry

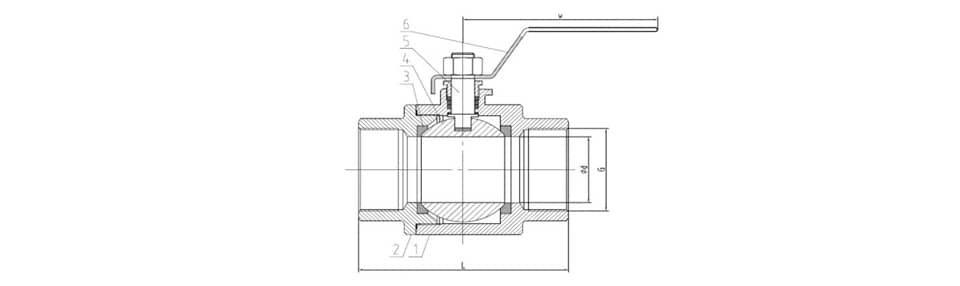

Product parameter:

DN G/in L B H D
15 Rp1/2 57 14 48.5 88
20 Rp3/4 61 17 51.5 88
25 Rp1 68.5 20 56.5 105
32 Rp1-1/4 74 25 64 135
40 Rp1-1/2 83 29 67 135
50 Rp2 94 40 85 145

Adoptive standards:

Body:CW619N
Spring spacer:1Cr18Ni9
Seat:PTFE
Ball:201A HPb59-3 201B QT20-40
Hand wheel:Q235
Packing:PTFE
Bonnet:CW619N
Nut:1Cr18Ni9
Stem:HPb59-1
Cap:HPb59-3


Features:

1.The design is novel, reasonable, unique structure, light weight, quick opening and closing.
2.The operating torque is small, the operation is convenient, and the labor saving is easy.
3.It can be installed in any location, convenient maintenance.
4.The sealing piece is convenient to maintain and easy to change.

Application:

1.Petroleum;
2.Chemical;
3.Pharmaceutical and other industries.
4.The nominal pressure is less than 1.6Mpa,

5.The water vapor pipeline for opening and closing, generally do not make use of closure.
