Copper Strainer
Features:
Product name : Copper Strainer
Inside Nominal Diameter: 15-50mm
Body material: copper
Nominal Pressure: 1.6 Mpa
Applicable temperature: ≤150℃
Applicable media: water ,Non corrosive liquid,Saturated steam
We're here to help:
Easy ways to get the answers you need.
Parameter:
The filter mesh is dual thickness 60 mesh (0.25mm aperture) stainless steel to provide water systems with superior protection from debris and resistance to damage. Designed with an O-Ring seal access port to the sleeve filter, the Protector YC allows for easy servicing with no need to replace.

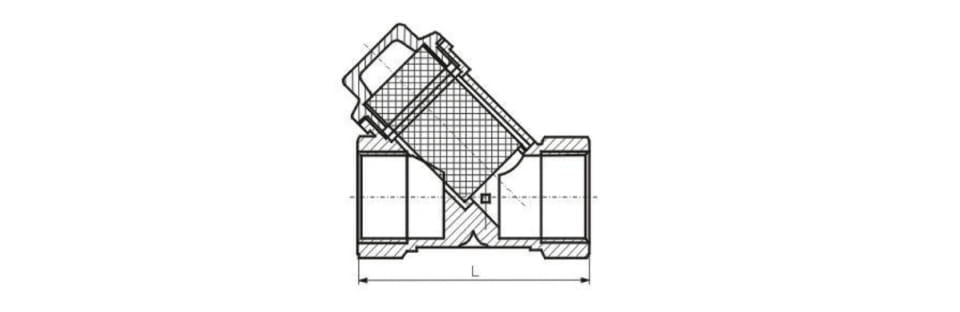

| DN | G/in | L |
| 15 | 1/2 | 56 |
| 20 | 3/4 | 69 |
| 25 | 1 | 82 |
| 32 | 1-1/4 | 90 |
| 40 | 1-1/2 | 101 |
| 50 | 2 | 121 |
|
Product name |
Brass filter valve |
|
Model |
LTK601 |
|
Place of Origin |
Shandong, China |
|
Color |
Golden |
|
Pressure |
≤1.6MPa |
|
Material |
brass |
|
Medium |
Water |
|
Power |
Hydraulic |
|
Package |
Neutral |
|
Certificate |
ISO9001 |
Standards&Features:
Features and benefits:
Protects water systems from debris
Compression connections for simple low-cost installation
Compact DZR brass body
Access port to sleeve filter, allows servicing without replacing
O-Ring seal on access port for ease of service
Dual thickness gauze for improved resistance to damage
Stainless steel 60 mesh filter
Suitable for hot and cold and central heating applications
Compatible with copper pipe only
Case:
1.Brass strainer is conveying medium piping is indispensable in a device, usually installed in the valve, relief valve, water valves or other equipment import end, used to remove impurities in the media and to protect the valves and equipment in normal use.
2.When the fluid into the home of a certain size filter cartridge, the impurities are blocked, and clean filtrate from the filter outlet discharge, when cleaning, as long as can be disassembly of the filter removed, you can reload after treatment. Therefore, the use of the maintenance is very convenient.
Application:
Brass Strainer is widely used in heat, health systems, and water supply and drainage, compressed air and other systems.
