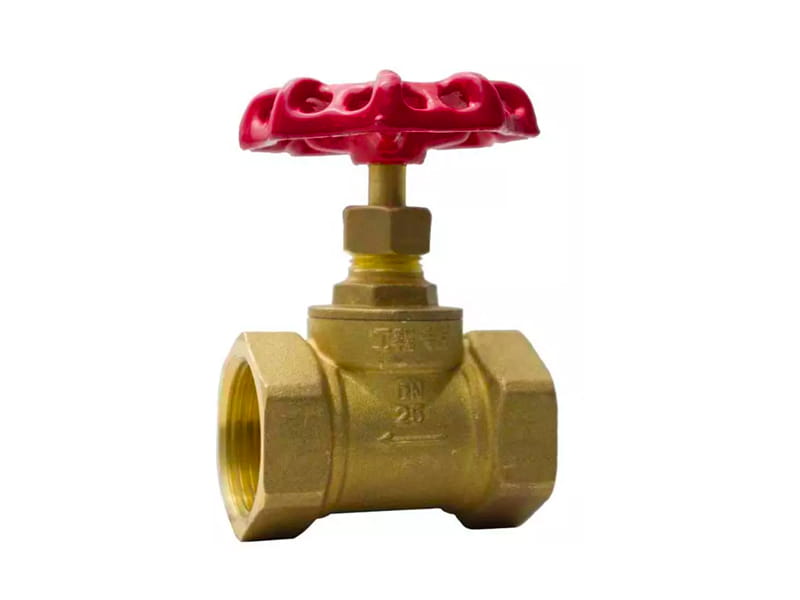

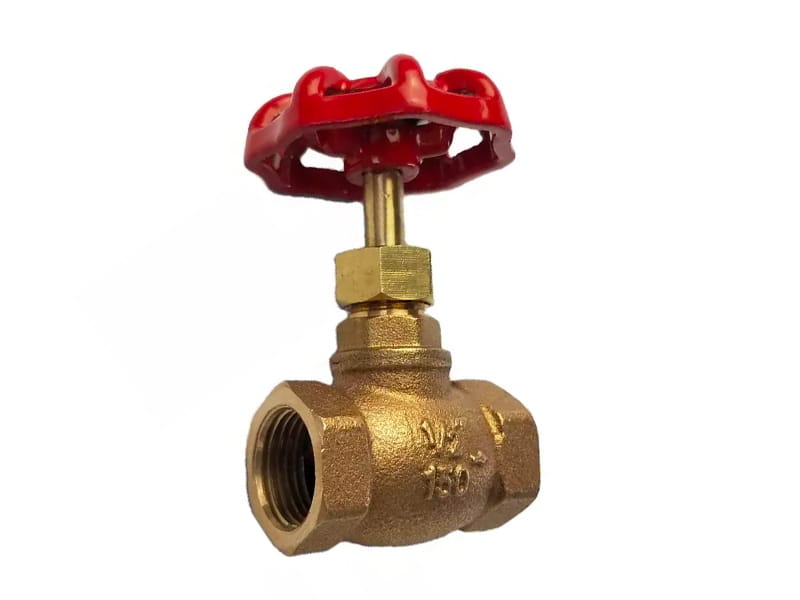

Copper Globe Valve

Features: Body CW619N: Sealing PTFE Hand wheel HT20-40
Core HPb59-1: Packing PTFE Nameplate LF21
Bonnet CW619N : Pressure cap HPb59-3 Nut 1Cr18Ni9

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Adoptive standards
  • Features
  • Application
  • Inquiry

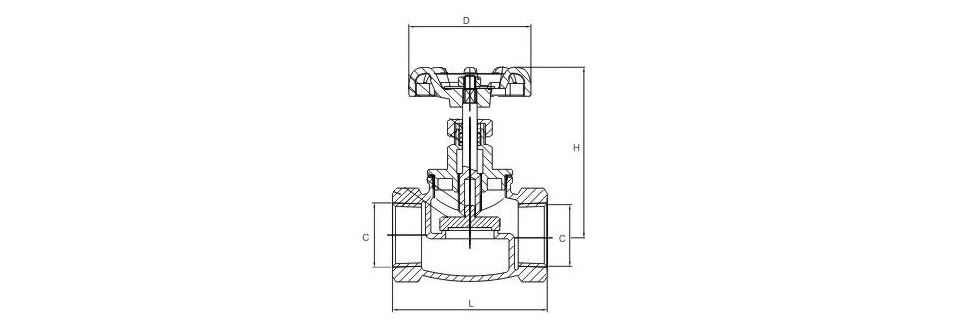

Product parameter:

DN SIZE L H D d
10 3/8" 40 53 45 9
15 1/2" 47 71 55 12
20 3/4" 55 67 55 15
25 1" 66 81 70 18
32 1 1/4" 77 95 80 27
40 1 1/2" 83 118 80 34
50 2" 99 135 98 41



Adoptive standards:

Main parts and materials
Bady :CW619N

Spool :HPb59-1
Bonnet: CW619N
Sealing spacer :PTFE
Packing :PTFE
Nut: HPb59-3
Hand :wheel HT20-40
Nameplates :LF21
Nut :1Cr18Ni9
1.12233-2006< GB/T universal valve iron globe valve and lift check valve>
2.12235-2007< GB/T universal valve flange connection steel valve and lift check valve>
3.JB/T53174-94< cut-off valve product quality grading >
4.JB/T53165-92< high pressure balance valve >
5.587-2008< GB/T marine bronze globe valve>
6.590-2008< GB/T marine flange cast iron globe valve >
7.GB/T 8464-2008< iron and copper thread connection valve>
8.GB8465.2-87< threaded gate valve, globe valve, ball valve, check valve size iron globe valve>


Features:

1.The structure is simple, manufacturing and maintenance is more convenient.
2.The work schedule is small, and the opening and closing time is short.
3.Good sealing, sealing surface between the friction force is small, long life.

Application:

Used to cut off or adjust and throttle.
