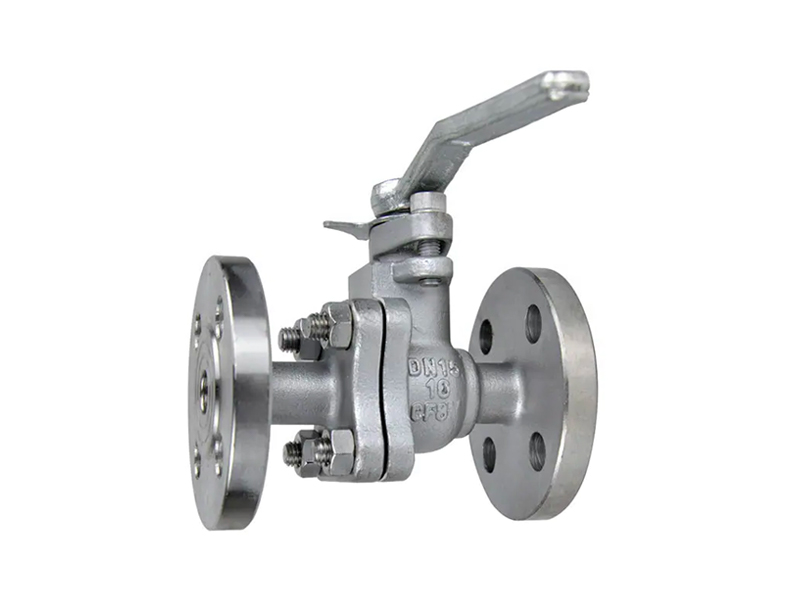

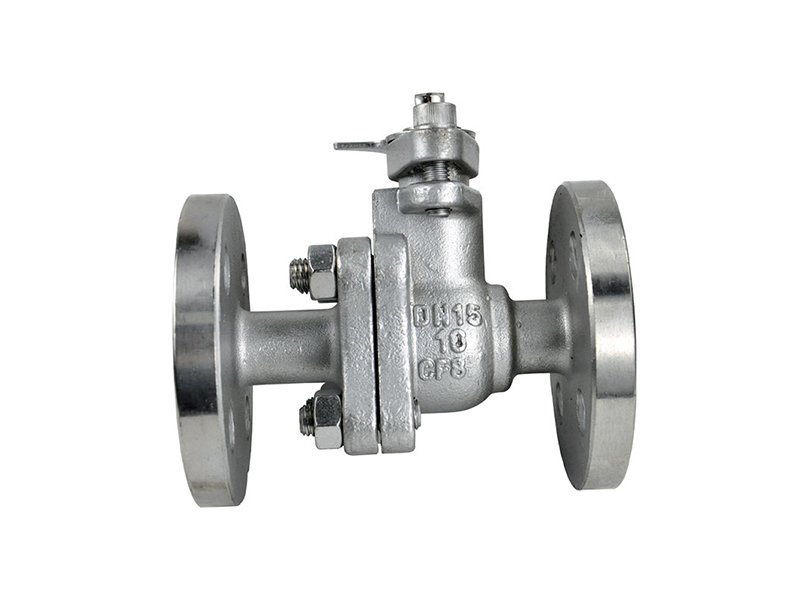

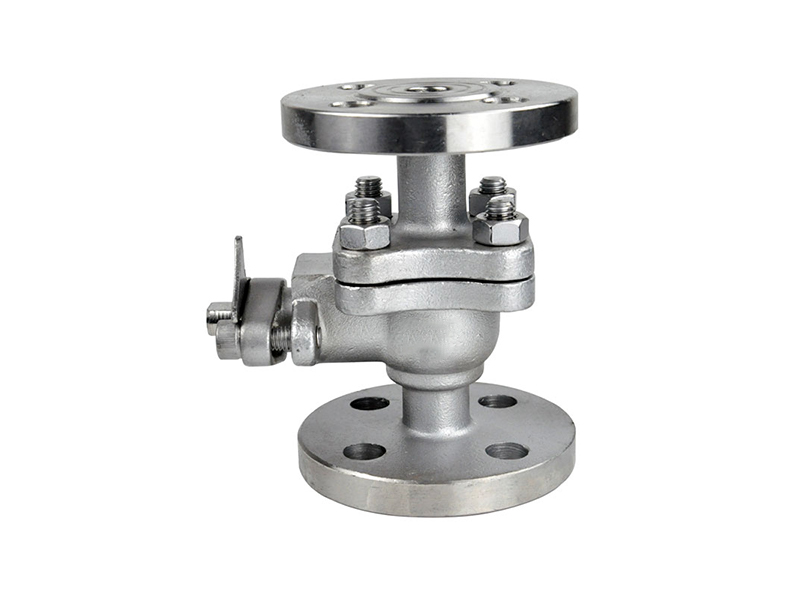

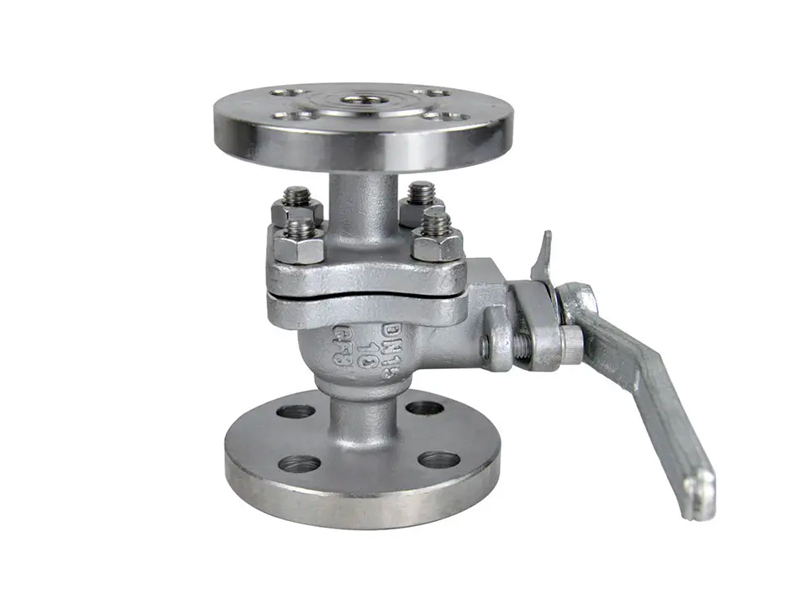

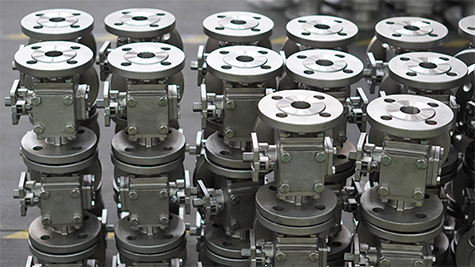

High platform flange ball valve

Features: Size:  DN15-DN200
Pressure Rating: 1000WOG
Material: SS304, SS316
Design Standard: ASME B16.34,GB/T12237,JISB2071
Inspection Standard: API598,GB/T13927,JISB2003
Application medium: Water, Sewage, Gas
Application Temperature: 0-150℃

We're here to help:
Easy ways to get the answers you need.

  • Parameter
  • Standards&Features
  • Case
  • Application
  • Inquiry

Parameter:



High platform flange ball valve is a relatively new type of ball valve, which has some unique advantages of its own structure, such as no friction switch, seal is not easy to wear, small opening and closing torque. This can reduce the size of the actuator. Equipped with multi rotary electric actuator, the medium can be adjusted and cut off tightly. It is widely used in petroleum, chemical industry, urban water supply and drainage, etc.

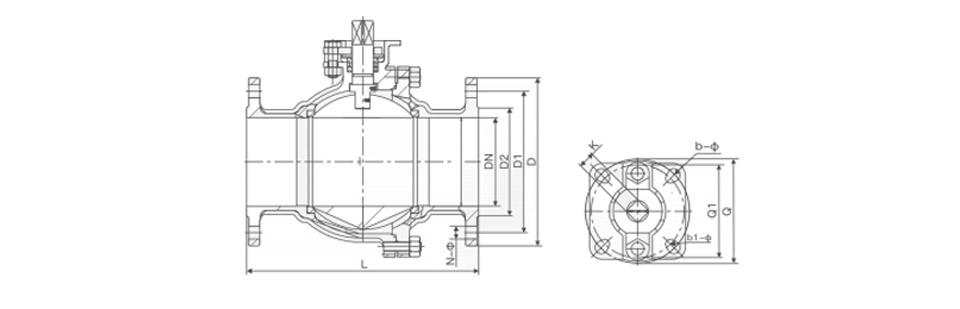

Nominal diameter

         L

D

D1

D2

C

F

N-Φ

K

Q

N–Φ

Q1

b1-Φ

Series 1

Series 2

15

130

130

95

65

45

14

2

4-Φ14

9

50

4-Φ7

42

4-Φ6

20

140

130

105

75

54

14

2

4-Φ14

9

50

4-Φ7

42

4-Φ6

25

150

140

115

85

65

14

2

4-Φ14

11

50

4-Φ7

/

/

32

165

165

135

100

75

16

3

4-Φ18

14

70

4-Φ9

/

/

40

180

165

145

110

83

18

3

4-Φ18

14

70

4-Φ9

/

/

50

200

203

160

125

100

18

3

4-Φ18

14

70

4-Φ9

/

/

65

220

222

180

145

118

20

3

4-Φ18

17

102

4-Φ12

70

4-Φ9

80

250

241

195

160

132

20

3

8-Φ18

17

102

4-Φ12

70

4-Φ9

100

280

305

215

180

153

20

3

8-Φ18

17

102

4-Φ12

70

4-Φ9

125

320

394

245

210

185

22

3

8-Φ18

22

125

4-Φ14

102

4-Φ12

150

360

394

280

240

210

24

32

8-Φ22

27

140

4-18Φ

102

4-Φ12

200

400

457

335

295

265

26

3

12-Φ22

36

165

4-Φ22

140

4-Φ18


WESDOM Advantages

1.WESDOM patent products, patent certification

The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.

2.The product has an independent identity to ensure traceability

Each wesdom product has its own unique identification number, to ensure product traceability.

3.Provide material inspection report

All wesdom products can provide the material inspection report of the main parts.

4.One-stop service

One-stop service, we not only supply high quality products, also supply solutions and after-sales service.

5.WESDOM has a lot of project experience

We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.

6. WESDOM has a strict quality control system

WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.

Quality Control Process



Standards&Features:

Advantages of high platform flange ball valve:

1. Friction free opening and closing:

This function completely solves the problem that the sealing essence of traditional valves is affected by the friction between sealing surfaces.

2. Top mounted structure:

The valve installed on the pipeline can be inspected and maintained directly online, which can effectively reduce the device and cost.

3. Single seat design:

Eliminates the problem that the medium in the valve cavity will affect the use safety due to abnormal pressure rise

4. Low torque design:

The valve stem with special structure design can be opened and closed easily with a small handle

5. Wedge seal structure:

The valve is sealed by the mechanical force provided by the valve stem, so that the sealing performance of the valve is not affected by the change of pipeline pressure difference, and the sealing performance is reliably guaranteed under various working conditions.

6. Cleaning structure of sealing surface:

When the ball leans away from the valve seat, the fluid in the pipeline passes through the sealing surface of the ball at 360 ° evenly, which not only eliminates the local scouring of the fluid on the valve seat, but also washes away the accumulation on the sealing surface, so as to achieve the purpose of self-cleaning.

Case:

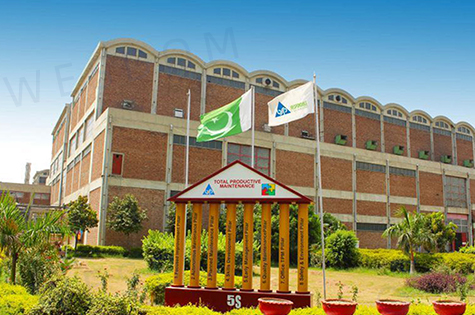

Pakistan Cardboard Factory

Main products:

DIN SS316 seamless pipes, DIN SS316 fittings, DIN SS316 flanges, SS knife gate valves, SS316 ball valves

This customer is the owner of a cardboard factory in Pakistan. The factory needs a lot of pipe fittings and valves. He also compared more than a dozen valve companies online, and then was deeply moved by the professional expression and enthusiasm of the business personnel of the WESDOM international department in final. And they choose to cooperate with WESDOM. Although it is the first time to cooperate with each other, but the final customer also gave us a high evaluation, WESDOM is very good!

Project pictures:







Application:

High platform flange ball valves are specifically designed for applications where the valve needs to be installed on a high platform or elevated position. These valves are commonly used in oil and gas, petrochemical, chemical processing, and power generation industries.

Some specific applications of high platform flange ball valves include:

1. Offshore oil and gas platforms:

These valves are used on offshore platforms where the valves need to be installed at a higher elevation due to the platform structure. They are used for controlling the flow of oil, gas, and various fluids in production, processing, and transportation systems.

2. Petrochemical and chemical processing plants:

High platform flange ball valves find applications in petrochemical and chemical processing plants requiring elevated installations. They are used for controlling the flow of chemicals, solvents, and various fluids in different processes, such as distillation, reaction, and separation.

3. Power generation plants:

These valves are used in power plants, especially in boiler feedwater systems, where elevated installations are common. They are used for controlling the flow of water, steam, and condensate in various stages of the power generation process.

4. Water and wastewater treatment plants:

High platform flange ball valves are used in water and wastewater treatment plants where the valves need to be installed at higher levels, such as on elevated tanks or platforms. They are used for controlling the flow of water, chemicals, and other fluids in different treatment processes.

5. Refineries:

These valves are used in refineries where elevated installations are necessary due to the complexity of the refining processes. They are used for controlling the flow of crude oil, refined products, and various chemicals in different refining units.
