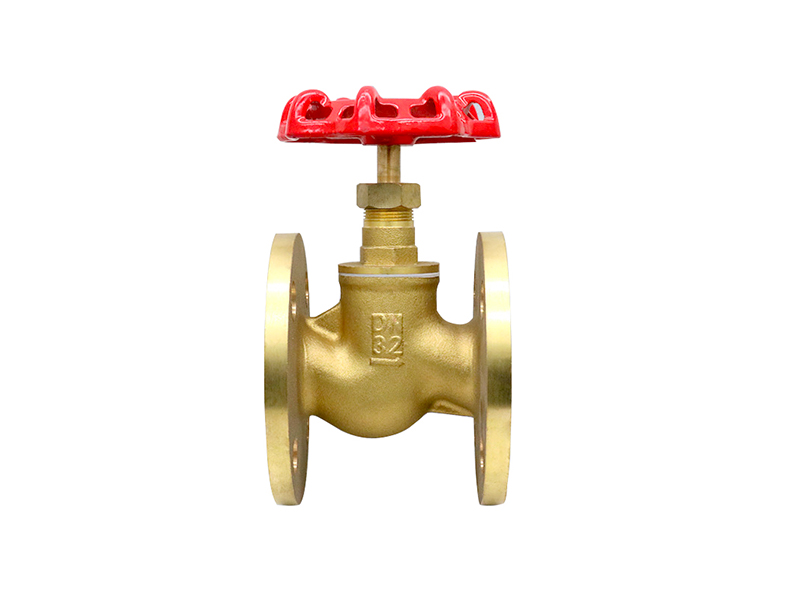

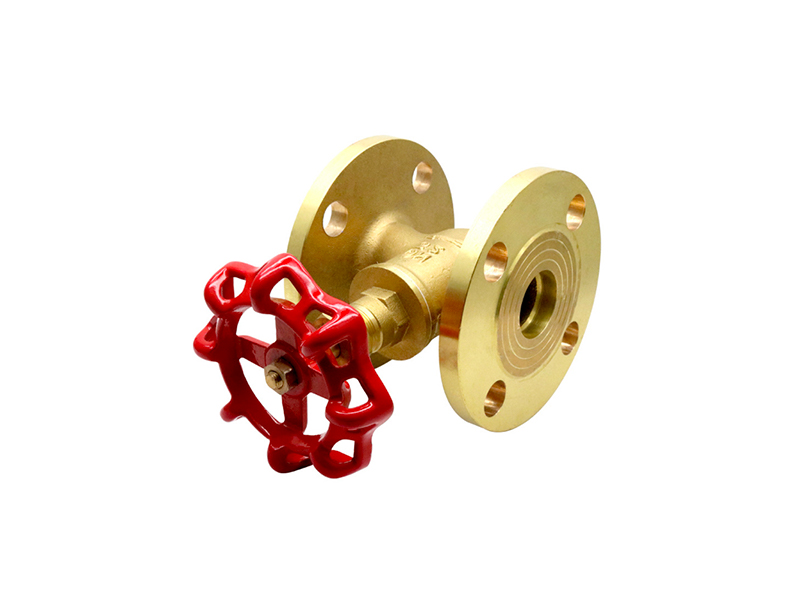

Brass Globe Valve
Features:
Material: Brass
Temperature of Media: Normal Temperature
Pressure: Medium Pressure
Power: Manual
Media: 1/2 " - 4"
We're here to help:
Easy ways to get the answers you need.
Parameter:
| NO. | Part Name | Material |
| 1 | Body | Brass |
| 2 | Wedge disc | Brass |
| 3 | Screw | Brass |
| 4 | Gasket | ABS |
| 5 | Bonnet | Brass |
| 6 | Lock cap | Brass |
| 7 | Packing | PTFE |
| 8 | Pressing cap | Brass |
| 9 | Handwheer | Q235 |
| 10 | Nut | Q235 |
Standards&Features:
| Spec | D | A | H | L | F |
| 1/2" | 13 | 45 | 68 | 35 | 9 |
| 3/4" | 14.5 | 45 | 69.3 | 38.5 | 10 |
| 1" | 19 | 19 | 79.5 | 41.5 | 10.5 |
| 1-1/4" | 25 | 60 | 87 | 47 | 11.5 |
| 1-1/2" | 32 | 70 | 105.5 | 48.5 | 11.5 |
| 2" | 48 | 78 | 123.5 | 54 | 13 |
| 2-1/2" | 60 | 89 | 166 | 63 | 15 |
Case:
|
Item: Gate Valve
Size: 1/2" - 4"
Brass material: 59-3
Connection Type: Female BSP x Female BSP
Handle Material: Hand Wheel
Stem Material: Brass
Body Material: Brass
Handle Material: IRON / AL
Bonnet Style: Threaded
Working Pressure: 16bar/232psi
|
Temp. Range: -20°C to+110°C
Handle Material: Cast Iron
Surface Treatment: Nickel Plating
Application: Flow control applications
Style: NonRising Stem, Screw-In Bonnet
Application: Can be used for oil & petroleum, and water
Standards: BS5154 ISO228
|
Application:
1.Chemical industry;
2.Metallurgy;
3.Power;
4.Paper-making;
5.Pharmacy;
6.Food;
7.Water-treatment.
2.Metallurgy;
3.Power;
4.Paper-making;
5.Pharmacy;
6.Food;
7.Water-treatment.
