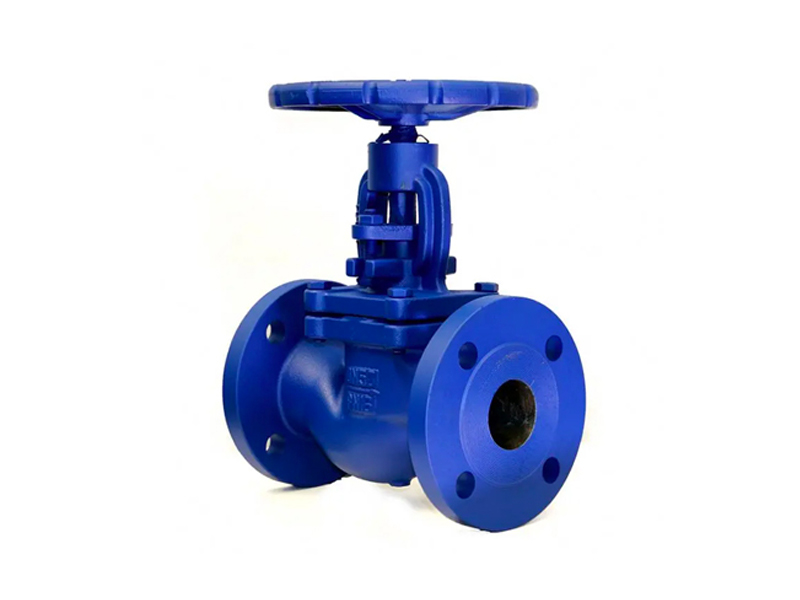

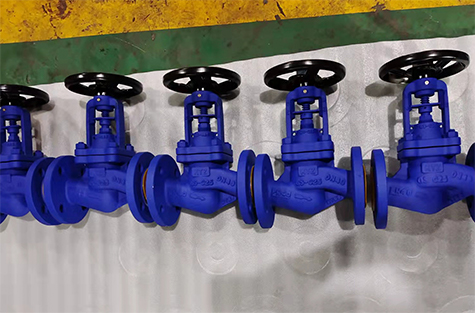

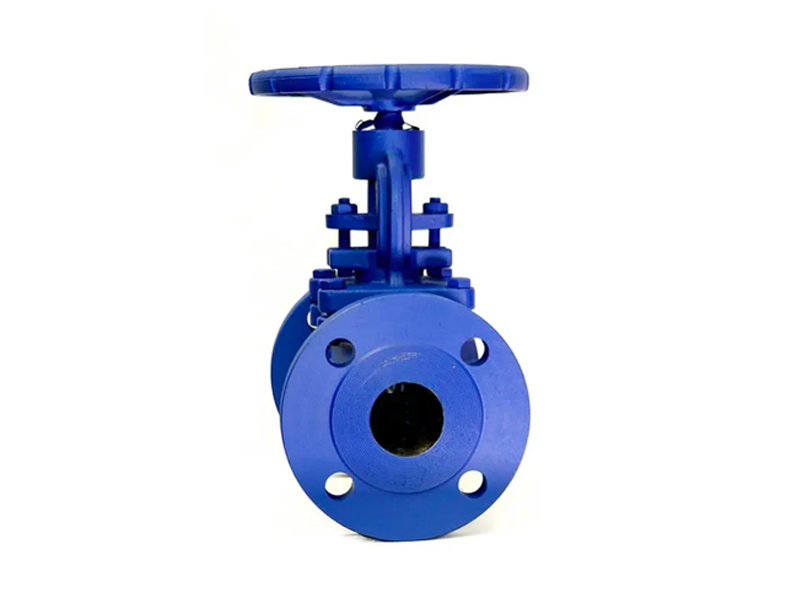

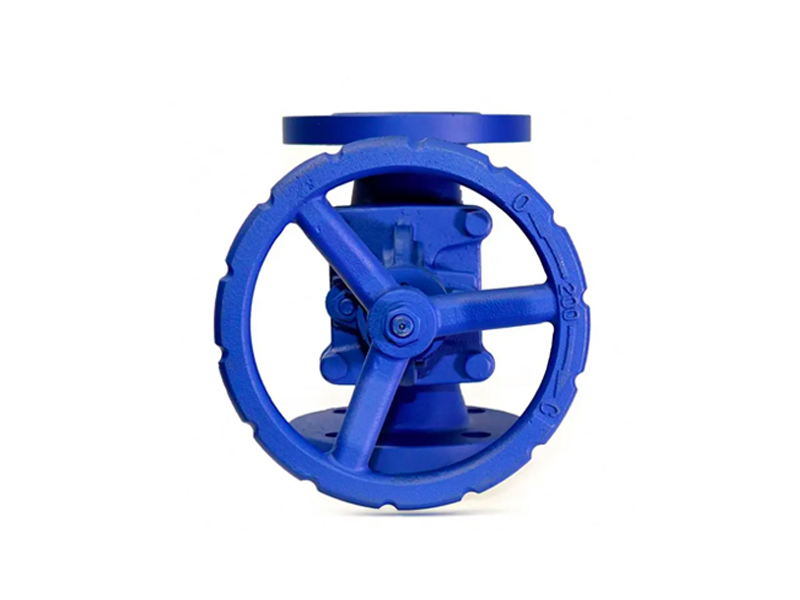

Bellows Globe Valve

Features: Size Range: DN15-DN400
Pressure: PN16/25/40
Materials: Gs-c25 SS304  SS316
Design Standard: DIN EN13709-2003
Inspection Standard: DIN EN12266:2003
Application medium: Water,Oil,Gas etc.
Application Temperature: -29℃~425℃

We're here to help:
Easy ways to get the answers you need.

  • Parameter
  • Standards&Features
  • Case
  • Application
  • Inquiry

Parameter:

Product Identification:

Bellows globe valve also called bellows seal globe valve. Through automatic roll welding, a metal barrier is formed between the fluid medium and the atmosphere to ensure the stem is designed for zero leakage.

The inner parts of bellows globe valve adopts bellows structure  and the lower end of the stainless steel bellows is welded to the stem to prevent the  fluid  eroding the stem. The other end is placed between the valve body and the valve cover to form a static seal. The double sealing design will avoid leakage if the bellows fails and the stem packing will also avoid leakage. The bellows is welded to the valve stem to maintain stable operating performance and avoid valve stem vibration caused by valve plug vibration. It is most suitable for pipelines with steam, flammable, explosive, heat transfer oil, high purity, toxic and other media.


Dimensioin

SIZE



DN

NPS

L

φD

φD0

φD1

g

n*d

15

1/2''

130

95

65

45

16

4*14

20

3/4''

150

105

75

58

18

4*14

25

1''

160

115

85

68

18

4*14

32

1 1/4''

180

140

100

78

18

4*18

40

1 1/2''

200

150

110

88

18

4*18

50

2''

230

165

125

102

18

4*18

65

2  1/2''

290

185

145

122

18

4*18

80

3''

310

200

160

138

20

8*18

100

4''

350

220

180

158

20

8*18

125

5''

400

250

210

188

22

8*18

150

6''

480

285

240

212

22

8*22

200

8''

600

340

295

268

24

12*22

250

10''

730

405

355

320

26

12*26

300

12''

850

460

410

378

28

12*26

350

14''

980

520

470

428

30

16*26

400

16''

1100

580

525

490

32

16*30


Standards&Features:

Product Advantages:

1. Precision casting valve body. Qualified material. Fine appearance, no sand hole.

2. The inner part is processed by CNC lathe. Twice polish will ensure sealing performance.

3. Heavy type body.

4. Cr13 seat, better wear-resisting and sealing performance.

5. Between cover and stem contact surface with inverted seal treatment to avoid leakage.

6. SS304 Bellows.

7. Each valve will be tested shell and sealing as per related standard before leaving factory.
Parameters

Parameter Information

Executive standard

Name

Design

Face to face length

Pressure Test

Reference
standard

DIN EN 13709

DIN EN 558-1

DIN EN 1092-1

DIN EN 12266

Material of Main Parts:

Name

1-Body

2-Disc

3-Shaft

7-Bellows

Material

WCB/CF8

A105+13Cr/CF8

2Cr13/304

304

Case:

Project Name: Zimbabwe LPG Project

Customer Name: A customer in Zimbabwe

Main products: API valves and fittings

Customer demand: used for oil project

Project pictures:

project description:

WESDOM valves are applied in Zimbabwe LPG project.

The high quality products won praise from customers!

client feedback:

We received the goods in good condition. They are so nice keep it up.



Application:

Applied projects:

Petrochemical

Chemical fiber textile

Plastic paper

Electric power steel

Printing and dyeing rubber

Natural gas

Other gas systems

Please fill in your procurement needs and contact information
