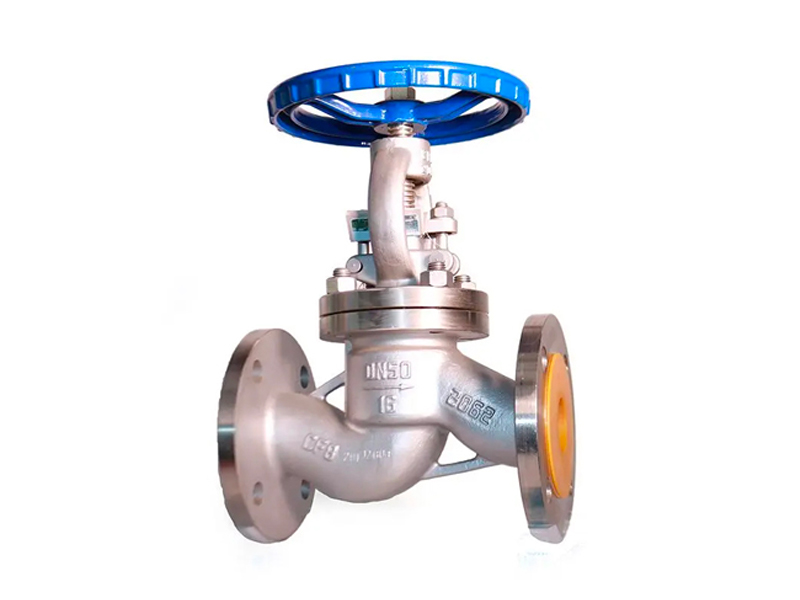

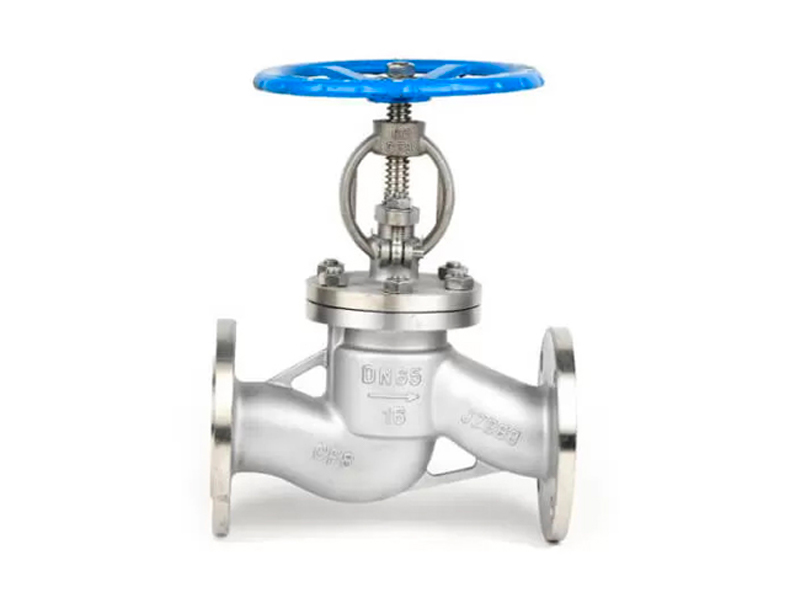

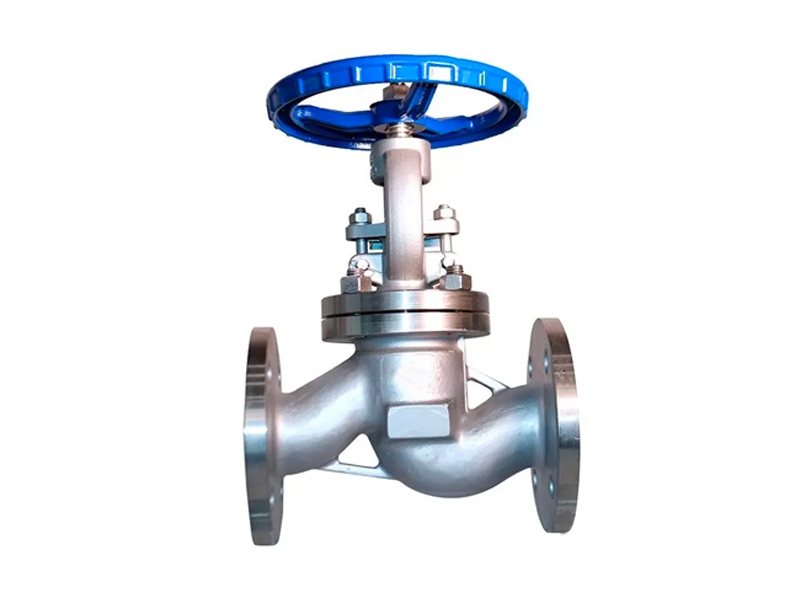

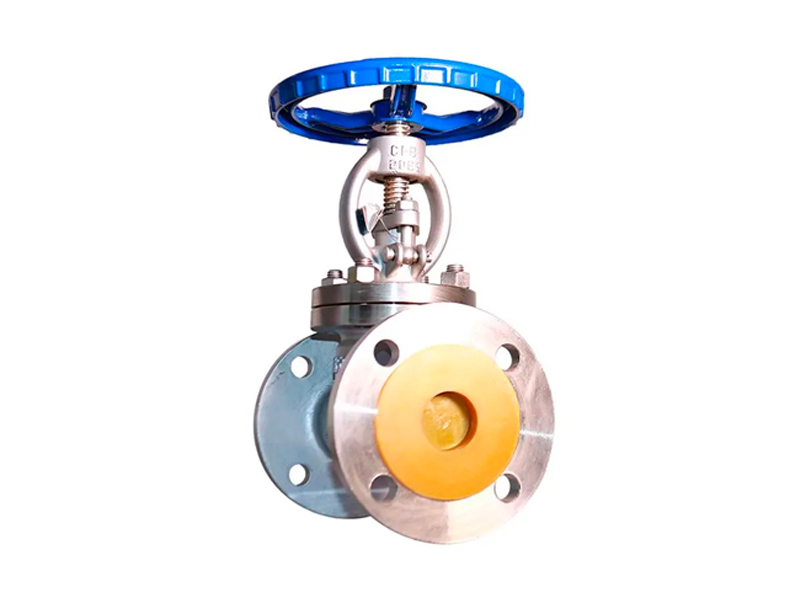

Stainless steel flange globe valve
Features:
Size Range: DN50-DN300
Pressure: PN16/150LB
Materials: SS304/CF3/ CF3M/CF8/CF8M
Design Standard: API623,BS1873,GB/T12235,JISB2071
Inspection Standard: API598,EN12266,JISB2003
Application medium: Water, weak corrosive medium, etc.
Application Temperature: 0-325℃
We're here to help:
Easy ways to get the answers you need.

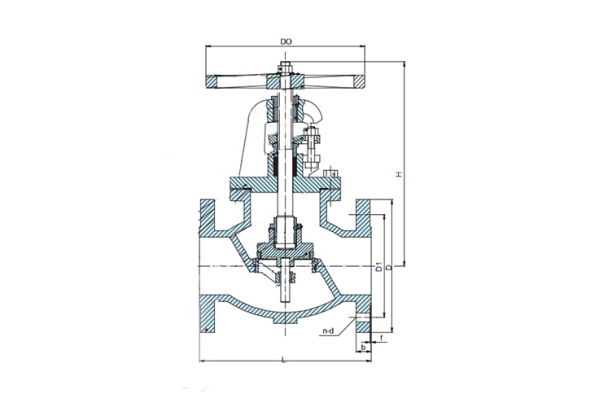

Parameter:
|
Size |
PN16 |
150LB |
|||||||
|
DN |
NPS（inch） |
L |
D |
D1 |
Z-φd |
L |
D |
D1 |
Z-φd |
|
50 |
2'' |
230 |
160 |
125 |
4-18 |
203 |
152 |
120.5 |
4-19 |
|
65 |
2 1/2'' |
290 |
180 |
145 |
4-18 |
216 |
178 |
139.5 |
4-19 |
|
80 |
3'' |
310 |
195 |
160 |
8-18 |
241 |
190 |
152.5 |
4-19 |
|
100 |
4'' |
350 |
215 |
180 |
8-18 |
292 |
229 |
190.5 |
8-19 |
|
125 |
5'' |
400 |
245 |
210 |
8-18 |
356 |
254 |
216 |
8-22 |
|
150 |
6'' |
480 |
280 |
240 |
8-22 |
406 |
279 |
241.5 |
8-22 |
|
200 |
8'' |
600 |
335 |
295 |
12-22 |
495 |
343 |
298.5 |
8-22 |
|
250 |
10'' |
650 |
405 |
355 |
12-26 |
622 |
406 |
362 |
12-25 |
|
300 |
12'' |
750 |
460 |
410 |
12-26 |
698 |
483 |
432 |
12-25 |
Standards&Features:
1. Precision casting valve body,2 shot blasting treatment,smooth appearance, no trachoma.
2. CNC lathe processing of internal parts
3. Heavy type valve body.
4. Inverted seal treatment of contact surface between bonnet and stem to avoid leakage.
5. Each valve body is pickled and passivated to make the casting uniform and bright and improve corrosion resistance
6. Each valve will be inspected for shell and seal pressure before leaving factory.
Parameters
|
Optional |
Body |
Seat Seal |
Disc |
Stem |
Actuator |
Pressure |
|
CF3/ CF3M/CF8/ CF8M |
stainless steel / alloy steel |
CF3/ CF3M/CF8/CF8M |
2Cr13/ 304/316 |
Handwheel/ |
PN16/PN25/PN40/150LB |
|
Name |
Design and manufacture |
Face to face Length |
Pressure Test |
Connection Flange |
|
Reference |
GB/T 12235 |
GB/T 12221 |
GB/T 13927 |
JB/T 79 |
|
Name |
Body |
Disc |
Stem |
Seat Seal |
Handwheel |
|
Material |
304 |
304 |
304 |
304 |
DI |
