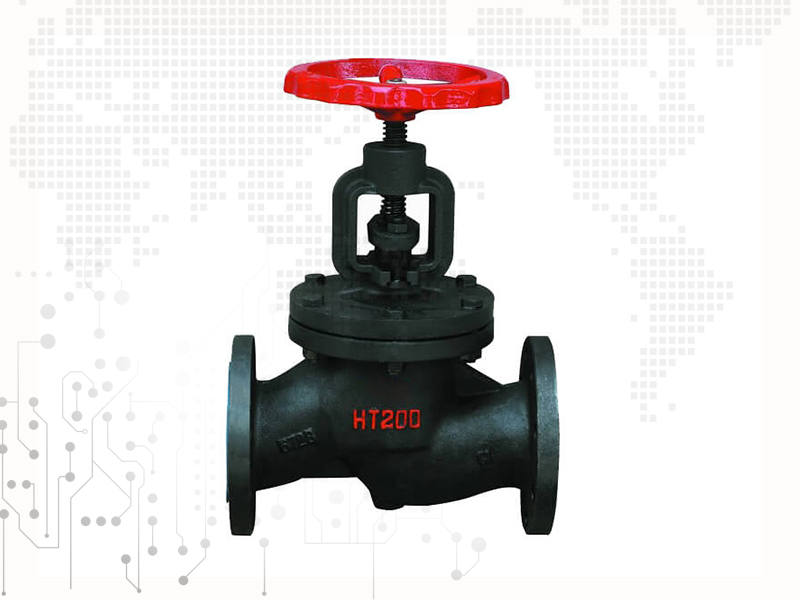

HT200 Globe Valve
Features:
Nominal pressure (MPa): 1.6MPa
Strength(Water) (MPa): 2.4MPa
Enclose(Water) (MPa): 1.8MPa
Suitable temperature (℃): ≤200℃ ≤150℃ ≤80℃
Suitable medium: Water,vapour,oil
We're here to help:
Easy ways to get the answers you need.
Parameter:
;
| Type | DN(mm) | Measurement(mm) | |||||||
| L | D | D1 | D2 | b-f | z-Φd | H | Do | ||
| J41T/W/H/F-16 | 15 | 130 | 95 | 65 | 45 | 14﹣2 | 4﹣Φ14 | (113)200 | 80 |
| 20 | 150 | 105 | 75 | 55 | 16﹣2 | 4﹣Φ14 | (113)200 | 80 | |
| 25 | 160 | 115 | 85 | 65 | 16﹣2 | 4﹣Φ14 | (125)220 | 80 | |
| 32 | 180 | 135 | 100 | 78 | 18﹣2 | 4﹣Φ18 | (145)245 | 100 | |
| 40 | 200 | 145 | 110 | 85 | 18﹣3 | 4﹣Φ18 | (180)260 | 130 | |
| 50 | 230 | 160 | 125 | 100 | 20﹣3 | 4﹣Φ18 | (200)285 | 130 | |
| 65 | 290 | 180 | 145 | 120 | 20﹣3 | 4﹣Φ18 | (205)300 | 150 | |
| 80 | 310 | 195 | 160 | 135 | 22﹣3 | 8﹣Φ18 | 330 | 240 | |
| 100 | 350 | 215 | 180 | 155 | 24﹣3 | 8﹣Φ18 | 350 | 240 | |
| 125 | 400 | 245 | 210 | 185 | 26﹣3 | 8﹣Φ18 | 405 | 300 | |
| 150 | 480 | 280 | 240 | 210 | 28﹣3 | 8﹣Φ23 | 450 | 300 | |
| 200 | 600 | 335 | 295 | 265 | 30﹣3 | 12﹣Φ23 | 520 | 380 | |
| 250 | 650 | 405 | 355 | 320 | 32﹣3 | 12﹣Φ25 | 710 | 420 | |
Standards&Features:
|
Parts ;name |
Material |
|||
|
J41T-16 |
J41W-16 |
J41H-16 |
J41F-16 |
|
|
Disc |
Grey ;iron+Brass |
Grey ;iron |
Grey ;iron+Stainless ;steel |
Grey ;iron+PTFE |
|
Valve ;body、Bonnet |
Grey ;iron |
Grey ;iron |
Grey ;iron |
Grey ;iron |
|
Stem |
Carton ;steel,Stainless ;steel |
Carton ;steel,Stainless ;steel |
Carton ;steel,Stainless ;steel |
Carton ;steel,Stainless ;steel |
|
Yoke ;nut |
Brass ;(Grey ;iron) |
Brass ;(Grey ;iron) |
Brass ;(Grey ;iron) |
Brass ;(Grey ;iron) |
|
Hand ;wheel |
Grey ;iron |
Grey ;iron |
Grey ;iron |
Grey ;iron |
| Type | Nominal pressure ;(MPa) | Testing pressure | Suitable temperature ;(℃) | Suitable medium | |
| Strength(Water) (MPa) | Enclose(Water) (MPa) | ||||
| J41T-16 J11T-16 |
1.6 | 2.4 | 1.8 | ≤200 | Vapour,water |
| J41W-16 J11W-16 |
≤100 | Oil | |||
| J41H-16 J11H-16 |
≤200 | Water,vapour,oil | |||
| J41F-16 J11F-16 |
≤150 | Water,vapour,oil | |||
| J11X-16 | ≤80 | Water | |||
Case:
1.Simple structures.Easier to be manufactured and repaired.
2.Small working stroke,short opening and closing time.
3.Good sealing performance,small friction between sealing face and life long.
4.The friction between sealing face is smaller than gate valve during the process of opening and closing.And it’s wear-resistant.
5.It usually have only one sealing face,good manufacturing process and easy to be repaired.
6.The structure style of globe valve’s body can be divided into straight-through, three-and right-angle type.
Application:
1.Chemical industry;
2.Metallurgy;
3.Power;
4.Paper-making;
5.Pharmacy;
6.Food;
7.Water-treatment.
