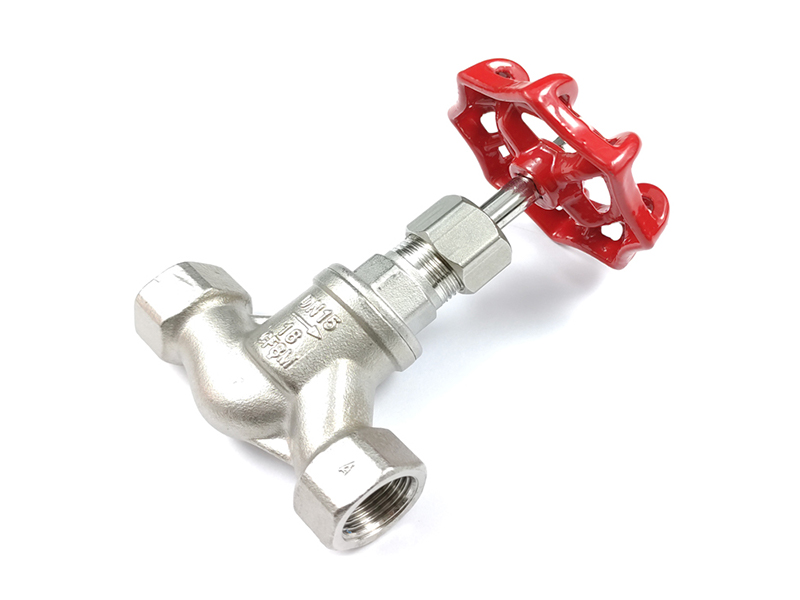

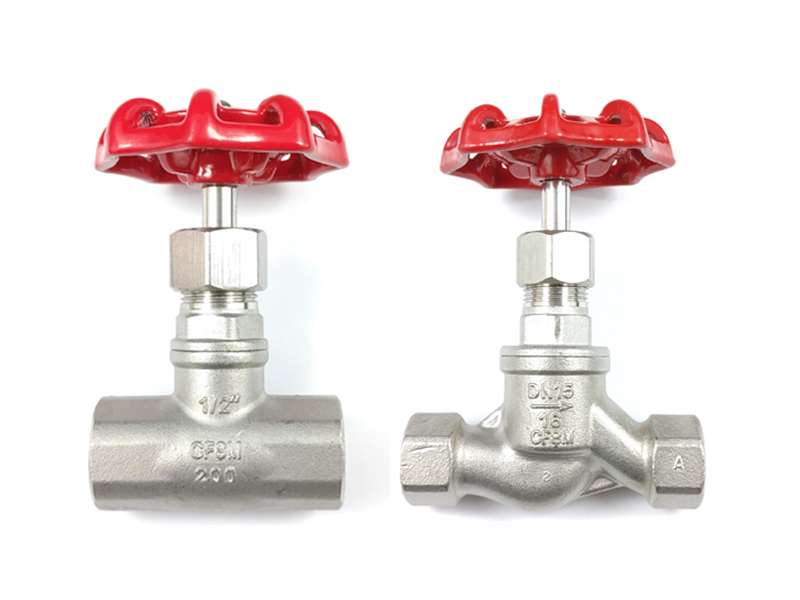

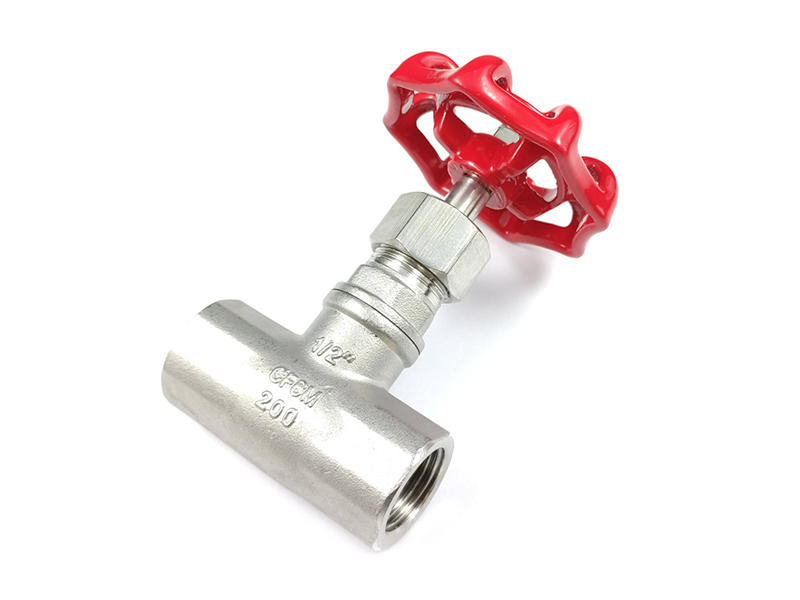

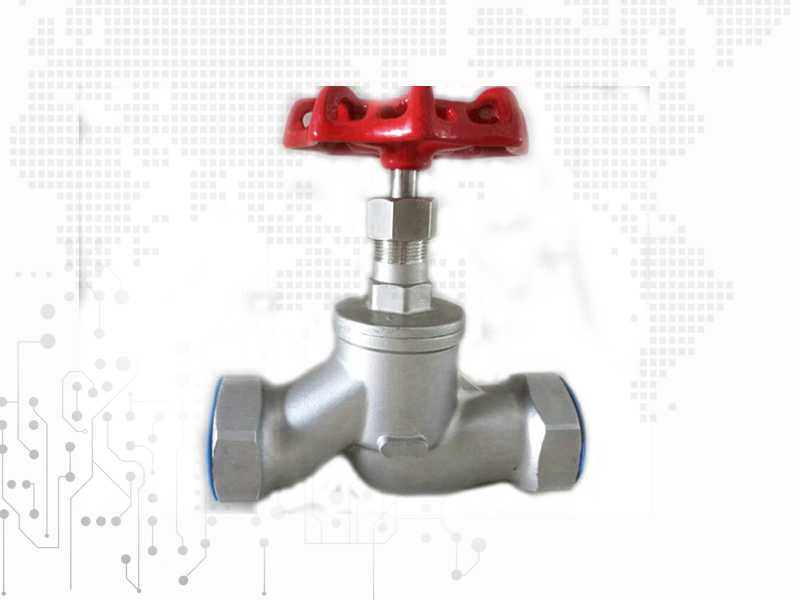

Threaded Stainless Steel Globe Valve
Features:
Nominal pressure: 1.6MPa
Suitable temperature -20℃-350℃
Suitable medium Water,oil and some corrosive liqid
Thread type G.NPT.BSPT.BSP.DIN259/2999
We're here to help:
Easy ways to get the answers you need.
Parameter:

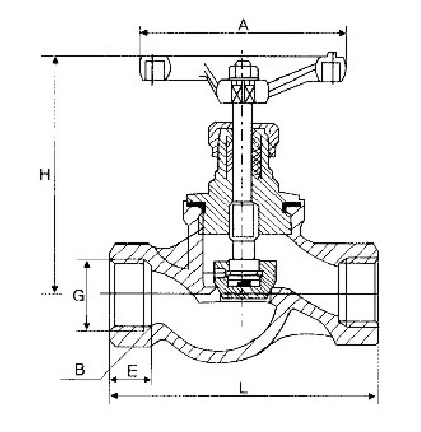

| Outline and connect measurement | |||||||
| DN（mm） | G | L | E | B | H | A | KG |
| 15 | 1/2 | 90 | 14 | 32 | 109 | 70 | 0.9 |
| 20 | 3/4 | 100 | 16 | 36 | 109 | 70 | 1.1 |
| 25 | 1 | 120 | 18 | 46 | 132 | 80 | 1.8 |
| 32 | 1 1/4 | 140 | 20 | 55 | 156 | 90 | 2.5 |
| 40 | 1 1/2 | 170 | 22 | 65 | 167 | 100 | 3.7 |
| 50 | 2 | 200 | 24 | 85 | 182 | 120 | 5.5 |
| 65 | 2 1/2 | 263 | 26 | 98 | 200 | 140 | 9.3 |
| Function and specification | ||||||||||
| Type | Nominal pressure (MPa) |
Testing pressure | Suitable tempetature (℃） | Suitable medium | ||||||
| Strength(water) (MPa) |
Enclose(water) (MPa) |
|||||||||
| J11T-10 | 1.0 | 1.5 | 1.1 | ≤200 | Vapour,water | |||||
| J11W-10 | ≤100 | Oil | ||||||||
| J11T-16 | 1.6 | 2.4 | 1.8 | ≤200 | Vapour,water | |||||
| J11W-16 | ≤100 | Oil | ||||||||
Standards&Features:
Product Advantages:
1. The material meets the national standard.
2. All valve body and parts are processed by CNC machines to make sure processing accuracy.
3. After pressure test, each valve is sprayed with anti-rust oil to ensure long-term storage of the valve, and the cleanliness of the inner cavity reaches the JB/T7748 standard;
4. Each valve is tested pressure as per national standards.
5. Each valve use waterline blocking protection to avoid the damage of connecting surface during transportation.
6. G thread, NPT thread, BSP and other customized thread can be provided according to customer needs.
|
Name |
Design and manufacture |
Pressure Test |
|
Reference standard |
GB/T 12235 |
GB/T 13927 |
Case:
| Main parts and materials | |||||||
| Parts name | J11W-16C | J11W-16P | J11W-16R | ||||
| Body | WCB | ZG1Cr18N9Ti 304.CFB |
ZG1Cr18N9Ti12 Mo2Ti 316.CF8M |
||||
| Bonnet | 1Cr18N9Ti 304 |
1Cr18N9Ti 304 |
1Cr18N9Ti12Mo2Ti 316 |
||||
| Stem | 1Cr18N9Ti 304 |
1Cr18N9Ti 304 |
1Cr18N9Ti12Mo2Ti 316 |
||||
| Sealing | PTFE | ||||||
| Packing | PTFE | ||||||
| Application Norm | |||||||
| Nominal pressure | 1.6MPa | ||||||
| Suitable temperature | -20℃-350℃ | ||||||
| Suitable medium | Water,oil and some corrosive liqid | ||||||
| Thread type | G.NPT.BSPT.BSP.DIN259/2999 | ||||||
Application:
1.Oil refining
2.The long pipeline;
3.Chemical
4.Paper;
5.Pharmaceutical;
6.Water;
7.Electricity;
8.Municipal
9.Steel and other industries.
